C & K IP40 Black Tactile Switch Button SPST 50mA 12V DC Through Hole

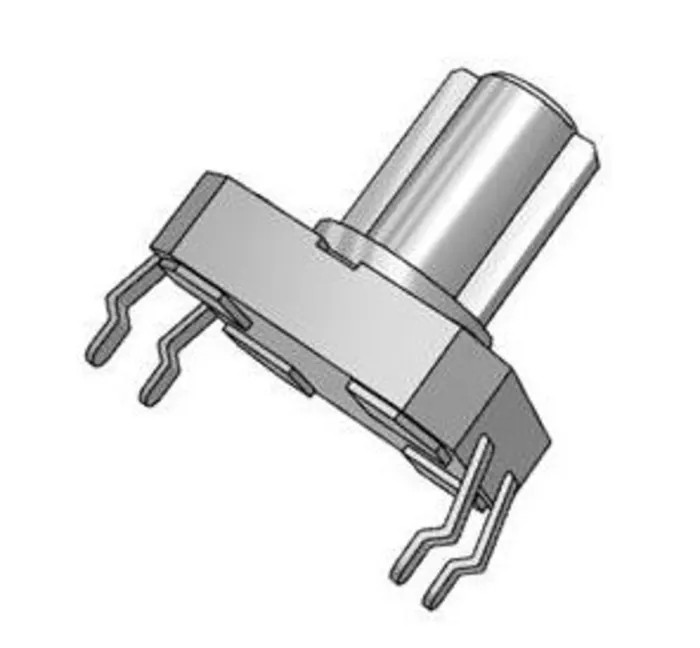

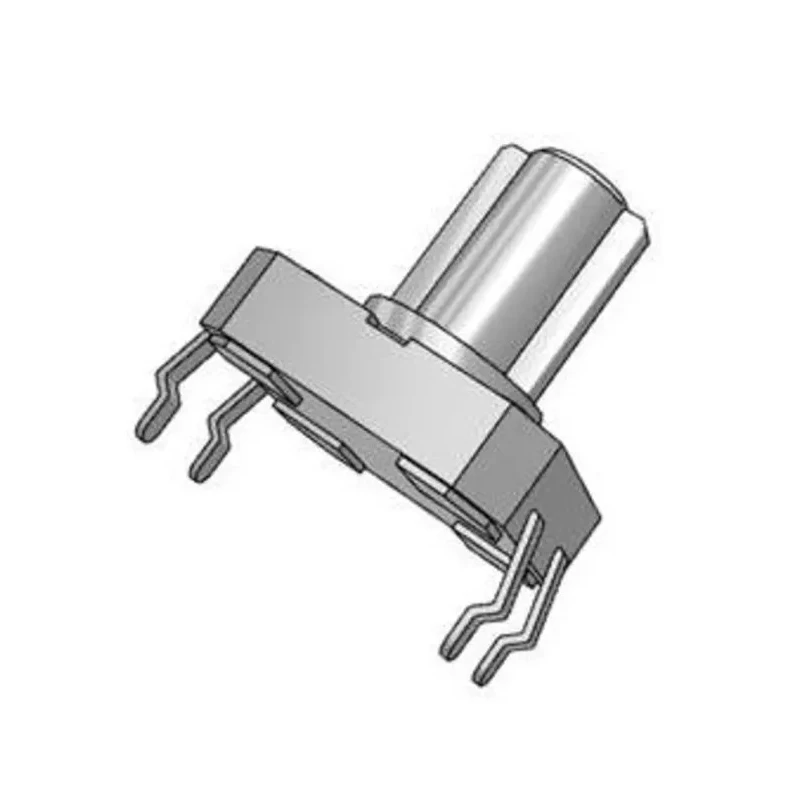

C & K PTS125SM12-2 LFS is a black tactile switch button specifically designed to offer reliable momentary switching action with an SPST (single-pole, single-throw) contact configuration. Rated for a maximum operating current of 50mA at 12V DC, this through-hole mount switch is ideal for various electronic and electrical applications requiring compact, dependable tactile feedback.

Constructed with a button-style actuator in black color and a straight orientation, the switch measures 12mm in length and width with a height of 2mm. It provides a tactile operating force of 1.8N and has a mechanical life capable of withstanding 200,000 cycles. The silver-plated contacts ensure excellent conductivity and durability under frequent operation.

Featuring an IP40 ingress protection rating, the switch is safeguarded against solid objects larger than 1mm, making it appropriate for most indoor environments and equipment. It operates reliably across ambient temperatures from -20°C to 70°C, supporting use in industrial, instrumentation, computer peripherals, consumer products, and automation systems.

The PTS125 series from C & K includes various tactile switches optimized for applications where space limitations exist, available in multiple heights and mechanical forces. This particular model combines proven robustness with compact dimensions and ease of installation through its through-hole terminal type.

Applications of this Tactile Switch include use in instrumentation panels, control boards, computer keyboards, consumer electronics, and prototype development where a momentary tactile input is required.

This switch features an SPST contact configuration suitable for single-pole, single-throw applications. The contact current rating is 50mA making it ideal for low power circuits. It operates within a temperature range of -20°C to 70°C, ensuring reliability in varied environments.

The switch has a compact size of 12mm length and 12mm width with a 2mm height actuator. The actuator is a black button with straight orientation providing tactile feedback on operation. The switch has a mechanical life rating of 200,000 cycles guaranteeing durability.

It features silver plated contacts for optimal conductivity and corrosion resistance. The IP40 rating provides protection against solid objects greater than 1mm, suitable for indoor use. Explore more switches and tactile components in the Electronics & Electricals category at EnvMart for industrial and commercial electronics assembly needs.
