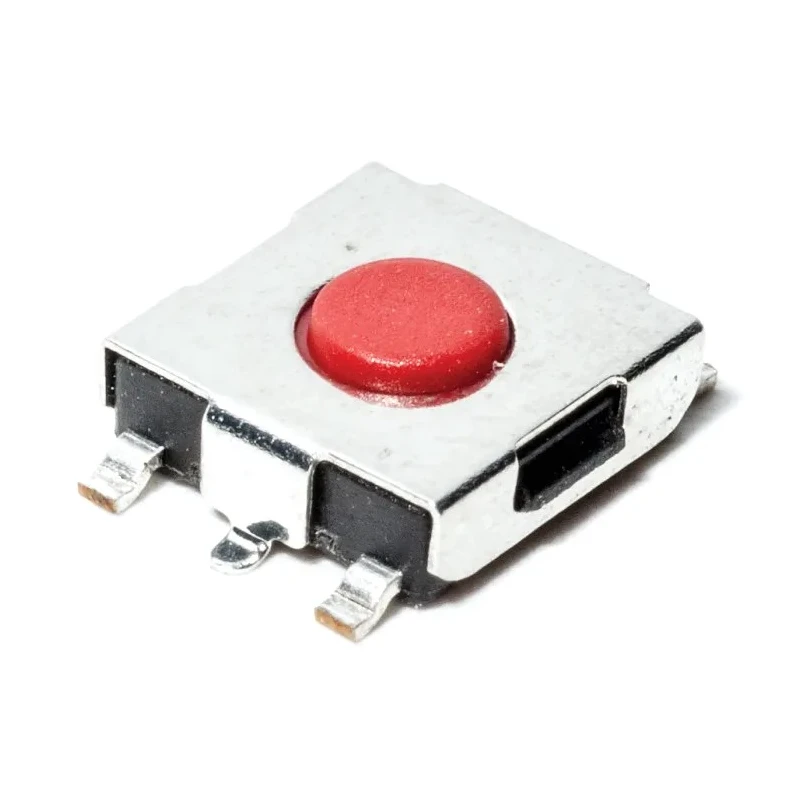

C & K Red Tactile Switch Button SPST 50mA 12V DC Surface Mount IP40

Name: C & K Red Tactile Switch Button SPST 50mA 12V DC Surface Mount IP40
Brand: C & K
SKU: 397739
Price: 35.69 INR
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Height	2mm
Length	6.4mm
Model	IP40
IP Rating	IP40
Width	6.3mm
Mount Type	Surface
Series	PTS
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-20°C
Terminal type	Gull Wing
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Red
Contact DC Voltage	12V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	1.6N
Mechanical Life	200000Cycles

Key Features

Compact footprint of 6.3 x 6.3 mm for easy PCB integration.
Red actuator button provides clear user feedback.
Momentary On-Off operation with straight actuator orientation.
Gull wing terminal type ensures reliable SMT soldering.
Operating temperature range from -20°C to 85°C for wide environmental usage.
Mechanical life rated at 200,000 cycles ensuring long-term durability.
Low operating force at 1.6N for tactile responsiveness.
Silver plated contacts for low contact resistance and reliability.

Product Description

C & K IP40 Red Tactile Switch Button, model PTS641 SM25 SMTR2 LFS, is a new surface mount tactile switch designed for low current switching applications at 50mA and 12V DC. Its compact 6.3 x 6.3 mm footprint and 2 mm height make it suitable for space-constrained electronic designs.

This switch features a momentary On-Off SPST contact arrangement with a red button actuator in straight orientation. The gull wing solder terminals are optimized for surface mount technology, enabling efficient PCB assembly. With a rated mechanical life of 200,000 cycles and low operating force of 1.6N, it offers reliable and tactile switching performance.

The device operates reliably across a temperature range of -20°C to 85°C and conforms to RoHS standards. Its IP40 rating protects against solid objects exceeding 1 mm in size, suitable for indoor environments where dust ingress must be limited.

Applications include use in white goods, metering devices, home automation, and other industrial or commercial electronic equipment requiring compact tactile switches for user input. The switch’s robust construction and color-coded actuator allow for easy identification and integration into a wide range of products.

Compact 6.3 x 6.3 mm surface mount tactile switch. Red button actuator with momentary On-Off SPST configuration. Gull wing terminations for reliable SMT soldering. Operating temperature from -20°C to 85°C. Mechanical life up to 200,000 cycles.

Operating force of 1.6N for tactile feedback. IP40 ingress protection rating. Complies with RoHS standards. Suitable for electronics, automation, and keypad uses.

This C & K Tactile Switch is a reliable component choice for manufacturers and engineers working in electronics assembly and industrial automation. Browse our Electronics & Electricals category for more switching solutions at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch features an SPST (Single Pole Single Throw) contact configuration, allowing for momentary On-Off operation.

It operates reliably within a temperature range of -20°C to 85°C, making it suitable for various environmental conditions.

The mechanical life of this tactile switch is rated at 200,000 cycles, ensuring long-term performance.

The switch has a compact footprint of 6.3 mm in width, 6.4 mm in length, and a height of 2 mm, making it suitable for space-constrained designs.

The operating force for this model is 1.6N, providing tactile feedback during operation.

It features gull wing terminals optimized for surface mount technology, ensuring reliable soldering during PCB assembly.

This model has an IP40 rating, which protects against solid objects larger than 1 mm, making it suitable for indoor environments with limited dust exposure.

Yes, this switch complies with RoHS standards, ensuring it meets environmental regulations regarding hazardous substances.

The actuator button is red, providing clear user feedback during operation.

This tactile switch is rated for a contact DC voltage of 12V and a contact current of 50mA.

It is suitable for use in white goods, metering devices, home automation, and other industrial or commercial electronic equipment requiring compact tactile switches.

The actuator style is a button with a straight orientation, designed for easy integration into electronic devices.
