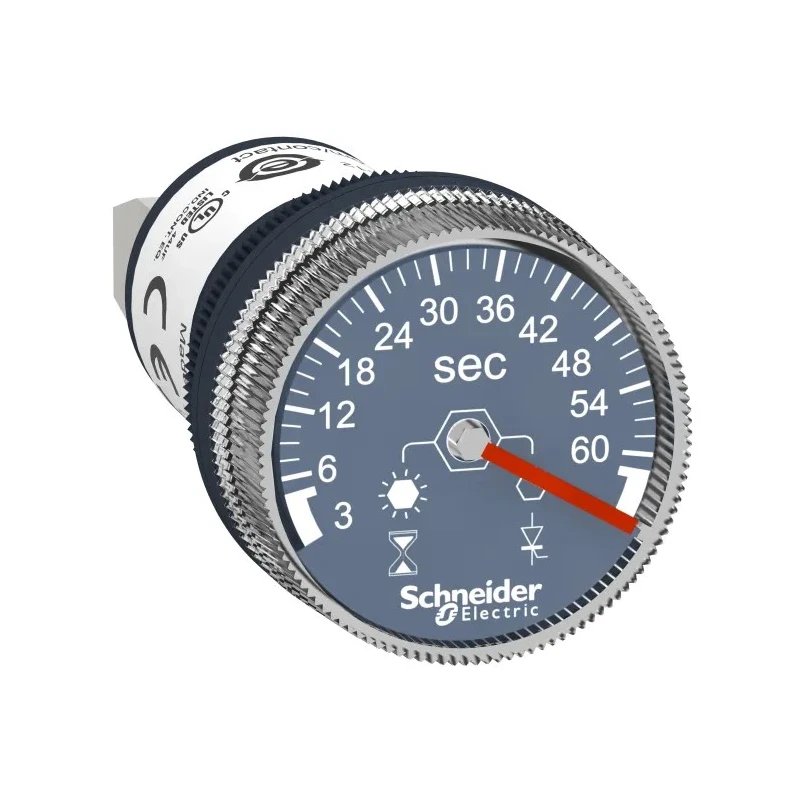

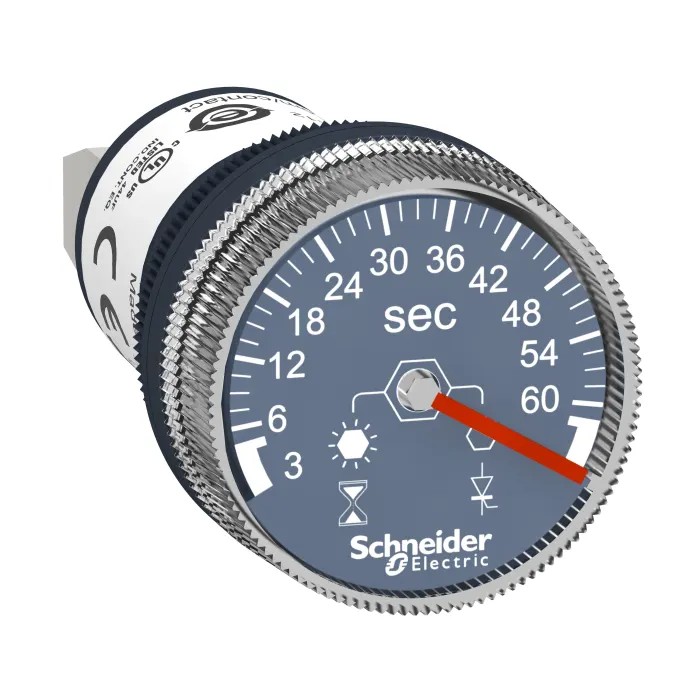

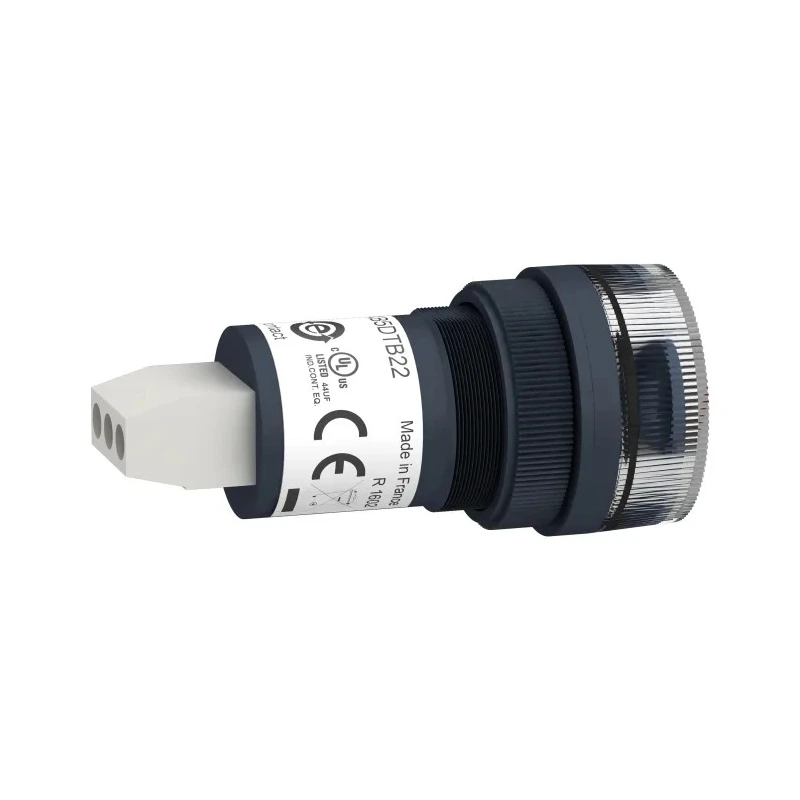

Crouzet Harmony XB5 Series Panel Timer Relay, 100 to 240 V DC/110 V AC/230 V AC, 3 to 60 s, 1-Function, IP65 IP20 XB5DTGM3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crouzet |
| Height | 62mm |
| Function | Offset Double Ring End |
| Length | 62mm |
| Model | XB5DTGM3 |
| IP Rating | IP65, IP20 |
| Width | 90mm |
| Mount Type | Panel |
| Series | Harmony XB5 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Time Range | 3 to 60 s |
| Terminal type | Screw |
| Standards/Approvals | UL 508, UL Listed, EN/IEC 61812-1, CE |
| Better World Claim | Repairable by the End User |
| Number of Timer Functions | 1 |
| Supply DC Voltage | 100 to 240 V dc |
| Supply AC Voltage | 110, 230V ac |
| Crouzet Panel Mount Timer Relay, 100 → 240V ac/dc, 3 → 60s, 1-FunctionBrand | Crouzet |
Key Features
- Panel mount design with 22.5 mm mounting hole for easy installation.
- Equipped with offset double ring end function for precise timing control.
- Visual timing indication via LED indicator ensures process visibility.
- Screw terminal connections ensure reliable wiring and electrical contact.
- Wide operating temperature range from -20°C to 60°C for durability.
- Compliance with UL 508, UL Listed, EN/IEC 61812-1, and CE standards guarantees safety and quality.
- Impact, dust, water, and vibration resistant for harsh industrial environments.
- Repairable by the end user to support sustainability and reduce downtime.
Product Description
Schneider Electric XB5DTGM3 is a Harmony XB5 series panel timer relay designed for precision timing control in industrial and automation applications. This monolithic analog timer supports timing intervals adjustable between 3 to 60 seconds and is powered by a versatile supply voltage range of 100 to 240 V DC or 110/230 V AC.
The panel mount timer features a 22.5 mm diameter cut-out mounting hole, enabling easy integration into control panels. It incorporates an offset double ring end function providing accurate timing control with visual indication through an LED for easy process monitoring.
Robust construction with IP65 and IP20 ratings ensures protection against dust, water, and vibrations, making it suitable for harsh environments such as manufacturing, industrial automation, and electrical distribution systems. Screw terminal connections facilitate secure and efficient wiring.
Designed to operate reliably within a temperature range of -20°C to 60°C, the timer adheres to stringent standards including UL 508, UL Listed, EN/IEC 61812-1, and CE certification, guaranteeing product safety and compliance.
Panel mount with standardized 22.5 mm mounting hole and screw terminals. Offset double ring end timer function for precise timing adjustment. Operating voltage range: 100 to 240 V DC and 110/230 V AC. Timing range adjustable between 3 to 60 seconds.
Protection rating IP65 and IP20 for dust and water resistance. Operating temperature from -20°C to 60°C ensuring durability. Compact dimensions: 62 mm height, 62 mm length, 90 mm width. Compliant with UL 508, EN/IEC 61812-1, CE for industrial use.
Repairable by end user supporting sustainability and maintenance.
This timer relay is ideal for industrial automation, electrical panels, control gear, and signal conditioning applications demanding reliable and repeatable timing functions. Its durable build and robust protection ratings make it suitable for use in various industrial, manufacturing, and electrical distribution settings.
Explore EnvMart’s wide range of Timer Relays and Schneider Electric automation products to enhance your automation and control systems with trusted industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timing range of this model is adjustable between 3 to 60 seconds.
It operates on a supply voltage range of 100 to 240 V DC or 110/230 V AC.
This unit has dimensions of 62 mm in height, 62 mm in length, and 90 mm in width.
The timer relay has an IP65 and IP20 rating, providing protection against dust and water.
It features an offset double ring end function for precise timing control.
It utilizes screw terminal connections for reliable wiring and electrical contact.
The operating temperature range is from -20°C to 60°C.
It complies with UL 508, is UL Listed, and adheres to EN/IEC 61812-1 and CE standards.
This model is designed for panel mounting with a 22.5 mm cut-out hole.
Yes, it is designed to be repairable by the end user to support sustainability.
It is suitable for industrial automation, electrical panels, and signal conditioning applications.
This timer relay supports one timer function.
