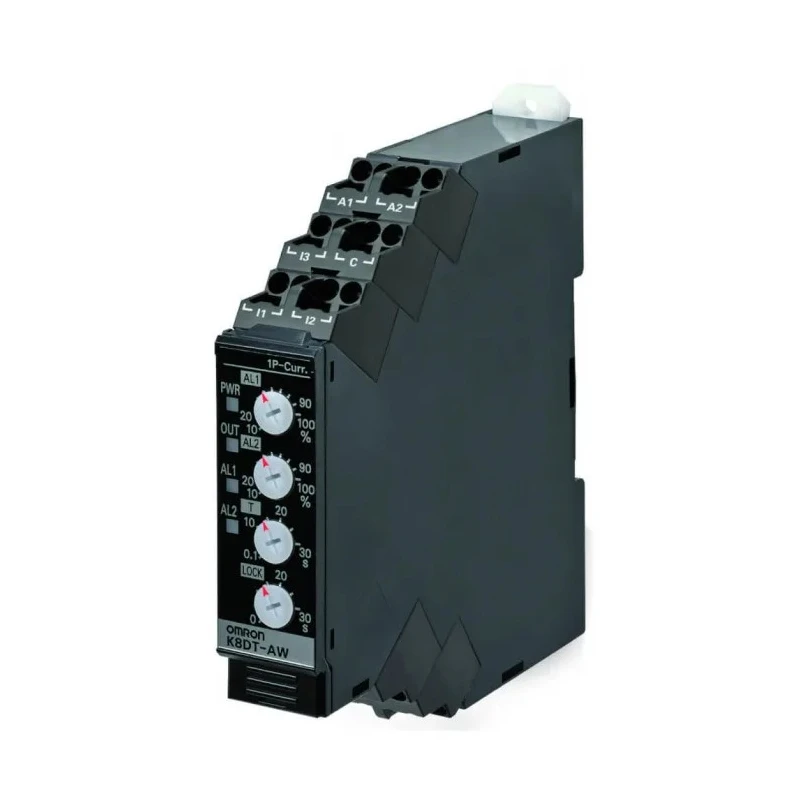

Omron Monitoring Relay 1 Phase SPST DIN Rail 240V AC 0.1A to 5A Current Sensitivity K8DT-AW2TA

The Omron K8DT-AW2TA Monitoring Relay is a high-precision device engineered for electrical and automation control applications that require single-phase current monitoring. It operates at a supply voltage of 240V AC and is designed to detect both overcurrent and undercurrent conditions in industrial and commercial systems.

Featuring a single pole single throw (SPST) contact configuration, this relay provides clear and dependable switching signals. Its small sensing current capability from 0.1A up to 5A offers precise protection against motor stall, load loss, and irregular current flow in single-phase electrical circuits.

The relay is mounted on standard DIN rails, simplifying integration into existing control panel setups. Push-in terminals facilitate quick connection and maintenance, reducing downtime during installation or servicing.

With an IP20 enclosure rating, the device is intended for protected indoor environments such as industrial control cabinets and automation equipment rooms. The 250 ms time delay feature prevents false tripping caused by short-lived current transients, improving overall system stability.

This model adheres to international safety and quality standards EN 60947-5-1 and UL 60947-5-1, and complies with RoHS directives ensuring environmental safety. The relay functions accurately over a temperature range of -20°C to 60°C, suitable for diverse operational settings.

Monitors single-phase currents from 0.1A to 5A with overcurrent and undercurrent detection. SPST contact provides reliable switching functionality. DIN rail mounting enables efficient setup inside control enclosures. Push-in terminals ensure rapid and secure wiring connections.

250 ms time delay reduces nuisance trips from transient currents. Low power consumption of 2.5 VA minimizes electrical load. IP20 rated for installation in protected indoor environments. Compliant with EN 60947-5-1, UL 60947-5-1, and RoHS standards.

Wide operating temperature range from -20°C to 60°C enhances adaptability.

Ideal for motor protection, load loss detection, and monitoring in single-phase distribution circuits. This relay is widely used in industrial automation, electrical control panels, HVAC systems, water treatment plants, and manufacturing environments.
