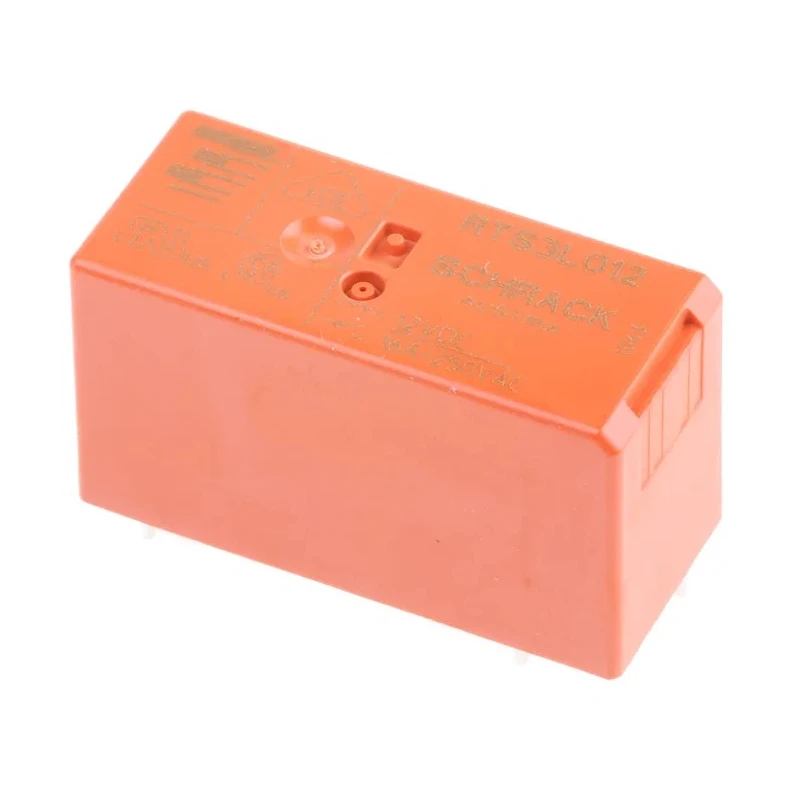

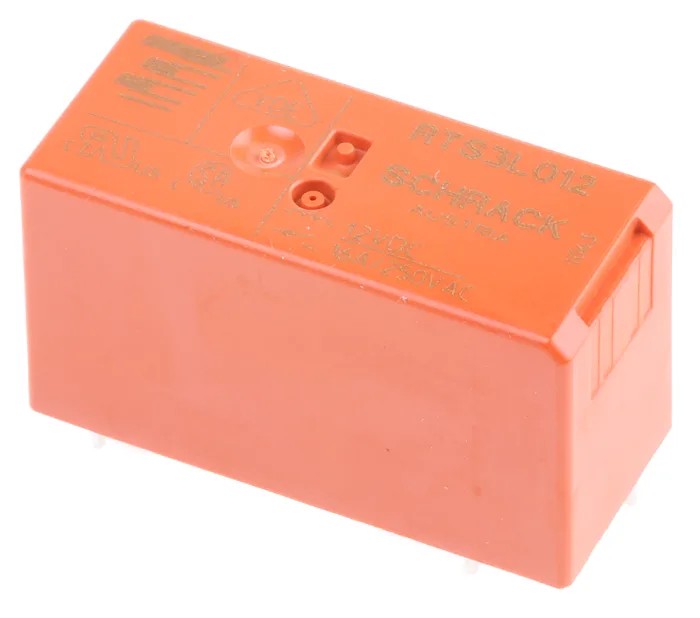

TE Connectivity RT-iPower Series PCB Power Relay 12V dc Coil 16A Switching Current SPST RTS3L012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 16mm |
| Length | 29mm |
| Model | RTS3L012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT-iPower |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- The relay features a SPST contact configuration suitable for single-pole switching.
- It belongs to the RT-iPower series with silver alloy contact material ensuring durability and reliable conductivity.
- Operating temperature ranges from -40°C to 85°C for extended environmental resilience.
- Coil resistance is measured at 360 ohms, consuming 400mW power for coil operation.

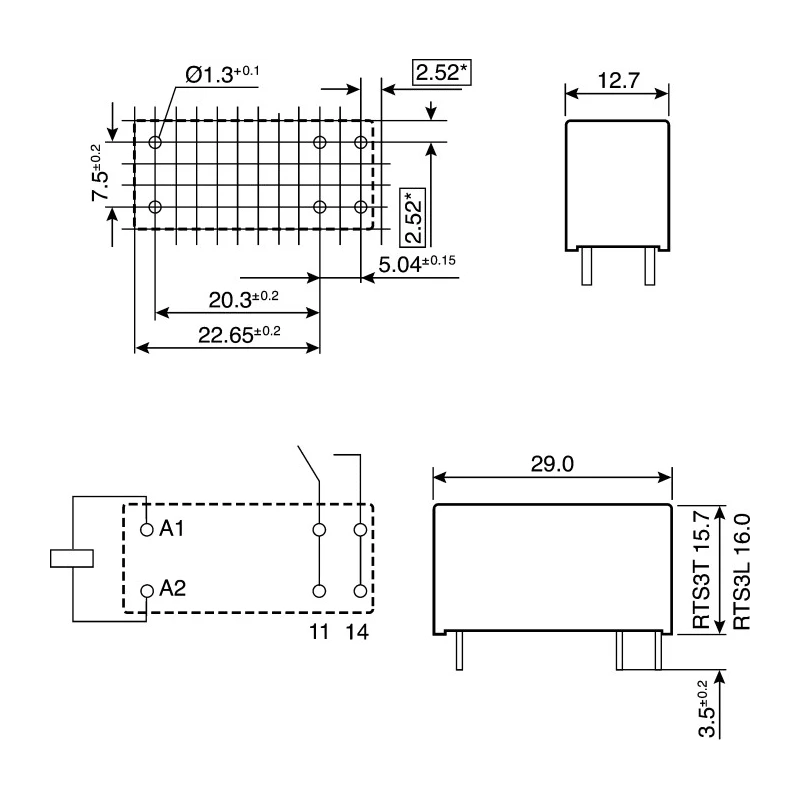

- Compact dimensions of 29mm length, 16mm height, and 12.7mm width facilitate PCB integration.
- Designed for electrical and automation applications requiring reinforced insulation and compliance with IEC 60669-1 standards.
- Suitable for use in lighting systems, movement sensors, incandescent lamp loads, and motors.
- Compliance with RoHS and approvals from UL, CSA, and VDE underline quality and safety adherence.
Product Description
TE Connectivity RTS3L012 is a high-performance PCB Power Relay featuring a 12V dc coil with a 16A switching current capacity. It is configured as a SPST type relay with solder terminals, designed to mount directly onto printed circuit boards for seamless integration. This relay is part of the RT-iPower series, known for high inrush capability and reliable switching for industrial and commercial applications.
With reinforced insulation and a creepage and clearance distance of 10mm, the RTS3L012 ensures electrical safety and durability in demanding environments. The relay’s silver alloy contacts provide excellent conductivity and resistance to wear, while its coil resistance of 360 ohms and coil power of 400mW optimize energy consumption.
The relay operates effectively in temperature extremes from -40°C to 85°C, making it suitable for a wide range of environments. Its compact form factor, measuring 29mm in length, 16mm in height, and 12.7mm in width, facilitates space-saving designs on PCBs. The switching AC voltage rating is 400V ac, and the relay meets international standards including RoHS compliance, UL, CSA, and VDE approvals.
Typical applications include lighting control systems, movement detection sensors, filament and incandescent lamp loads, and motor switching. Its 16A making and breaking capacity per IEC 60669-1 ensures robust performance in power relay roles within industrial automation, electrical equipment, and HVAC controls.
The relay features a SPST contact configuration suitable for single-pole switching. It belongs to the RT-iPower series with silver alloy contact material ensuring durability and reliable conductivity. Operating temperature ranges from -40°C to 85°C for extended environmental resilience.
Coil resistance is measured at 360 ohms, consuming 400mW power for coil operation. Compact dimensions of 29mm length, 16mm height, and 12.7mm width facilitate PCB integration. Designed for electrical and automation applications requiring reinforced insulation and compliance with IEC 60669-1 standards.
Suitable for use in lighting systems, movement sensors, incandescent lamp loads, and motors. Compliance with RoHS and approvals from UL, CSA, and VDE underline quality and safety adherence. Explore more reliable Power Relay solutions at EnvMart for various industrial, laboratory, and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 16A, making it suitable for various electrical applications.
The coil voltage for this model is 12V dc, which is required for its operation.
This relay measures 29mm in length, 16mm in height, and 12.7mm in width, allowing for compact PCB integration.
The maximum operating temperature for this relay is 85°C, enabling it to function in a wide range of environments.
It features a SPST (Single Pole Single Throw) contact configuration, suitable for single-pole switching applications.
The coil resistance of this relay is 360 ohms, which affects its power consumption during operation.
The switching AC voltage rating for this relay is 400V ac, making it suitable for various electrical loads.
The power consumption of the coil is 400mW, which is necessary for its operation at the specified coil voltage.
This relay complies with RoHS standards and has approvals from UL, CSA, and VDE, ensuring quality and safety.
The contacts of this relay are made from silver alloy, providing reliable conductivity and durability.
The relay is designed for PCB mounting with solder terminals, facilitating easy integration onto printed circuit boards.
