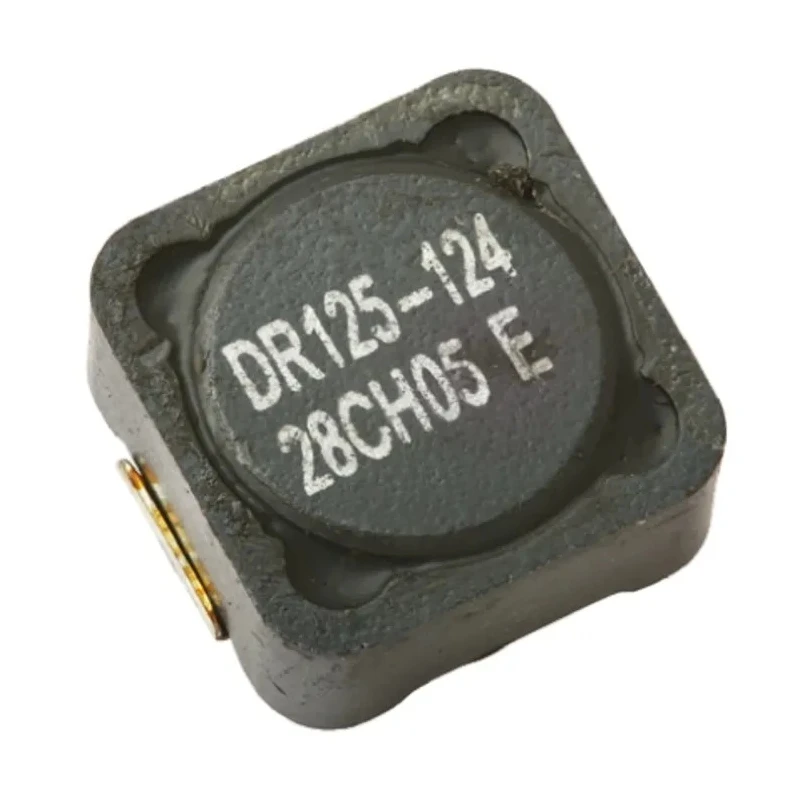

Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±20 % 2.2 A IDC DR125-101-R

Free Delivery in India | Lowest Global Shipping Charges

Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±20 % 2.2 A IDC DR125-101-R

Name: Eaton Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±20 % 2.2 A IDC DR125-101-R
Brand: Eaton
SKU: 395600
Price: 1.27 USD
Availability: InStock



Category Surface Mount Inductor Brand Eaton Condition New

Specifications

Country of Origin	China
Brand	Eaton
Height	6mm
Length	12.5mm
Model	DR125-101-R
Depth	12.5mm
Packaging	Reel
Series	DR
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	100μH
Standards/Approvals	RoHS
Package/Case	0125
Maximum DC Current	2.2A
Pin Count	2
Maximum DC Resistance	170mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	100kHz
Inductor Construction	Wirewound

Key Features

Magnetically shielded wirewound drum core design ensures high efficiency.
Surface mount style with a package case of 0125 measuring 12.5 mm length by 6 mm height and 12.5 mm depth.
Ferrite core material provides excellent magnetic properties for noise filtering.
Operating temperature range from -40°C to 125°C ensures robustness in demanding environments.
Maximum DC resistance of 170 milliohms minimizes power losses.
Reel packaging facilitates efficient automated PCB assembly processes.
Meets RoHS standards for environmental compliance.
Suitable for applications including DC-DC converters, noise filtering, and various electronic devices.

Product Description

The Eaton DR125-101-R is a shielded wirewound surface mount inductor incorporating a ferrite core, providing 100 μH inductance with an accuracy of ±20% and a maximum DC current of 2.2 A. Designed with a compact 0125 package case and surface mount termination, this inductor dimensions are 12.5 mm length, 6 mm height, and 12.5 mm depth, making it well-suited for high-density PCB layouts.

This inductor features a magnetically shielded wirewound drum core construction that enhances its power density and efficiency, ensuring reliable operation within temperatures ranging from -40°C to 125°C. The maximum DC resistance of 170 milliohms is designed to minimize energy loss during operation.

The DR series inductors are ideal for use in electronic applications such as computers, DVD players, portable devices, LCD panels, buck, boost, forward and resonant converters, as well as noise filtering and filter chokes. Its reel packaging supports efficient automated surface mount assembly processes, facilitating production efficiency.

With compliance to RoHS standards and a molded construction, this inductor meets modern environmental and manufacturing requirements. The ferrite core provides excellent magnetic properties, ensuring stability and performance under diverse electronic workloads.

Magnetically shielded wirewound drum core. Compact 0125 package case and surface mount termination. Ferrite core material optimized for high efficiency. Wide operating temperature range from -40°C to 125°C. Maximum DC current rating of 2.2 A and DC resistance of 170 mΩ.

RoHS compliant to support environmental standards. Suitable for DC - DC converters, noise filtering, and various electronic devices. Reel packaging enhances automated PCB assembly workflows.

This Eaton surface mount inductor is a reliable choice for advanced industrial, laboratory, communication, and consumer electronic applications where compact, efficient inductance and shielding are essential. Explore more Surface Mount Inductors and electronic components at EnvMart to find optimal parts for your design needs.
