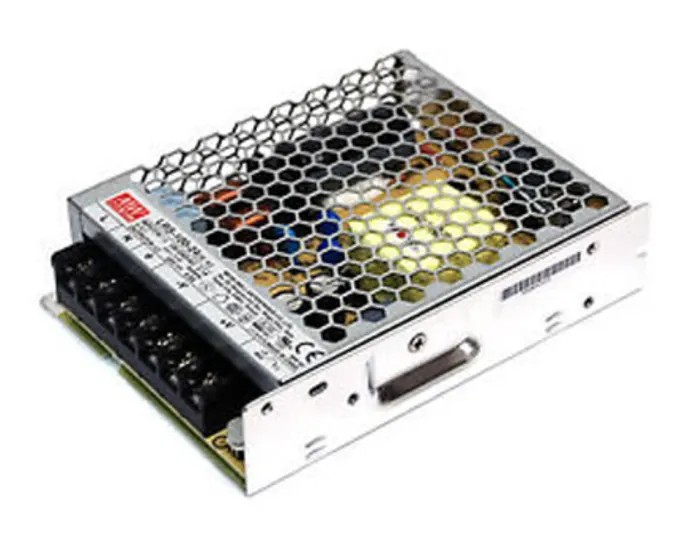

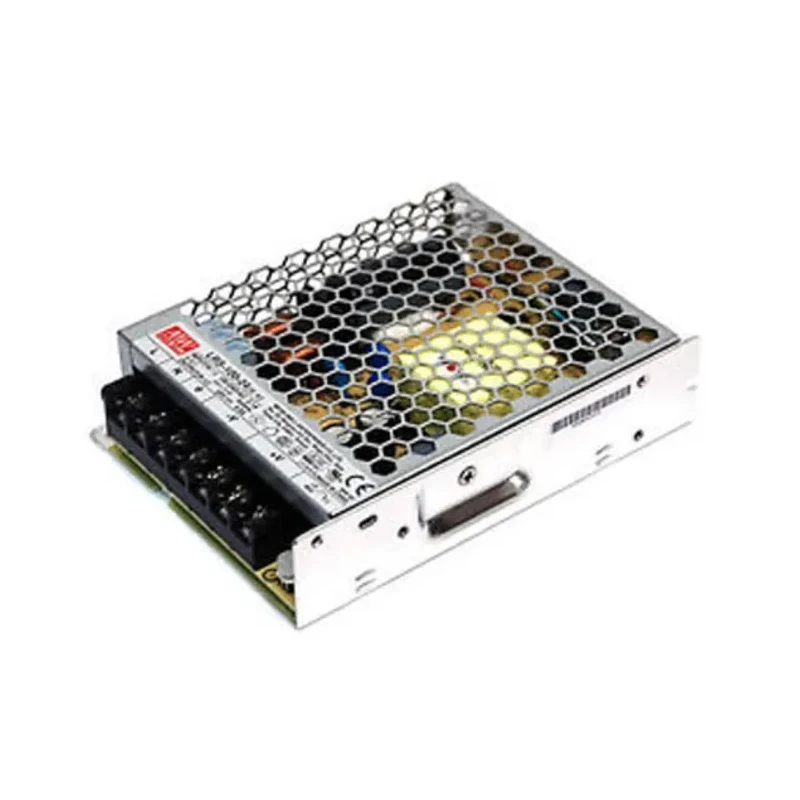

MEAN WELL LRS-100-5 Switching Power Supply 5V DC 90W 18A Chassis Mount LRS-100-5

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL LRS-100-5 Switching Power Supply 5V DC 90W 18A Chassis Mount LRS-100-5

Name: MEAN WELL LRS-100-5 Switching Power Supply 5V DC 90W 18A Chassis Mount LRS-100-5
Brand: MEAN WELL
SKU: 394844
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	90W
Efficiency	86%
Length	129mm
Model	LRS-100-5
Depth	30mm
Gross Weight	340g
Width	97mm
Mount Type	Chassis
Series	LRS-100
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	373, 264V dc
Maximum Output Voltage	5V dc
SMPS Output Current	18A
Minimum Input Voltage	85V ac

Key Features

Provides a stable 5V DC output with 18A current capacity.
Supports universal AC input from 85V AC to 264V AC and DC input up to 373V DC.
Compact chassis mount with dimensions 129mm x 97mm x 30mm.
Highly efficient with 86% power conversion efficiency.
Operates reliably between -30°C to 70°C ambient temperature.
Features free air convection cooling with 5G vibration resistance for durability.
Designed to meet multiple international safety standards including UL 62368-1 and TUV EN 62368-1.
Ideal for industrial automation, mechanical and electrical equipment, and household appliances.

Product Description

MEAN WELL LRS-100-5 Switching Power Supply delivers a reliable 5V DC output at 90 watts power capacity and 18 amperes output current. Designed as a chassis mount type, it measures 129mm in length, 97mm in width, and 30mm in depth, with a compact and robust enclosure suited for demanding industrial environments.

This power supply features a universal input voltage range of 85V AC to 264V AC and a maximum DC input of 373V, enabling worldwide usage. Its high 86% efficiency coupled with free air convection cooling ensures stable performance and energy efficiency. The unit operates safely within a temperature range of -30°C to 70°C and withstands 5G vibration, enhancing durability in harsh conditions.

Certifications include UL 62368-1, AS/NZS 62368.1, BSMI CNS143361, CCC GB4943.1, CSA C22.2 No. 62368-1, EAC TP TC 00, IS 13252 (Part 1)/IEC 60950-1, and TUV BS EN/EN 62368-1, ensuring compliance with globally accepted safety regulations.

Stable 5V DC output with 18A current support. Universal AC/DC input for versatile power sources. Compact chassis mount design optimized for heat dissipation. High efficiency at 86% for power savings. Wide operating temperature range and vibration resistance for reliability.

Compliant with multiple international safety standards. Low standby power consumption to reduce energy use. Ideal for industrial automation and control machinery. Suitable for mechanical, electrical, and household appliance applications.

The MEAN WELL LRS series is well-regarded for its durability, efficiency, and broad application scope within industrial, laboratory, and commercial electronic systems. This model is particularly suited to environments requiring robust power supply solutions with stable output at demanding load conditions.
