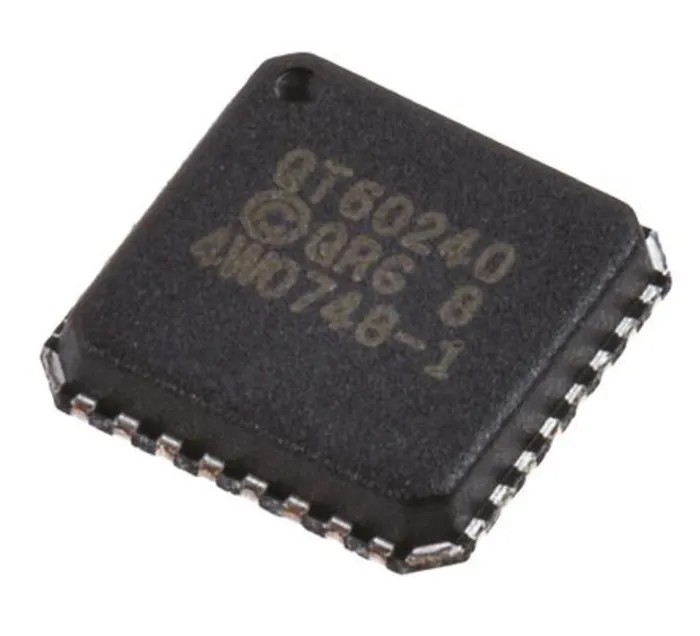

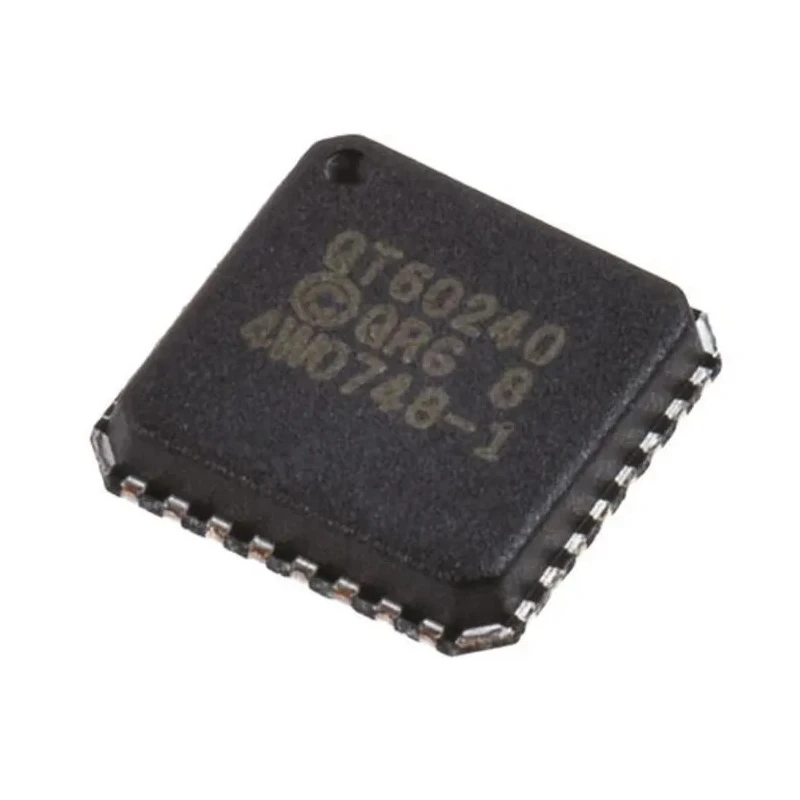

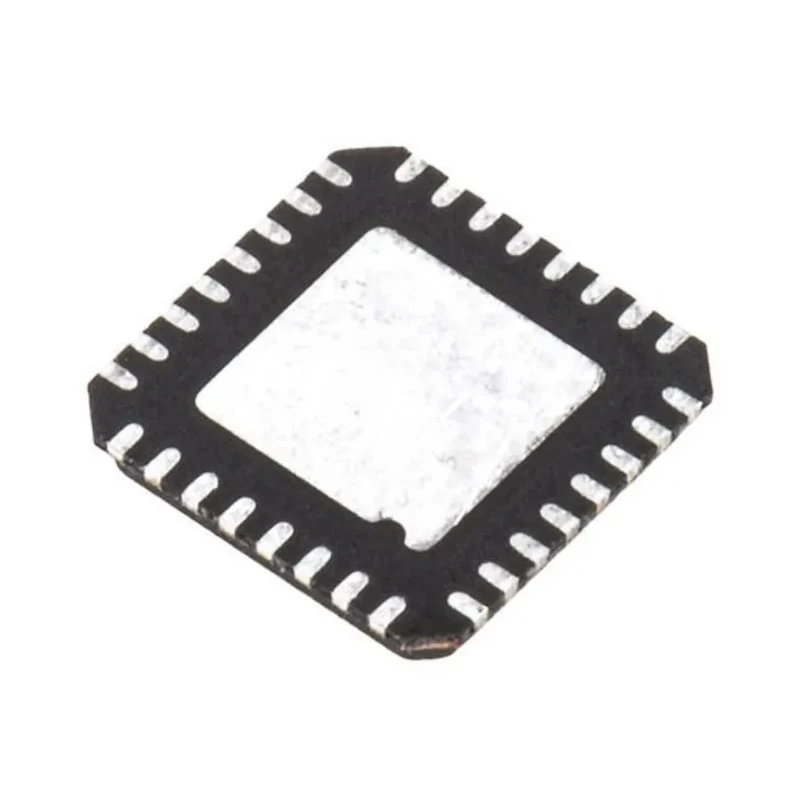

Microchip QT60240-ISG Spread-Spectrum Charge-Transfer Touch Screen Controller, 10 bit Serial-SPI, I2C Interface QT60240-ISG
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 10 bit |
| Brand | Microchip |
| Height | 950μm |
| Length | 5mm |
| Model | QT60240-ISG |
| Width | 5mm |
| Mount Type | Surface |
| Series | QT60240 |
| Input Type | 24 Keys |
| Maximum Operating Temperature | 85°C |
| Package Type | MLF |
| Sub Type | Touch Screen Controller |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-SPI, I2C |
| Pin Count | 32 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 25mA |
| Sensing Technology | Spread-Spectrum Charge-Transfer |
| Sensing Wire Type | Hard-Wire |
Key Features
- Employs 24-key input with hard-wire sensing wires and surface mount technology.
- Operates over a wide supply voltage range from 1.8V to 5V.
- Compact package with 32 pins in MLFP form factor, measuring 5mm x 5mm with a height of 950μm.
- Designed to function reliably in temperatures from -40°C to 85°C.
- Consumes a supply current of approximately 25mA for efficient operation.
- Uses Spread-Spectrum Charge-Transfer technology for robust touch sensing performance.
- Suitable for Human Machine Interface (HMI) applications requiring precise touch control.
- Does not have automotive certification but is reliable for standard industrial and commercial electronic designs.
Product Description
Microchip QT60240-ISG is a high-performance Spread-Spectrum Charge-Transfer Touch Screen Controller designed for advanced Human Machine Interface applications. It provides 10 bit resolution and supports both Serial-SPI and I2C communication protocols, enabling flexible integration in embedded systems.
This touch controller supports up to 24 distinct keys with hard-wire sensing technology, mounted on a compact 32-pin MLFP package. Its small form factor of 5mm by 5mm and height of 950μm allows for space-efficient designs in electronic devices.
Operational voltage ranges from 1.8V to 5V, making it compatible with various power supply environments. The device is engineered to operate reliably over a temperature range extending from -40°C to 85°C, suitable for industrial, commercial, and laboratory applications.
With a supply current of just 25mA, the QT60240-ISG delivers energy-efficient performance without sacrificing responsiveness or accuracy. Its Spread-Spectrum Charge-Transfer sensing technology enhances noise immunity and touch detection accuracy.
This device is ideal for integration in applications requiring precision touch sensing such as industrial machinery controls, automation panels, consumer electronics, and other embedded human interface systems.
The QT60240-ISG does not adhere to specific automotive standards but is well-suited for robust use in normal operating conditions within electronics and instrumentation industries.
Employs 24-key input with hard-wire sensing wires and surface mount technology. Operates over a wide supply voltage range from 1.8V to 5V. Compact package with 32 pins in MLFP form factor, measuring 5mm x 5mm with a height of 950μm.
Designed for reliable performance in extreme temperature conditions from -40°C to 85°C. Consists of low supply current consumption of 25mA for efficient operation. Advanced Spread-Spectrum Charge-Transfer sensing technology enhances noise immunity.
Perfect for Human Machine Interface applications requiring compact, precise touch control solutions.
Explore the Touch Screen Controller category on EnvMart for Microchip and other top-quality brands to find compatible components for your next project or production line enhancement.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The QT60240-ISG provides a resolution of 10 bits, allowing for precise touch detection.
It supports both Serial-SPI and I2C communication protocols, enabling flexible integration into various embedded systems.
This touch screen controller operates over a supply voltage range from 1.8V to 5V, making it compatible with a variety of power supply environments.
The device has a compact package measuring 5mm x 5mm with a height of 950μm, suitable for space-efficient designs.
The QT60240-ISG is designed to operate reliably in temperatures up to 85°C, making it suitable for various industrial applications.
This model supports up to 24 distinct keys, utilizing hard-wire sensing technology for effective input detection.
It consumes a supply current of approximately 25mA, allowing for energy-efficient operation without sacrificing performance.
It employs Spread-Spectrum Charge-Transfer sensing technology, which enhances noise immunity and touch detection accuracy.
This model uses surface mount technology, facilitating easy integration into compact electronic designs.
The QT60240-ISG does not have automotive certification but is reliable for standard industrial and commercial electronic designs.
This touch controller is designed to operate in temperatures as low as -40°C, suitable for extreme conditions.
The QT60240-ISG is manufactured in India.
