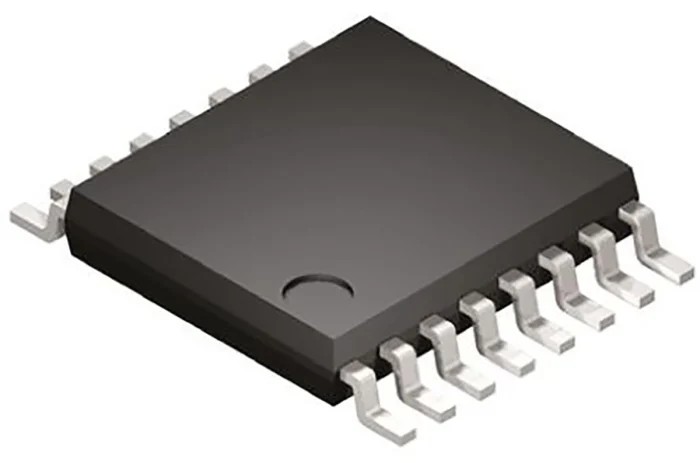

Texas Instruments Resistive Touch Screen Controller 12 bit SPI Interface 4 Wire 16-Pin TSSOP TSC2046IPW
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 5mm |
| Model | TSC2046IPW |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | TSC2046E |
| Input Type | 1 TSC |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Touch Screen Controller |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 2.2V |
| Sensing Technology | Resistive |
| Sensing Wire Type | 4 Wire |
Key Features
- Supports resistive touch sensing with 12 bit resolution for precise input detection.
- Features SPI interface enabling seamless communication with microcontrollers.
- Operates within supply voltage range of 2.2V to 5.25V for flexible system integration.
- Compact 16-pin TSSOP surface mount package with dimensions of 5mm by 4.4mm and height of 1.15mm.
- Wide operating temperature range from -40°C to 85°C suitable for diverse environments.
- Designed for single touch screen panel input suitable for embedded and industrial applications.
- System compatible with 4-wire resistive touch screens for accurate user interface operation.
- Ideal for industrial, consumer electronics, and embedded applications requiring touch screen control.
Product Description
Texas Instruments TSC2046IPW is a high precision resistive touch screen controller featuring a 12 bit analog to digital resolution and a SPI communication interface. Packaged in a 16-pin TSSOP surface mount format, this device supports 4-wire resistive touch screen technology, allowing it to convert analog touch signals into digital data for microcontroller interfacing.
The operating voltage ranges from a minimum of 2.2V to a maximum of 5.25V, making it suitable for a wide variety of embedded systems. Its wide temperature operating range from -40°C to 85°C ensures reliable performance even in harsh industrial and outdoor environments.
The compact size of 5mm length, 4.4mm width, and 1.15mm height facilitates integration into space-constrained designs. With 16 pins, the device offers robust connectivity while maintaining a small footprint.
This controller is designed for single-touch screen inputs, ideal for applications in industrial automation, instrumentation, consumer electronics, and touch screen user interfaces needing accurate touch detection.
The TSC2046IPW belongs to the TSC2046E series, known for its efficiency and durability. It does not carry automotive standard or specific certifications but fits well within standard electronics designs.
Supports resistive touch sensing with 12 bit resolution for precise input detection. Features SPI interface enabling seamless communication with microcontrollers. Operates within supply voltage range of 2.2V to 5.25V for flexible system integration.
Compact 16-pin TSSOP surface mount package with dimensions of 5mm by 4.4mm and height of 1.15mm. Wide operating temperature range from -40°C to 85°C suitable for diverse environments. Designed for single touch screen panel input suitable for embedded and industrial applications.
System compatible with 4-wire resistive touch screens for accurate user interface operation. Ideal for industrial, consumer electronics, and embedded applications requiring touch screen control. Part of the TSC2046E series with robust performance and proven reliability.
This product is extensively used in electronic devices requiring reliable and precise touch detection, including control panels, handheld instruments, and embedded control systems. The TSC2046IPW offers a stable and economical solution for touch screen interfacing.
Explore more Touch Screen Controllers and sensor ICs to find the perfect solution for your electronic design projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSC2046IPW features a resolution of 12 bits, allowing for precise input detection.
It operates within a supply voltage range of 2.2V to 5.25V, providing flexibility for system integration.
This model features an SPI interface, enabling seamless communication with microcontrollers.
The dimensions of this touch screen controller are 5mm in length, 4.4mm in width, and 1.15mm in height.
It has a wide operating temperature range from -40°C to 85°C, making it suitable for diverse environments.
This touch screen controller has a total of 16 pins, facilitating robust connectivity.
The TSC2046IPW uses resistive touch sensing technology, specifically designed for 4-wire systems.
It is designed for single touch screen panel inputs, suitable for embedded and industrial applications.
The TSC2046IPW is packaged in a 16-pin TSSOP format, which is a surface mount type.
This product does not carry automotive standard or specific certifications but fits well within standard electronics designs.
It belongs to the TSC2046E series, known for its efficiency and reliability in touch screen applications.
The input type for this model is designed for a single TSC (touch screen controller).
