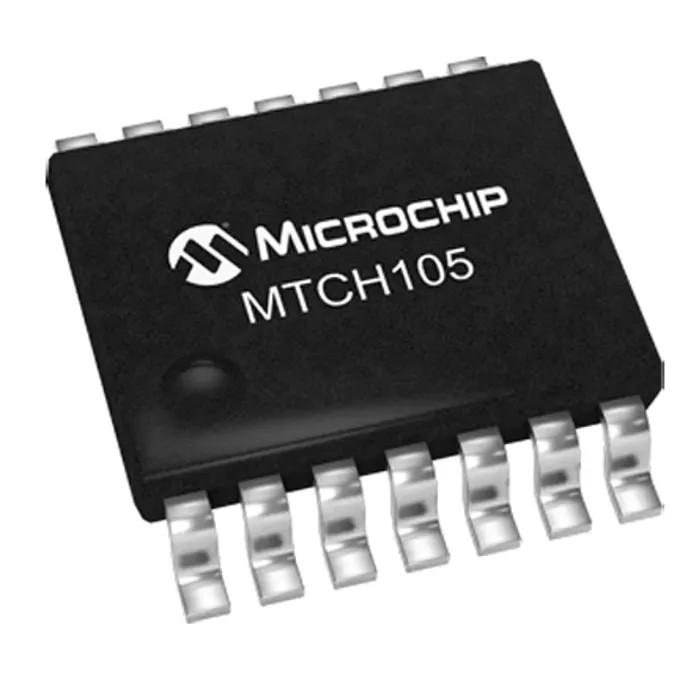

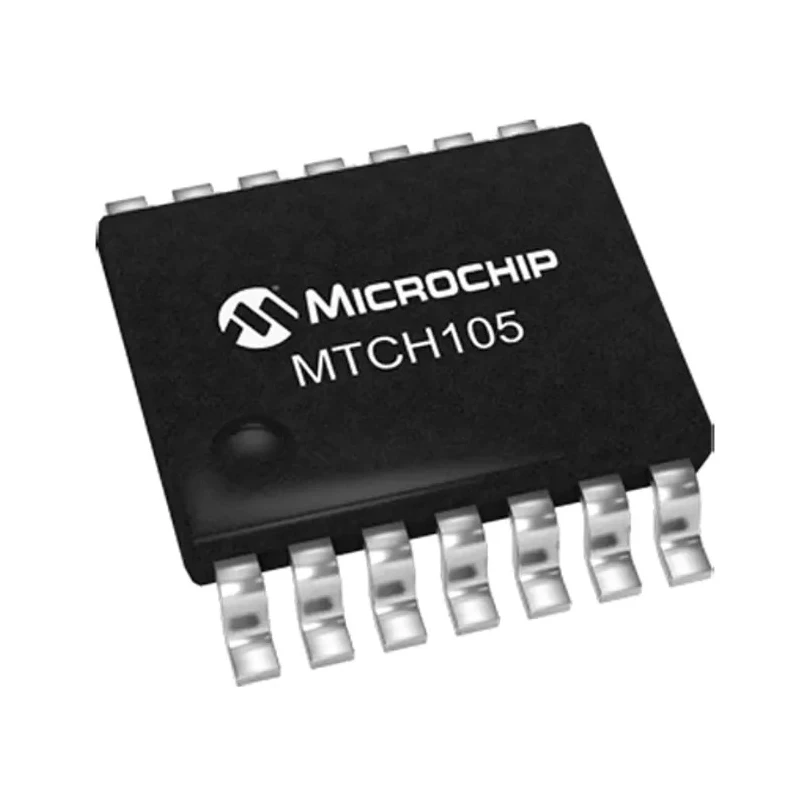

Microchip Capacitive Touch Screen Controller Simple I/O, 14-Pin TSSOP MTCH105-I/ST
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Operating Temperature | -40°C to +85°C |
| Height | 1.05mm |
| Operating Voltage Range | 2.05V to 3.6V |
| Length | 5.1mm |
| Model | MTCH105-I/ST |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | MTCH105 |
| Input Type | 1 TSC |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Touch Screen Controller |
| Minimum Operating Temperature | -40°C |
| Interface Type | Simple I/O |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.05V |
| Supply Current | 85mA |
| Sensing Technology | Capacitive |
Key Features
- Operates over a voltage range of 2.05V to 3.6V.
- Features low power consumption with a supply current of 85mA.
- Equipped with automatic environmental compensation for stable performance.
- Supports simple I/O interface allowing easy integration and control.
- Designed for operating temperatures from -40°C to 85°C.
- Built in brown-out protection ensures device reliability.
- Available in a compact 14-pin TSSOP surface mount package.
- Multi-stage active noise suppression filters reduce signal interference.
Product Description
Microchip MTCH105-I/ST is a capacitive touch screen controller designed for effective translation of touch and proximity detection into simple digital output signals. The device operates with a voltage range from 2.05V up to 3.6V and a supply current of 85mA, ensuring low power usage while maintaining high performance.
Its simple I/O interface allows seamless integration with various host devices. The controller incorporates multi-stage active noise suppression filters and automatic environmental compensation to reliably detect touch inputs under varying conditions and sensor configurations.
The compact 14-pin TSSOP surface mount package measures 5.1mm in length, 4.5mm in width, and 1.05mm in height, making it suitable for space-constrained applications.
Key features include adjustable sensitivity with threshold hysteresis, flexible low-power modes, and brown-out protection for enhanced safety and robustness. It supports a wide range of sensor sizes and shapes, ideal for industrial, consumer electronics, automotive, and human-machine interface applications.
Operates with a voltage supply range of 2.05V to 3.6V. Simple I/O interface enables straightforward communication and control. High signal-to-noise ratio for accurate touch sensing. Configurable sensitivity and threshold hysteresis.
Multi-stage active noise suppression for reliable operation. Automatic environmental compensation adapts to changing conditions. Compact 14-pin TSSOP surface mount package with 5.1mm length. Operating temperature range from -40°C to +85°C ensures broad usability.
Brown-out protection enhances system reliability.
This Microchip capacitive touch screen controller is ideal for integration into electronic devices requiring responsive and accurate touch or proximity sensing capabilities, including industrial controls, handheld electronics, consumer gadgets, and automotive interfaces.
Explore EnvMart’s extensive range of Electronics & Electricals components and Touch Screen Controllers to find compatible products and accessories for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MTCH105-I/ST operates over a voltage range of 2.05V to 3.6V.
It has a supply current of 85mA, ensuring low power consumption during operation.
The dimensions of the package are 5.1mm in length, 4.5mm in width, and 1.05mm in height.
The operating temperature range is from -40°C to +85°C, allowing for broad usability in various environments.
It supports a simple I/O interface, facilitating easy integration and control with host devices.
The controller includes brown-out protection and automatic environmental compensation for stable performance.
It is equipped with multi-stage active noise suppression filters to reduce signal interference during operation.
This model utilizes capacitive sensing technology for touch and proximity detection.
It is suitable for applications in industrial controls, consumer electronics, automotive interfaces, and human-machine interfaces.
Yes, it is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
The maximum supply voltage for the MTCH105-I/ST is 3.6V.
It supports a single touch screen controller input type (1 TSC).
