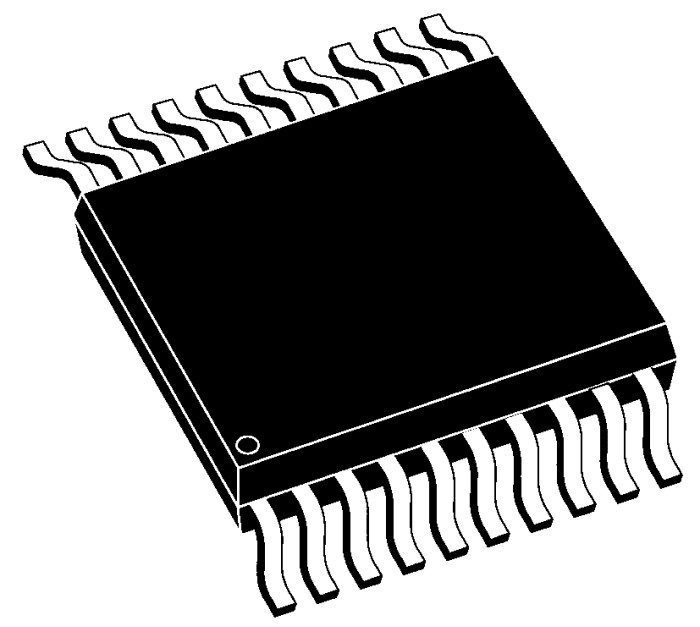

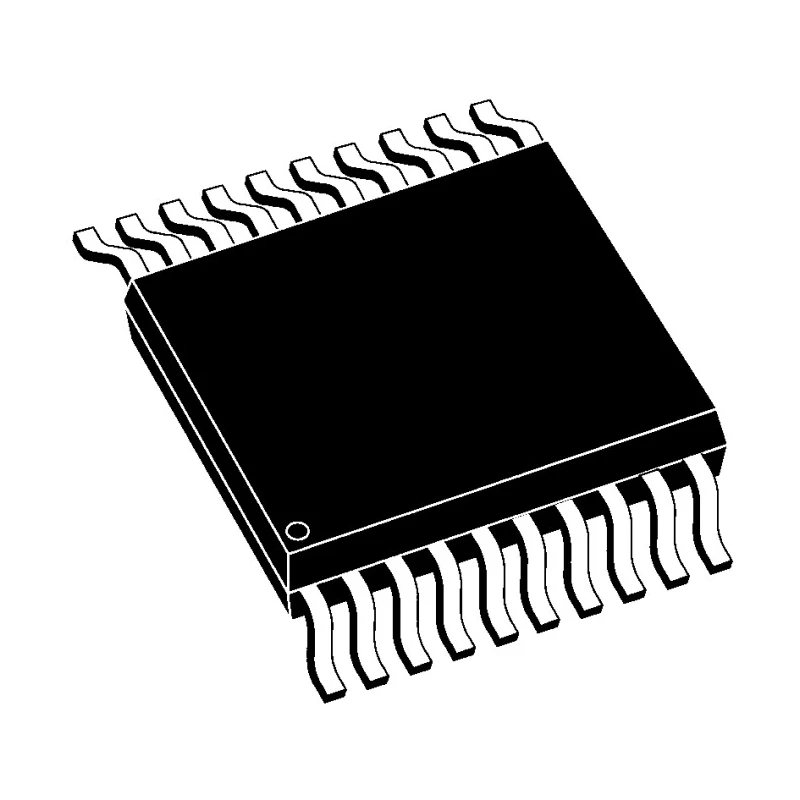

Microchip Resistive Touch Screen Controller 10 bit SPI 8 Wire, 20-Pin SSOP AR1100-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 10 bit |
| Brand | Microchip |
| Height | 1.85mm |
| Length | 7.5mm |
| Model | AR1100-I/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | AR1100 |
| Input Type | 1 TSC |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Sub Type | Touch Screen Controller |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Pin Count | 20 |
| Minimum Supply Voltage | 5V |
| Supply Current | 25mA |
| Sensing Technology | Resistive |
| Sensing Wire Type | 8 Wire |
| Microchip Grove-Touch Sensor Touchscreen Module for AR1100Brand | Microchip |
Key Features
- Supports 10 bit resolution for accurate touch sensing.
- Uses SPI interface for reliable communication.
- Employs resistive sensing technology with 8-wire configuration.
- Compact 20-pin SSOP package for surface mount installation.
- Operational voltage fixed at 5V for consistent performance.
- Wide operating temperature range from -40°C to 85°C.
- Low supply current consumption of 25mA.
- Ideal for human machine interface (HMI) applications in electronics.
Product Description
Microchip AR1100-I/SS Resistive Touch Screen Controller, model AR1100-I/SS, is a high-precision 10 bit resolution controller with SPI interface optimized for 8-wire resistive touch screen technology. The device is designed for surface mount applications using a compact 20-pin SSOP package, measuring 7.5mm in length, 5.6mm in width, and 1.85mm in height.
Operating at a fixed supply voltage of 5V, it supports a broad temperature range from -40°C to 85°C, making it suitable for diverse industrial, automotive, and consumer electronics environments. The controller consumes a low 25mA supply current ensuring power efficiency.
This Touch Screen Controller is part of the AR1100 series from Microchip, widely used for human machine interface implementations, including embedded systems requiring reliable touch sensing functionality.
10 bit resolution for detailed touch accuracy. SPI communication interface enabling straightforward integration. 8-wire resistive sensing compatible with standard resistive touch panels. Surface mount 20-pin SSOP package facilitating compact device design.
Robust operating temperature range for demanding applications. Low power consumption to extend device operational life. Compact form factor supports modern electronic product miniaturization. Industry-accepted specifications for dependable performance.
New, unused condition guarantees product reliability and quality. Perfect for touch screen applications in industrial, laboratory, and commercial devices. Explore more high-quality control ICs and sensors in the Microchip product range available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AR1100-I/SS features a resolution of 10 bits, allowing for accurate touch sensing.
It uses an SPI interface for reliable communication with other devices.
The operating temperature range is from -40°C to 85°C, making it suitable for various environments.
This model consumes a low supply current of 25mA, ensuring power efficiency during operation.
The dimensions are 7.5mm in length, 5.6mm in width, and 1.85mm in height.
It is designed for surface mount installation in a compact 20-pin SSOP package.
It employs resistive sensing technology with an 8-wire configuration, compatible with standard resistive touch panels.
The AR1100-I/SS operates at a fixed supply voltage of 5V.
It is ideal for human machine interface (HMI) applications in electronics, including embedded systems requiring touch sensing functionality.
This model has a pin count of 20 pins.
The country of origin for this product is India.
It is part of the AR1100 series from Microchip.
