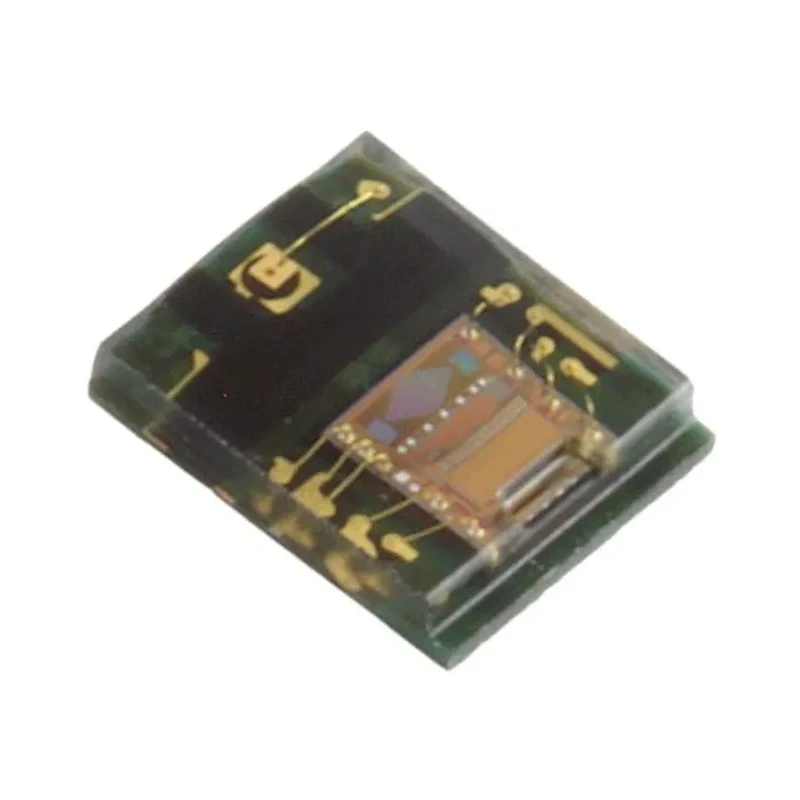

Broadcom 5V DC Optical Encoder, Incremental, 2 Channel Quadrature with Index, Surface Mount AEDR-8723-102
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | AEDR-8723-102 |
| Mount Type | Surface |
| Current Rating | 27, 60mA |
| Series | AEDR-872x |
| Encoder Type | Incremental |
| Supply Voltage | 5V dc |
| Standards/Approvals | RoHS |
| Termination Style | Surface Mount |
| Encoder Signal | 2 Channel Quadrature with Index Digital |
Key Features
- This incremental optical encoder operates at a 5V DC supply voltage.
- It delivers two-channel quadrature signals plus a digital index pulse for position reference.
- Designed for surface-mount termination to minimize assembly footprint.
- Offers low current consumption options of 27 mA and 60 mA for efficient power use.
- Supports real-time speed monitoring in motion-control systems.
- Ideal for compact PCB mounting in electronic assemblies and actuators.
- Not rated for automotive-standard applications.
- Used in various electronic systems requiring precise speed and position sensing with index reference.
Product Description
Broadcom AEDR-8723-102 is a high-precision 5V DC incremental optical encoder designed for surface-mount applications. It converts rotary motion into digital quadrature signals with an additional index pulse for accurate position referencing. This device supports motion-control systems by providing real-time position and speed feedback.
Featuring a two-channel quadrature output with an index digital signal, the encoder is suitable for compact electronic assemblies where efficient surface mounting and low power consumption are essential. The device is available with two current ratings of 27 mA and 60 mA to align with different power budgets.
The encoder’s surface-mount termination style is optimized to minimize assembly footprint, making it highly suitable for rotary position feedback on encoder boards. It operates strictly at 5 V DC supply voltage and is RoHS compliant, ensuring environmentally friendly manufacturing standards.
Applications include precise rotary position sensing in motion control, speed detection in DC-driven actuators, and electronic systems requiring incremental position tracking and index referencing. However, the device is not designed to meet automotive industry standards.
This incremental optical encoder works with 5 V DC supply voltage. Provides two quadrature channels with a digital index pulse for position and reference. Surface-mount termination style reduces assembly size. Low current options available at 27 mA and 60 mA for efficient operation.
Supports precise speed sensing and motion feedback. RoHS compliant and environmentally compatible. Suited for compact PCBs and electronic actuator boards. Not intended for automotive applications due to lack of standard compliance.
Broadcom’s AEDR-8723-102 optical encoder is an essential component for industrial, laboratory, and manufacturing motion-control systems requiring incremental position and speed feedback. Explore the full range of optical Encoders and related products in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a supply voltage of 5V DC.
It is an incremental optical encoder designed for precise position and speed sensing.
The encoder is available with two current ratings: 27 mA and 60 mA.
It provides a two-channel quadrature output along with a digital index pulse for position referencing.
The encoder features a surface mount termination style, which minimizes assembly footprint.
Yes, it is RoHS compliant, ensuring it meets environmentally friendly manufacturing standards.
It is suitable for applications requiring precise rotary position sensing and speed detection in motion control systems.
The encoder is manufactured in India.
The encoder belongs to the AEDR-872x series.
It is beneficial for industrial, laboratory, and manufacturing motion-control systems that require incremental position and speed feedback.
No, this model is not designed to meet automotive industry standards.
The index digital signal serves as a position reference, enhancing the accuracy of position tracking.
