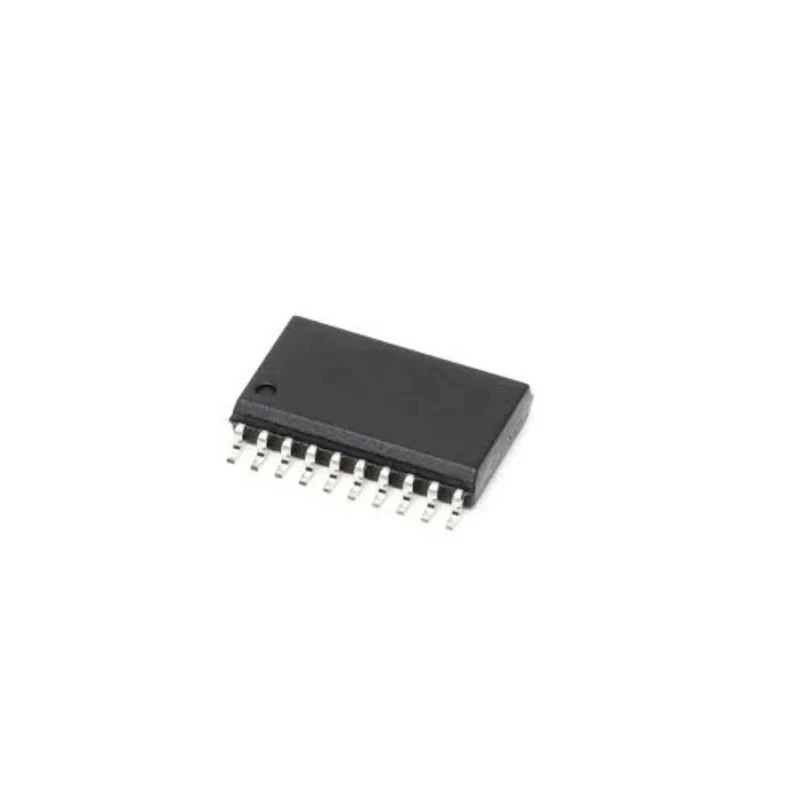

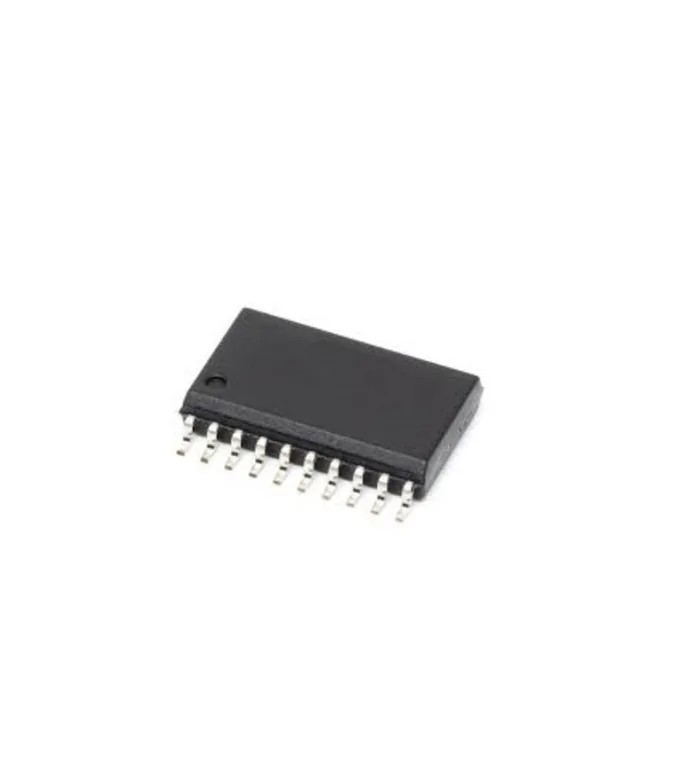

Microchip Capacitive Touch Controller IC I2C Interface 20-Pin SOIC AT42QT2120-SU

Microchip AT42QT2120-SU is a capacitive touch controller IC featuring an I2C interface and housed in a 20-pin SOIC surface mount package. This device incorporates 12 configurable Microchip QTouchADC channels supporting buttons, sliders, and wheels to provide sophisticated capacitive sensing solutions.

The QTouchADC self-capacitance sensing algorithm enables enhanced proximity detection, making it particularly suitable for applications requiring longer-range touch sensing such as wake-up functions, thermostat controls, TV remote controls, and wireless mouse devices. The touch buttons can be designed in various shapes and sizes to fit diverse user interface requirements.

This IC operates over a broad voltage range from -0.5V to a maximum of 6V and supports a wide operating temperature range of -40°C to 85°C, ensuring robust performance in industrial, commercial, and consumer electronics environments. The 20-pin SOIC package measures 13mm in length, 10.65mm in height, and 2.65mm in width, providing a compact footprint for easy PCB integration.

The device provides signal guard and driven shield features to maintain stable sensing under varying environmental conditions and frequencies. It is certified to meet RoHS standards, confirming its compliance with environmental health and safety regulations.

Microchip's capacitive touch controller enhances product differentiation by reducing total power consumption and enabling more intuitive human-machine interfaces. It is well-suited for use in industrial machines, consumer electronics, HVAC controls, and other applications requiring reliable and sensitive touch detection.

Integrates 12 configurable capacitive sensing inputs for buttons, sliders, and wheels. Enables proximity sensing for extended detection range and wake-up functions. Operates with a wide supply voltage and temperature range for diverse industrial uses.

Compact SOIC 20-pin package facilitates surface mount assembly and design flexibility. Includes advanced signal processing for stable sensing despite environmental changes. Meets international RoHS compliance for environmental safety.

Utilized in applications such as thermostats, remote controls, wireless input devices, and industrial touch interfaces. Explore more capacitive touch sensor ICs and Touch Screen Controllers at EnvMart for advanced sensing solutions.
