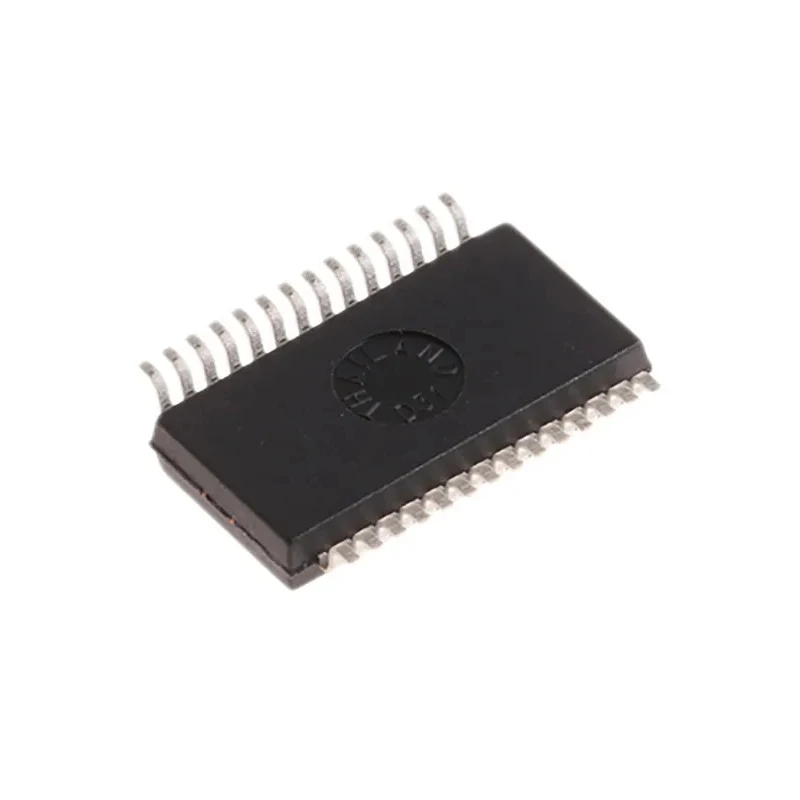

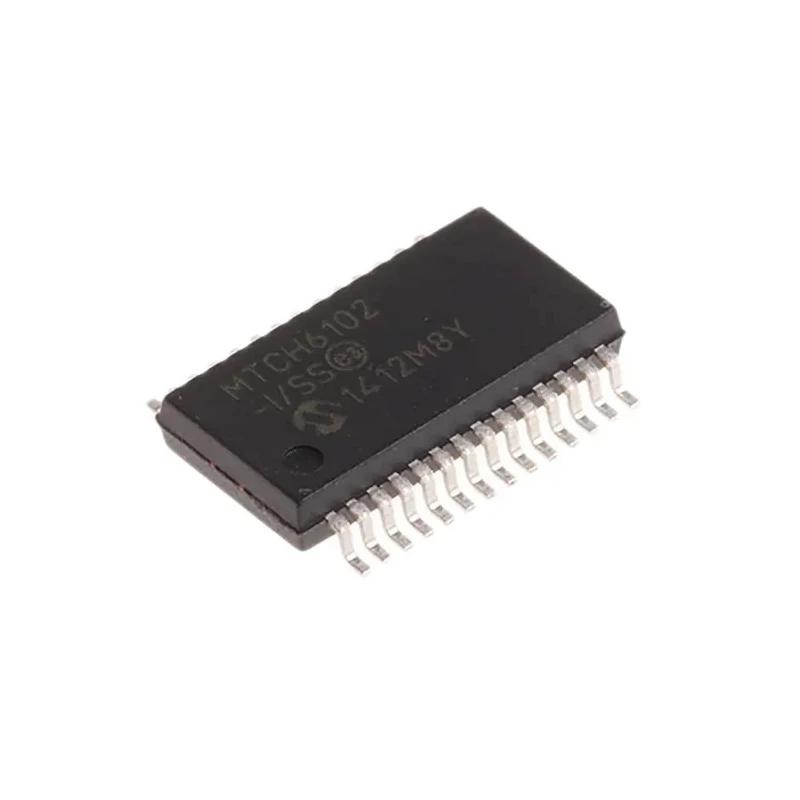

Microchip Capacitive Touch Screen Controller 12 bit 400 kbps I2C, 28-Pin SSOP MTCH6102-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.85mm |
| Length | 10.5mm |
| Model | MTCH6102-I/SS |
| Width | 5.6mm |
| Mount Type | Surface |
| Series | MTCH6102 |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Sub Type | Touch Screen Controller |
| Minimum Operating Temperature | -40°C |
| Conversion Rate | 400kbps |
| Interface Type | I2C |
| Pin Count | 28 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 1.17mA |
| Sensing Technology | Capacitive |
Key Features
- Operates with a minimum supply voltage of 1.8V and maximum of 3.6V.
- Supports capacitive sensing technology for reliable touch detection.
- Surface mount SSOP package with 28 pins ensures compact integration.
- Wide operating temperature range from -40°C to 85°C for varied environments.
- Low supply current of 1.17mA allows efficient power consumption.
- Standard compatible with MTCH6102 series controllers.
- Designed for human machine interface and advanced touch screen applications.
Product Description
Microchip MTCH6102-I/SS is a high-performance capacitive touch screen controller tailored for advanced human machine interface solutions. Featuring a 12 bit resolution and a fast 400 kbps I2C communication interface, it enables precise and responsive touch detection in various electronic applications. Its capacitive sensing technology ensures accurate touch sensing with minimal interference.
The device is supplied in a compact 28-pin SSOP surface-mount package, facilitating efficient PCB layout and integration. It operates reliably across a wide voltage range from 1.8V to 3.6V, accommodating diverse system requirements while consuming low power with a supply current of 1.17mA.
With operational temperature tolerances from -40°C to 85°C, the MTCH6102-I/SS is suitable for industrial, consumer electronics, and automotive environments that demand robust performance. The precise mechanical dimensions (10.5mm length, 5.6mm width, and 1.85mm height) support compact device design and assembly.
This Touch Screen Controller is part of Microchip’s MTCH6102 series, renowned for delivering reliable capacitive touch sensor control in various sectors including industrial instrumentation, commercial touch interfaces, and embedded systems. Its surface mount topology simplifies manufacturing and improves device durability.
Operates with a supply voltage range of 1.8V to 3.6V and a low current draw of 1.17mA. 12 bit resolution ensures accurate sensing for diverse touch applications. 400 kbps I2C interface supports rapid data transfer and device communication.
Comprised in a 28-pin SSOP package to minimize space and enable flexible board designs. Temperature range from -40°C to 85°C assures functionality in harsh operating conditions. Designed for use in human machine interfaces, industrial touch control panels, and smart devices.
Compact dimensions of 10.5mm x 5.6mm x 1.85mm accommodate dense PCB layouts. Explore Microchip products including capacitive touch controllers on EnvMart for reliable electronic component sourcing and integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 1.8V to 3.6V.
It utilizes a 400 kbps I2C communication interface for rapid data transfer.
The resolution of this touch screen controller is 12 bits, ensuring accurate touch detection.
The device has dimensions of 10.5mm in length, 5.6mm in width, and 1.85mm in height.
It operates reliably within a temperature range of -40°C to 85°C.
This unit employs capacitive sensing technology for reliable touch detection.
The supply current for this touch screen controller is 1.17mA, allowing for efficient power consumption.
It features a total of 28 pins in its SSOP package.
This model is designed for surface mounting, which facilitates compact integration.
It is designed for human machine interfaces, industrial touch control panels, and smart devices.
This touch screen controller is part of the MTCH6102 series, known for reliable capacitive touch sensor control.
The country of origin for this product is India.
