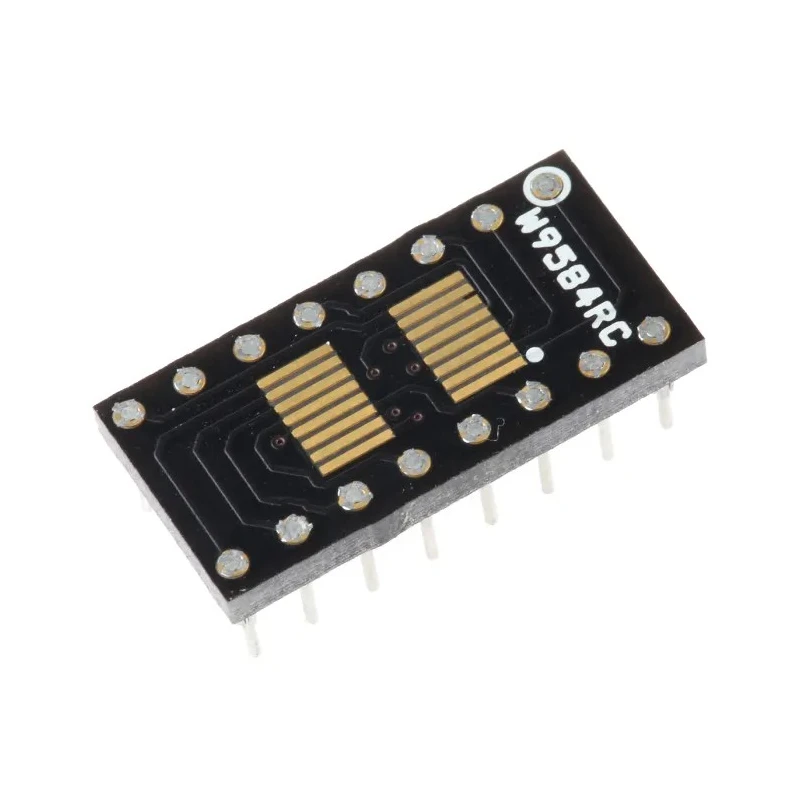

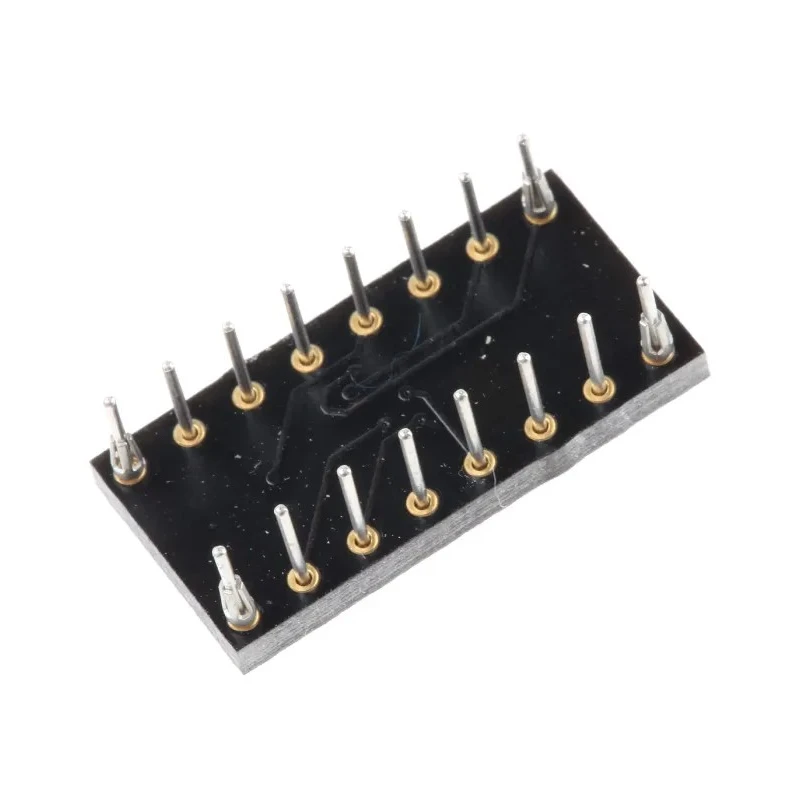

Winslow Straight Through Hole Mount 2.54 mm Pitch QSOP to DIP IC Socket Adapter W9584RC

Winslow W9584RC is a straight through hole mount IC socket adapter designed to convert 16-pin QSOP packages to a 16-pin DIP format with a 2.54 mm pitch. This adapter enables seamless adaptation between small outline package types such as SOP, SSOP, TSOP, TSSOP, MSOP, and QSOP, allowing designers to avoid board redesign for alternative packaging.

The product is constructed using brass contact material plated with tin over nickel to provide reliable electrical connectivity and resistance to corrosion. The housing is fabricated from FR4 material, providing mechanical protection and electrical insulation suitable for various electronics applications.

With a straight orientation and through-hole mount type, the W9584RC ensures stable and robust mounting on printed circuit boards. It supports female QSOP connection on one side and male DIP connection on the other, both featuring 16 contacts to carry signals efficiently.

Manufactured in the United Kingdom, this adapter aligns with quality manufacturing principles although no explicit certifications or approvals are provided.

This IC socket adapter finds application in electronics development, prototyping, and field repairs, facilitating flexible use of different IC packages on DIP-compatible boards. It is suited for use in electronics manufacturing, repair workshops, research laboratories, and prototyping facilities.

This adapter facilitates easy board design changes by allowing package conversion without redesign. Features straight orientation and through-hole mounting for secure installation. Constructed with brass contacts plated with tin over nickel for durability and excellent conductivity.

The housing is made from FR4 material ensuring good insulation and mechanical stability. Supports a connection pitch of 2.54 mm between pins. Compatible with female QSOP connection and male DIP connection, each with 16 contacts.

Manufactured in the United Kingdom, ensuring high production standards. No specific industry standards or approvals are specified for this adapter.

For professionals seeking IC socket adapters for innovative electronics design and prototyping, Winslow W9584RC offers a reliable and industry-compatible solution. Explore related IC socket adapters and connectors at EnvMart as you build and enhance your electronic applications.
