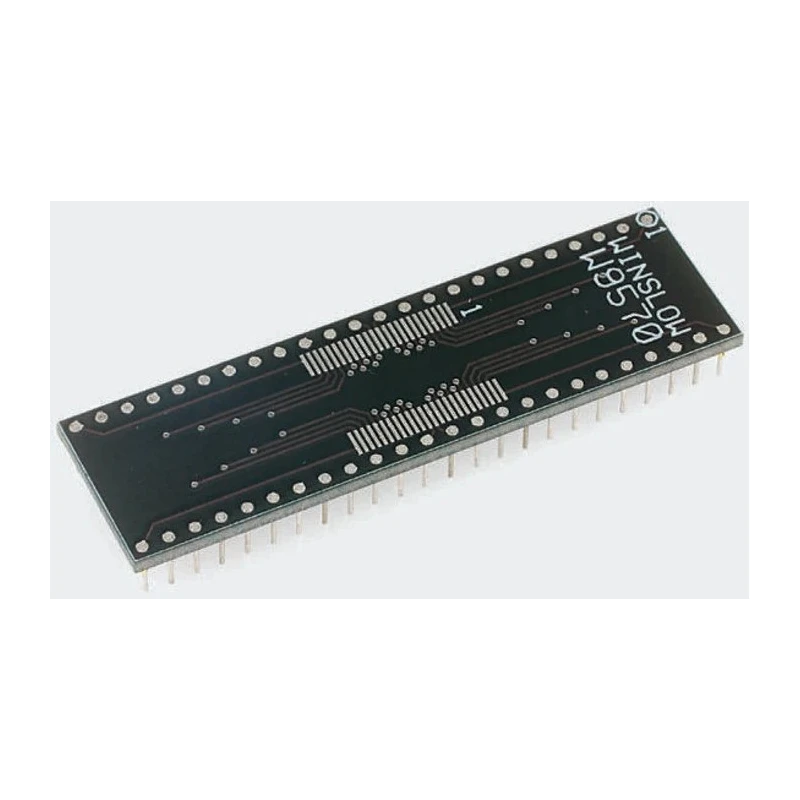

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9571RC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Winslow |
| Orientation | Straight |
| Model | W9571RC |
| Mount Type | Through Hole |
| Housing Material | FR4 |
| Contact Material | Brass |
| Pitch | 2.54mm |
| Contact Plating | Tin over Nickel |
| Connection Gender A | Female |
| Number of Contacts A | 44 |
| Connection Gender B | Male |
| Connection A | SOP |
| Connection B | DIP |
Key Features
- Suitable for converting small outline packages to dual in line package format.
- Features 44 female contacts on SOP side and 44 male contacts on DIP side.
- Mount type is through hole with straight orientation for reliable PCB installation.
- Contact material is brass with tin over nickel plating for durability and conductivity.
- Housing is made of FR4 material, ensuring robustness in electronic assemblies.
- Maintains industry standard 2.54 mm pitch spacing between contacts.
- Manufactured to convert SOP/SSOP/TSOP/TSSOP/MSOP/QSOP packages to DIP.
- Ideal for electronic component prototyping and board adaptations.
Product Description
Winslow W9571RC is a high-quality Straight Through Hole Mount IC Socket Adapter designed for converting Small Outline Packages (SOP/SSOP/TSOP/TSSOP/MSOP/QSOP) to the Dual In Line Package (DIP) format with a 2.54 mm pitch. This adapter facilitates seamless board compatibility and reduces redesign costs during development and prototyping stages.
The adapter features 44 female contacts on the SOP side and 44 male contacts on the DIP side. The contact material is brass, plated with tin over nickel, providing excellent conductivity and corrosion resistance. Its through hole mounting type and straight orientation allow reliable mechanical and electrical connections on printed circuit boards. The housing is manufactured from durable FR4 material, commonly used in electronic applications for its strong insulating properties.
Designed for numerous package types such as SOP, SSOP, TSOP, TSSOP, MSOP, and QSOP, this versatile adapter is essential for adapting various small-outline integrated circuit packages to standard DIP footprints. It is widely used in industrial electronics, manufacturing, laboratory instrument setups, and electronic prototyping, offering flexibility when working with different IC packages.
Converts SOP/SSOP/TSOP/TSSOP/MSOP/QSOP packages to DIP format. 44 female contacts (SOP side) to 44 male contacts (DIP side) configuration. Through hole mounting with straight orientation for reliable PCB fitting. Brass contacts plated with tin over nickel for enhanced conductivity.
Housing made from FR4 material, ensuring resilience and insulation. Maintains industry-standard 2.54 mm pitch spacing. Manufactured in the United Kingdom to ensure quality standards. Ideal for use in industrial, manufacturing, laboratory, and prototyping applications.
Explore quality IC Socket Adapters like the Winslow W9571RC for your electronic component integration needs at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this IC socket adapter is 2.54 mm, maintaining industry-standard spacing between contacts.
It features 44 female contacts on the SOP side and 44 male contacts on the DIP side.
The contacts are made of brass and are plated with tin over nickel, while the housing is made from FR4 material.
This model uses a through hole mounting type with straight orientation for reliable PCB installation.
It is designed to convert SOP, SSOP, TSOP, TSSOP, MSOP, and QSOP packages to the DIP format.
It is manufactured in the United Kingdom, ensuring adherence to quality standards.
It is widely used in industrial electronics, manufacturing, laboratory instrument setups, and electronic prototyping.
The contacts are oriented straight, which aids in reliable mechanical and electrical connections.
The connection gender on the SOP side is female, while the DIP side has male connections.
The tin over nickel plating enhances conductivity and provides corrosion resistance for the contacts.
The adapter is designed for through hole mounting, which requires appropriate PCB holes for installation.
