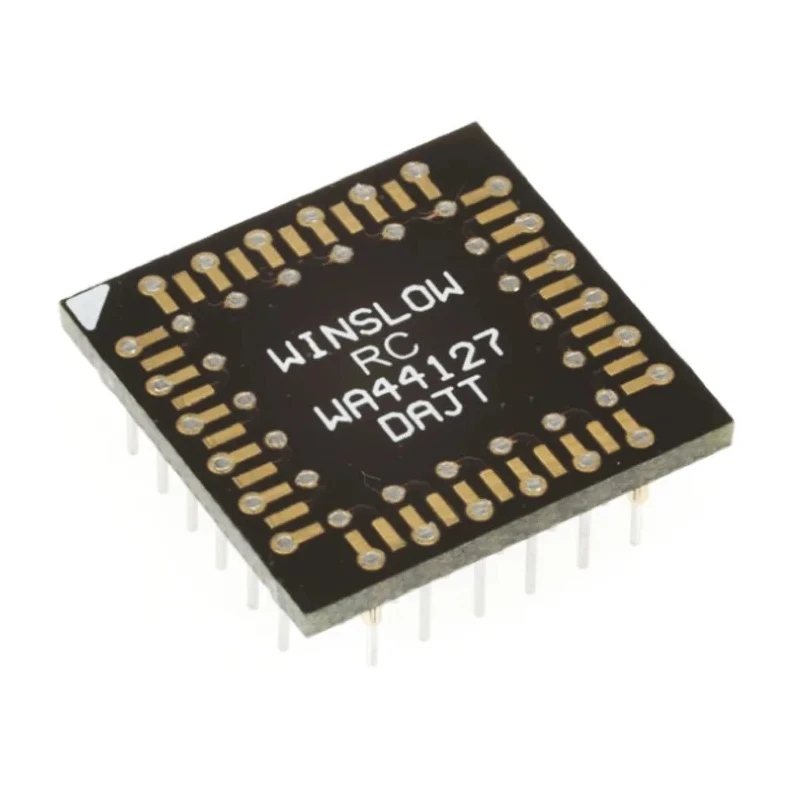

Winslow IC Socket Adapter Straight Through Hole Mount 2.54 mm Pitch PLCC to PGA WA068127DAJTRC

Winslow WA068127DAJTRC IC Socket Adapter is a straight through hole mount adapter designed to convert between PLCC and PGA IC package types with a 2.54 mm pitch. This adapter facilitates connection from 68-pin female PLCC interfaces to 68-pin male PGA footprints, enabling compatibility across varying PCB designs in electronic system development and testing.

The adapter’s contacts are coated with gold over nickel plating which ensures excellent electrical performance and resistance to oxidation, critical in demanding electronic applications. Its robust brass contact material complements the gold plating, providing durability and reliable signal transmission.

Constructed with an FR4 housing material, the adapter maintains structural stability while ensuring insulation and mechanical protection. The through hole mount type with a straight orientation allows secure soldering and mechanical integrity on standard PCB assemblies.

These adapters have a compact 1.6 mm above board height, making them suitable for applications with limited vertical space. They are particularly useful in prototyping, repair, or conversion scenarios in industries including electronics manufacturing, research laboratories, and industrial control systems.

Manufactured in the United Kingdom, the adapter adheres to quality production standards, offering dependable performance in a variety of electrical and electronics engineering environments. While the product does not specify formal approvals, its application-focused design supports efficient package type translation without requiring board redesigns.

The adapter supports 68 female PLCC to 68 male PGA contacts and provides 2.54 mm pitch connection. Gold over nickel plating on brass contacts ensures optimal electrical connection longevity. Through hole mount and straight orientation enable durable PCB mounting.

FR4 housing material provides insulation and mechanical support. 1.6 mm above board height for compact system integration. Ideal for electronics prototyping, repair, and testing applications. For browsing similar IC Socket Adapters and related high-quality connectors, EnvMart offers a comprehensive catalog designed for electronics professionals and engineers.
