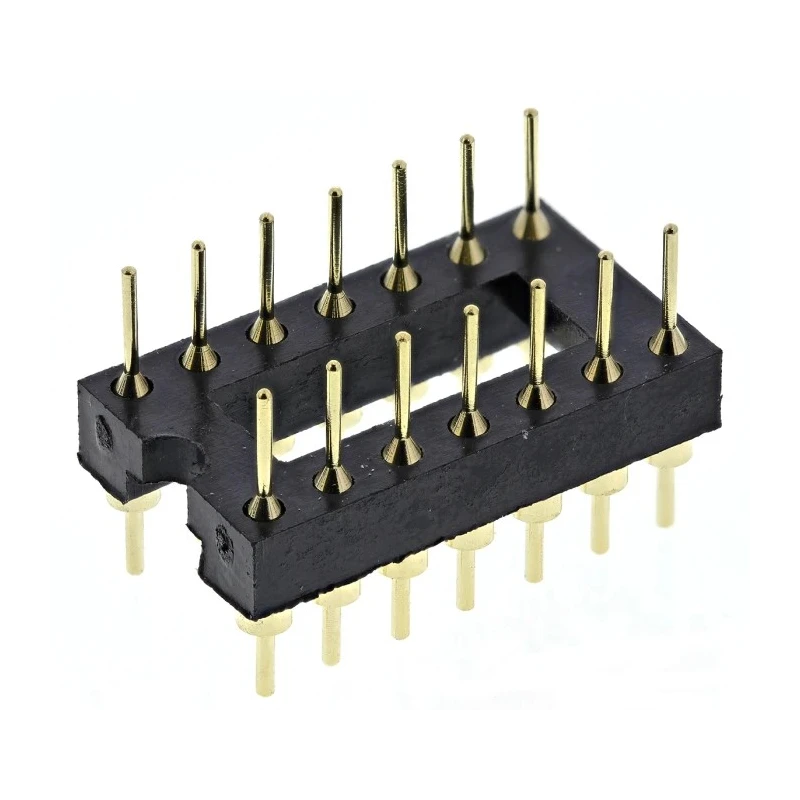

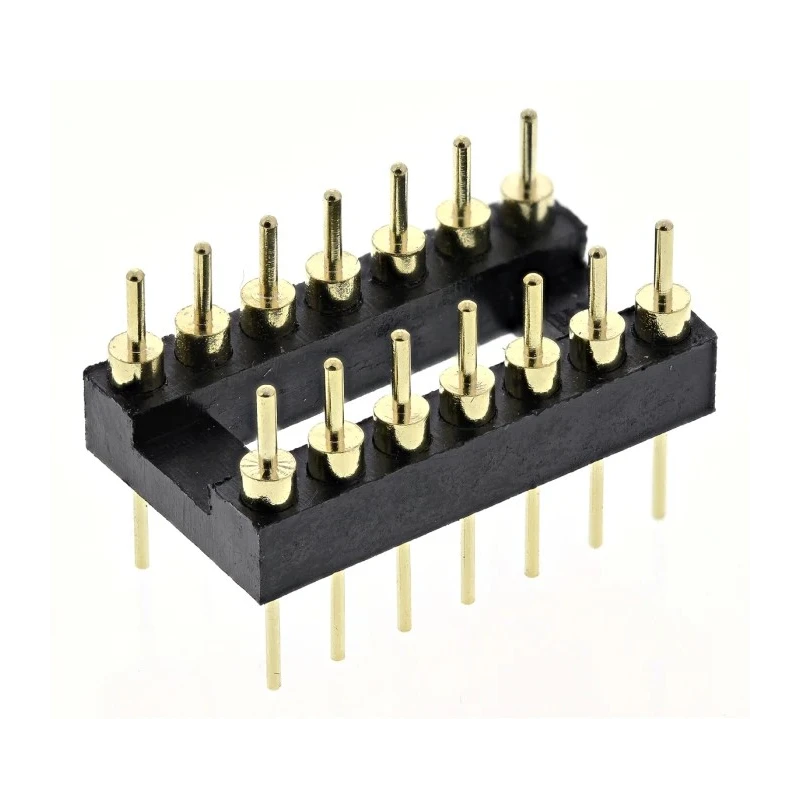

ASSMANN WSW Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter DIP to DIP AR 14-ST/T
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V ac |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | AR 14-ST/T |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Connection Gender A | Male |
| Number of Contacts A | 14 |
| Connection A | DIP |
| E-TEC, POS/POO/PCL 2.54 mm Pitch,Through Hole Mount DIL HeaderBrand | E-TEC |
Key Features
- Features a 14-pin DIP male connection on both sides for seamless interfacing.
- Constructed with brass contact material plated with gold over nickel for reliable conductivity.
- Rated for a current of up to 3A and voltage of 100V AC, suitable for low-power electronic circuits.
- Housing made from durable Polybutylene Terephthalate ensuring mechanical stability.
- Mount type is through-hole with a straight orientation facilitating secure PCB mounting.
- Pitch between contacts is standardized at 2.54 mm, compatible with industry-standard DIP components.
- This adapter has no specific approvals or certifications but follows general industry standards.
Product Description
ASSMANN WSW AR 14-ST/T IC Socket Adapter is a specialized straight through hole mount adapter designed for DIP to DIP connections with a 2.54 mm pitch. It supports 14 contacts on both sides with male connection genders, making it ideal for seamless integration of DIP components in electronic circuit assemblies.
The adapter features brass contacts plated with gold over nickel, enhancing electrical conductivity and corrosion resistance. The housing is fabricated from high-quality Polybutylene Terephthalate (PBT), providing mechanical robustness and reliability in various industrial applications.
Rated for electrical currents up to 3A and voltage up to 100V AC, this IC socket adapter is suitable for use in electronic prototyping, manufacturing, and testing environments within industrial, laboratory, and commercial sectors.
The through hole mount and straight orientation design facilitate easy installation onto printed circuit boards, ensuring a stable and durable connection under typical operating conditions.
This adapter accommodates standard 2.54 mm pitch DIP components, making it a versatile solution for upgrading or modifying electronic boards without requiring complex rework. 14-pin DIP male connections for both input and output sides.
Gold-over-nickel plated brass contacts for enhanced connectivity. Durable Polybutylene Terephthalate housing for mechanical stability. Through hole mount with straight orientation for easy PCB installation. Electrical ratings of 3A current and 100V AC voltage.
Standard 2.54 mm pitch compatible with most DIP components. Ideal for industrial, laboratory, manufacturing, and commercial electronic applications. Explore more IC Socket Adapters and related components from ASSMANN WSW to meet your advanced electronics design and assembly needs at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adapter is rated for a current of up to 3A and a voltage of 100V AC, making it suitable for low-power electronic circuits.
The pitch between the contacts is standardized at 2.54 mm, which is compatible with industry-standard DIP components.
It features a 14-pin DIP male connection on both sides for seamless interfacing of DIP components.
The contacts are made of brass and are plated with gold over nickel to enhance electrical conductivity and corrosion resistance.
The housing is constructed from Polybutylene Terephthalate (PBT), which provides mechanical stability.
It features a through-hole mount with a straight orientation, facilitating secure installation onto printed circuit boards.
This adapter does not have specific approvals or certifications but follows general industry standards.
The orientation of this adapter is straight, which aids in easy installation and connection.
The adapter has a total of 14 contacts on both sides, supporting DIP connections.
Yes, this product is categorized as a customized product, so specific requirements or configurations should be confirmed through an enquiry.
The country of origin for this adapter is India.
