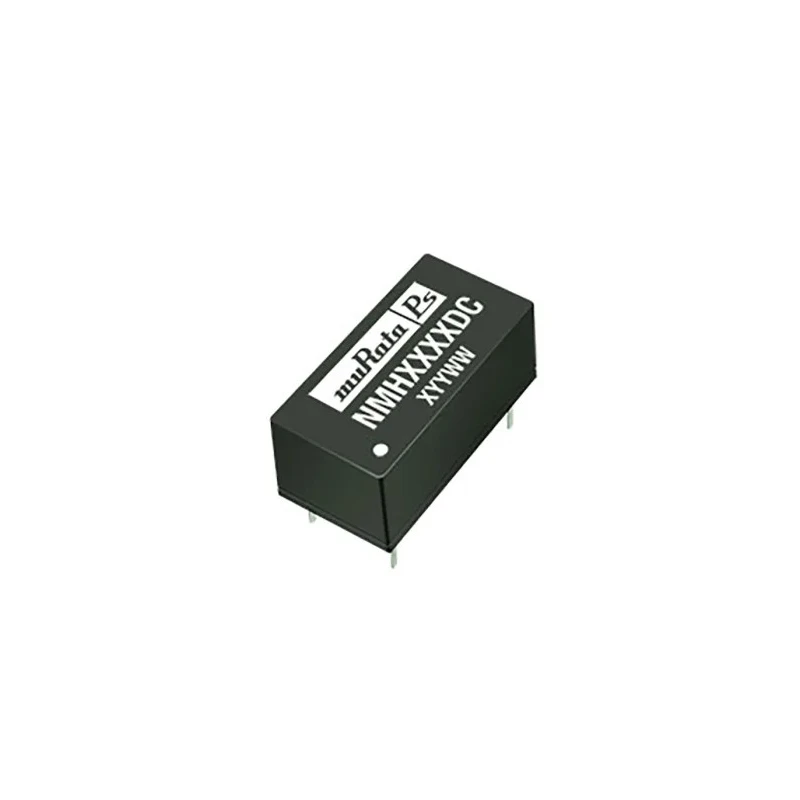

Murata Power Solutions 2W DIP Dual Output Unregulated Isolated DC-DC Converter 12 V dc, -12 V dc, 83 mA Output NMH0512DC

Murata Power Solutions NMH0512DC is a high-efficiency 2 watt dual-output DC-DC converter designed for precise and reliable voltage conversion. Featuring an unregulated isolated output with dual 12 V dc and -12 V dc voltages at 83 mA output current, it operates from a low input voltage range of 4.5 to 5.5 V dc.

This DIP14 plastic package device is designed for through-hole mounting, facilitating secure and robust installation in various industrial and electronic systems. The converter delivers 1 kV dc isolation between input and output, providing excellent protection against electrical interference and noise.

Its compact size with dimensions 19.5 mm by 19.5 mm and a depth of 6.8 mm supports space-saving circuit designs. The operating temperature range from -40°C to 85°C makes it suitable for harsh environments. The typical efficiency is 82%, contributing to reduced power losses and heat dissipation.

The device is manufactured with internal SMD technology and features a UL 94V-0 compliant package material, ensuring safety standards compliance. Ripple and noise are minimized at 70 mV peak-to-peak for steady voltage output required in sensitive electronics.

Murata’s NMH series DC-DC converters are ideal for use in industrial, electronic components, power distribution, and voltage conversion applications. This reliable module requires no additional external components, simplifying the overall design and accelerating development cycles.

High efficiency of 82% suitable for power-sensitive applications. Through-hole mount type with 14-pin DIP plastic package. 1 kV dc input-output isolation ensures operational safety. Wide operating temperature range from -40°C to 85°C.

Compact dimensions of 19.5 mm length, 19.5 mm width, and 6.8 mm depth. Low ripple and noise with 70 mV peak-to-peak for stable output. UL 60950 and RoHS compliant for quality and environmental standards. No external components required reducing design complexity.

Internal SMD construction and UL 94V-0 rated package material. Suitable for industrial, electronic, power supply, and converter applications. Explore advanced power management solutions in the Electronics & Electricals category at EnvMart for all your voltage conversion needs.
