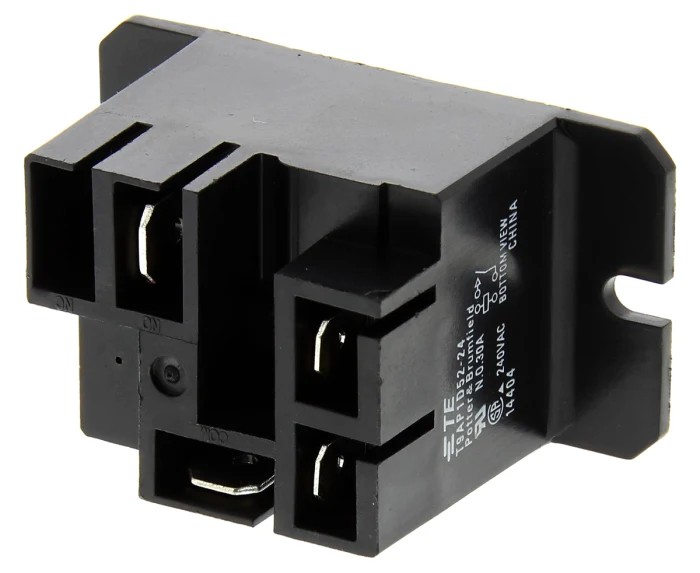

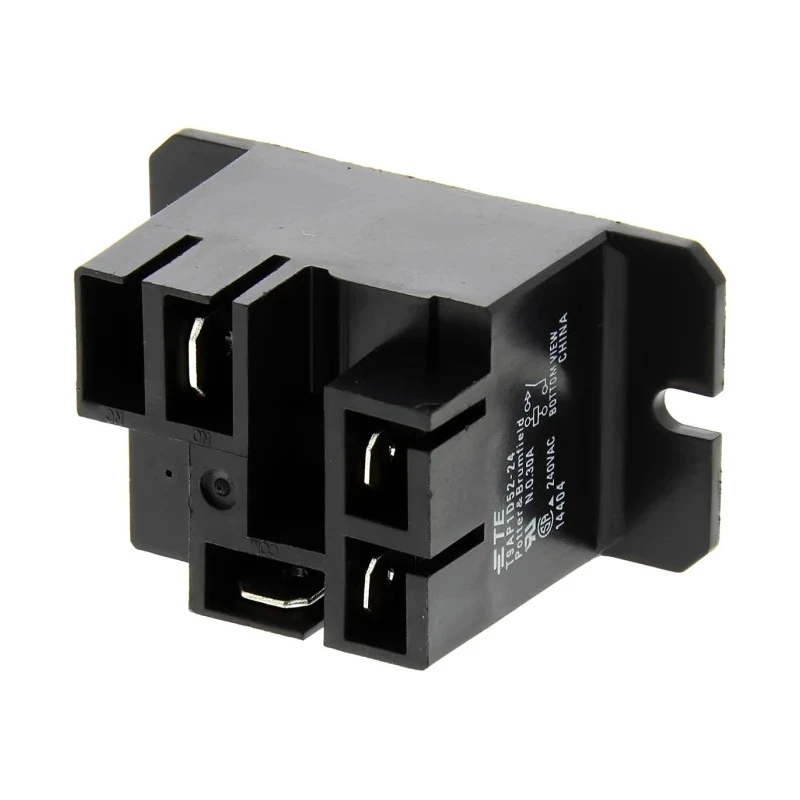

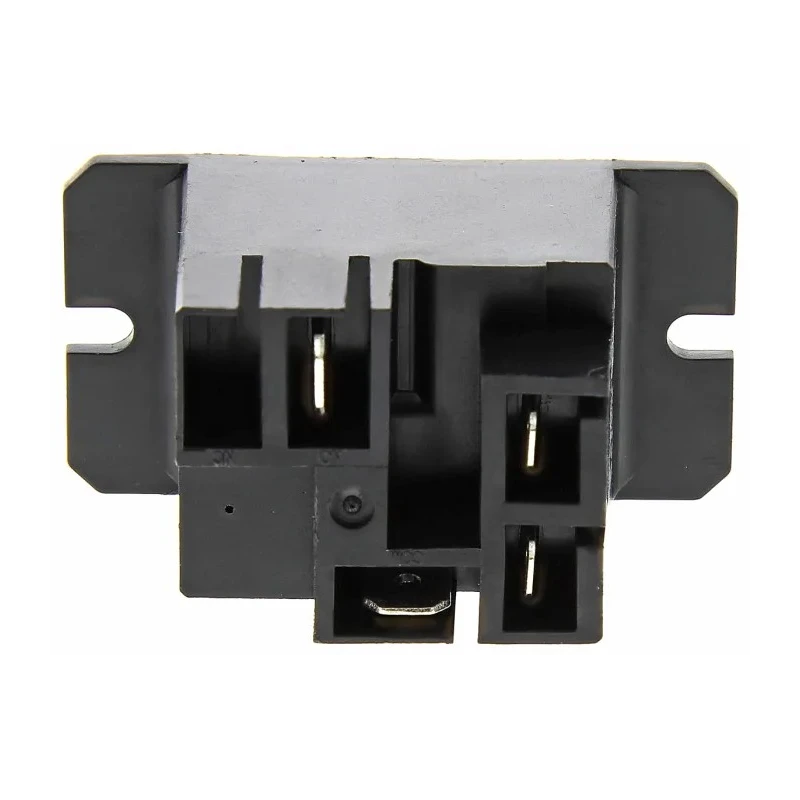

TE Connectivity Flange Power Relay 24V dc Coil 30A Switching Current SPST T9AP1D52-24 6-1419102-3

TE Connectivity T9AP1D52-24 6-1419102-3 flange power relay is a new industrial-grade device with a 24V DC coil voltage designed for reliable switching in electrical circuits requiring up to 30A current carrying capacity. The SPST contact configuration facilitates single-pole single-throw switching, suitable for various automation, electrical control, and power management applications.

The relay is flange-mounted ensuring secure and stable installation in control panels or machinery. The coil resistance of 576 ohms and coil power rating of 1 watt provide efficient coil operation. This model features quick connect terminals for easy installation and maintenance.

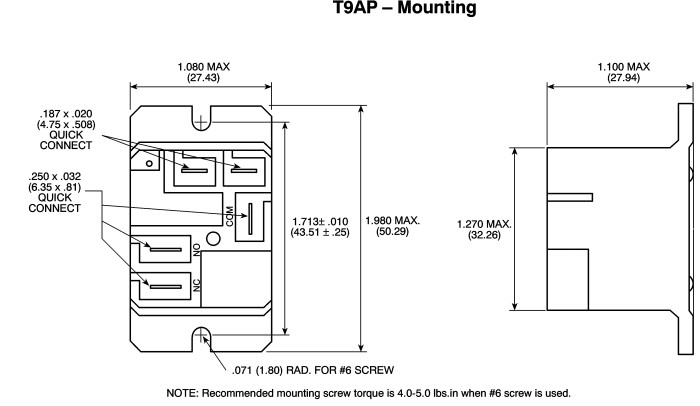

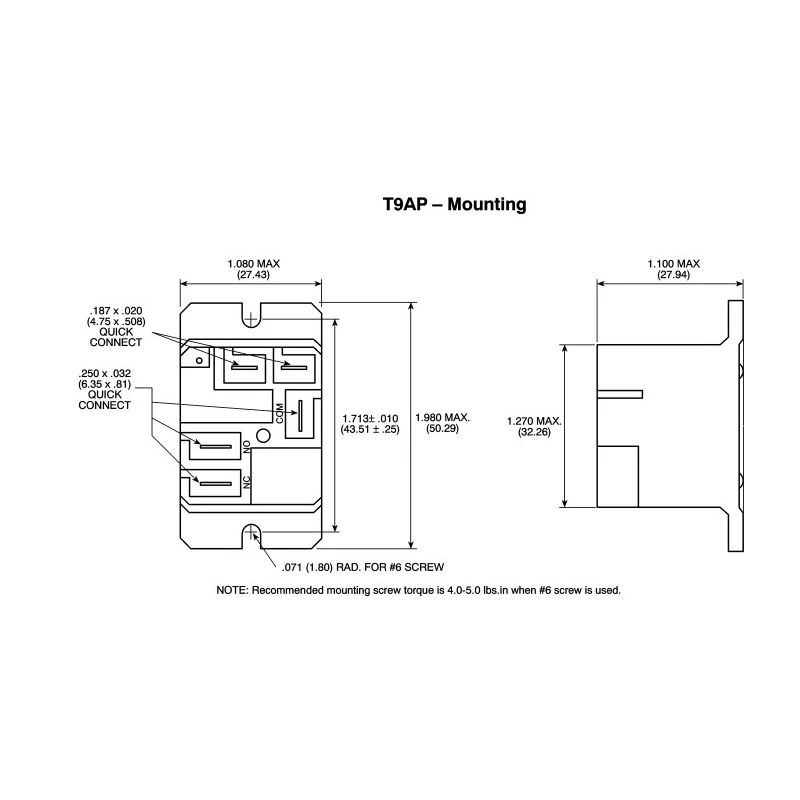

Dimensions are compact with a height of 27.9mm, a width of 27.4mm, and a length of 50.3mm, making it suitable for space-constrained applications. The relay's contact materials include silver alloy with silver cadmium oxide (AgCdO), ensuring excellent conductivity and long operational life. It operates reliably within a wide temperature range of -55°C to 85°C.

The product meets rigorous certifications and standards such as CSA, IEC, EN, UL listings, REACH, RoHS compliance, and VDE approvals, underpinning its suitability for industrial, automation, power distribution, and manufacturing sectors. Its high breaking capacity of 7500VA supports demanding electrical switching requirements.

Coil voltage rating of 24V DC ensures efficient actuation. Single-pole single-throw (SPST) contact configuration suitable for general power relay use. Flange mount type for secure installation. Quick connect terminals enable easy wiring and replacement.

Switching current capacity up to 30 amperes for robust power handling. Operating temperature range from -55°C to 85°C supports harsh environments. Dimensions approximately 27.9mm height, 27.4mm width, and 50.3mm length for compact installation.

Coil resistance rated at 576 ohms and coil power of 1 watt optimizes power consumption. Contact material comprises high-quality silver alloy ensuring reliable conductivity. Complies with multiple industry standards including CSA, EN, IEC, REACH, RoHS, UL, and VDE for safety and compatibility.

Ideal for use in industrial automation, control systems, electrical panels, HVAC systems, and commercial manufacturing equipment. The compact flange mount design facilitates easy integration into existing setups or new installations.
