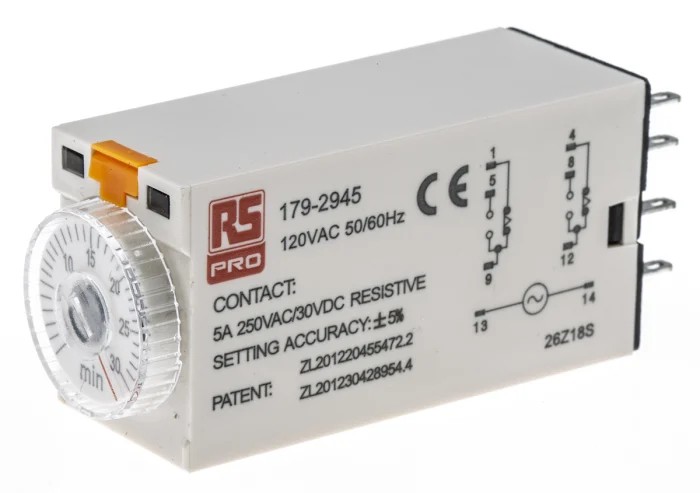

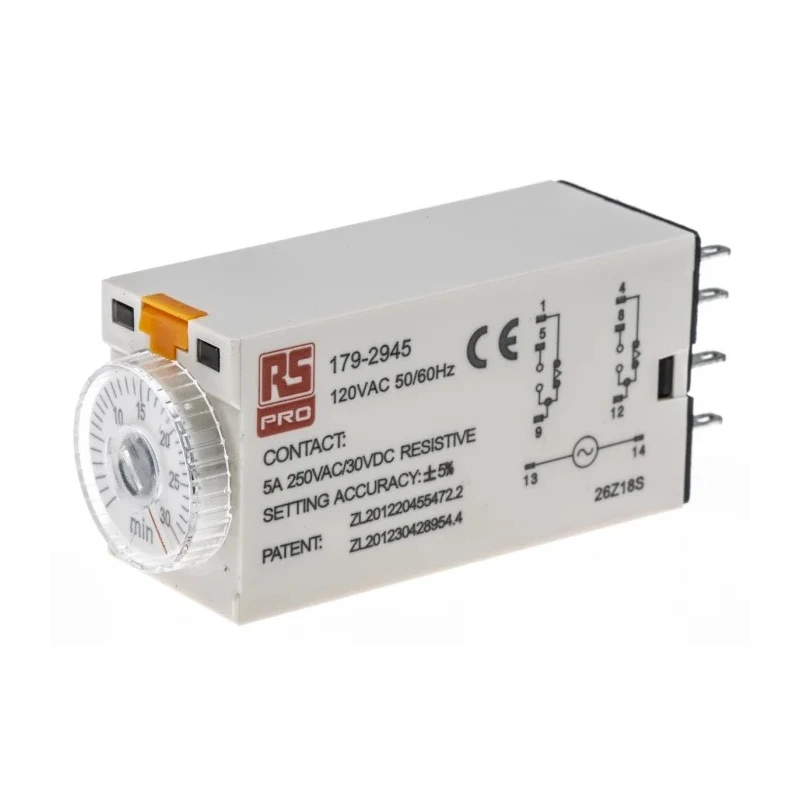

RS PRO Timer Relay 2-Contact 110V AC 1 to 30 min On Delay DPDT Switch Configuration 179-2945

RS PRO 179-2945 Timer Relay is a precision electrical timing device designed for industrial and automation applications. It features 2-contact DPDT switch configuration with a time range adjustable between 1 to 30 minutes, powered by a 110V AC supply to provide accurate On Delay timing functionality.

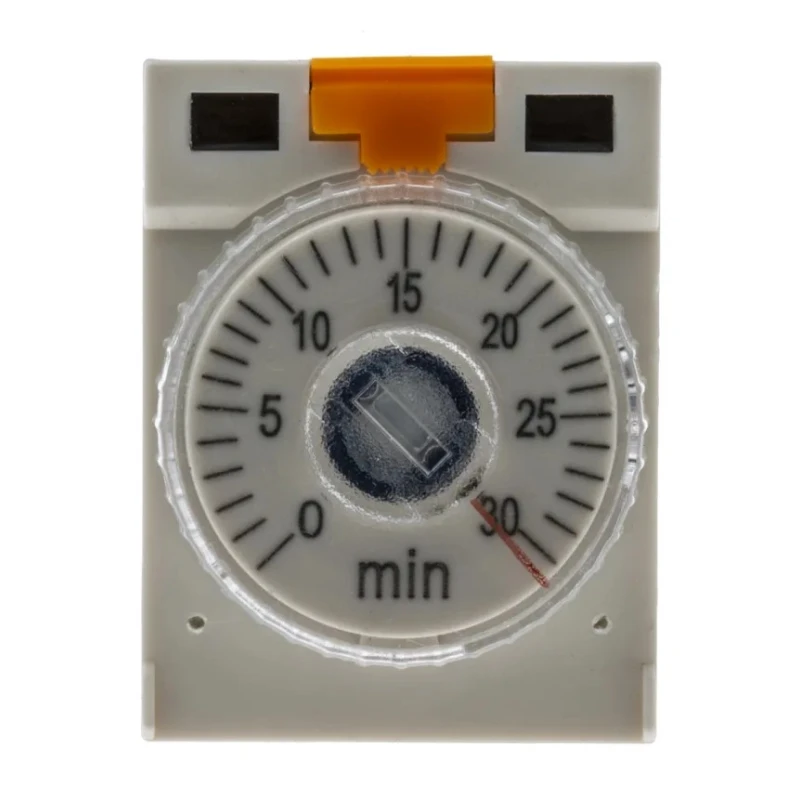

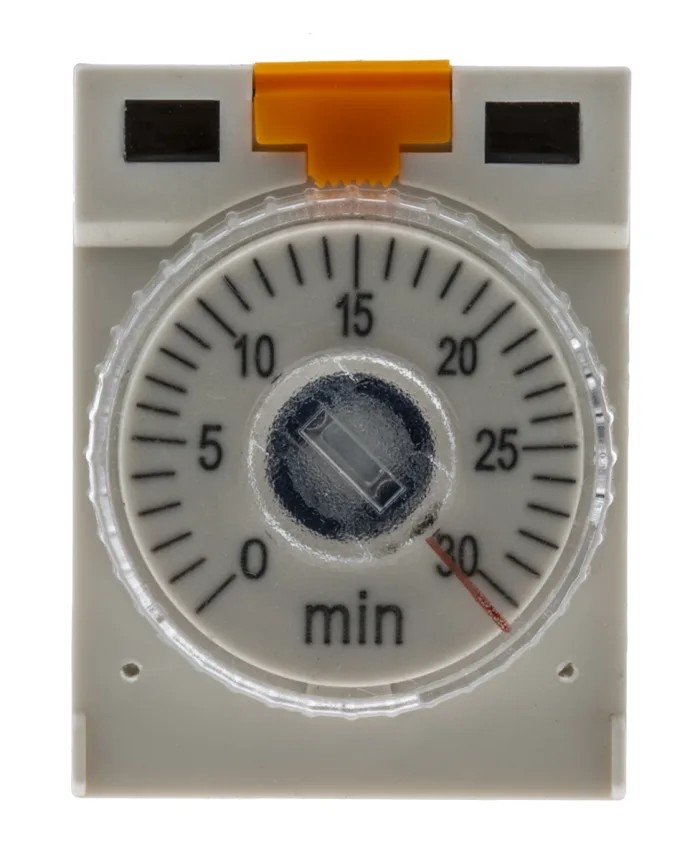

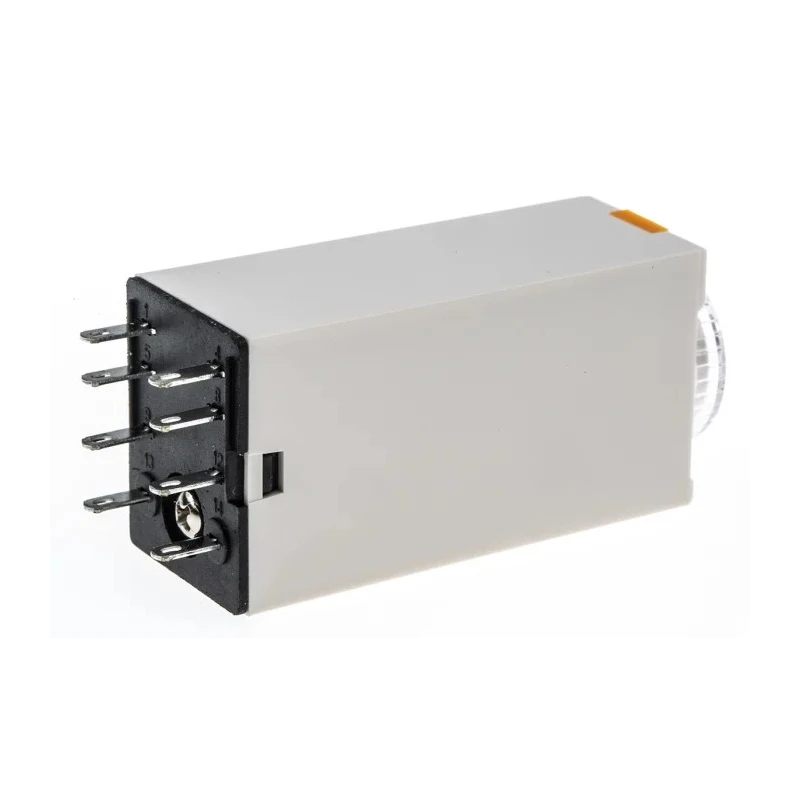

This timer relay employs an 8-pin plug-in terminal type, facilitating easy installation and replacement within control circuits. The dial-based analogue adjustment allows users to set desired timing intervals intuitively, ensuring adaptability for various applications including manufacturing processes, HVAC control systems, and automated machinery.

Built to withstand environmental variances, the relay operates effectively within a temperature range of -10°C to 55°C while complying with RoHS environmental standards. With a switching voltage capacity of 250V AC and rated contact current of 5A, it is suitable for a broad spectrum of control circuit requirements.

The compact dimensions of 53mm length, 21.5mm width, and 2.8mm height ensure minimal space consumption in control panels while maintaining robust performance. The ON Delay mode is ideal for delaying circuit activation to prevent electrical surges or sequencing operations for safety and efficiency.

For compatibility, suitable sockets such as models 121-7802 or 121-7803 are recommended for use with this 8-pin timer relay. The RS PRO 179-2945 model promises reliability and precise timing control for industrial and commercial electrical systems.

Operates at 110V AC supply voltage for reliable timing control. Equipped with 2 contacts and 1 timer function for versatile applications. Dial adjustment enables easy setting of timing within 1 to 30 minutes. Designed with an 8-pin terminal type for plug-in installation.

Supports switching voltage up to 250V AC and contact current of 5A. Compact design measuring 53mm length, 21.5mm width, and 2.8mm height. Suitable for operating temperatures from -10°C to 55°C complying with RoHS standards.

Includes analogue dial display for intuitive operation and ON Delay mode. Country of origin: China ensuring quality manufacturing standards. Explore more Timer Relays and electrical components from RS PRO on EnvMart to meet your industrial automation needs with confidence and quality assurance.
