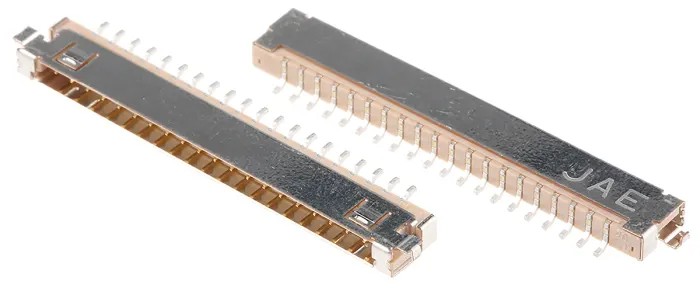

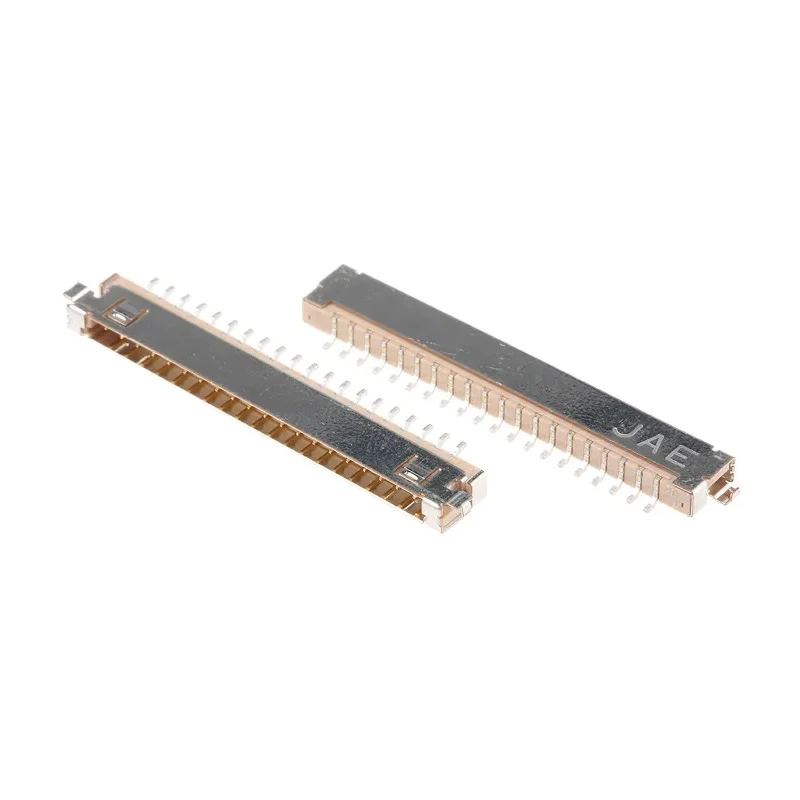

JAE FI 1.25 mm Pitch 20 Way 1 Row Right Angle Surface LVDS Connector Receptacle Solder FI-SE20P-HFE

JAE FI-SE20P-HFE LVDS Connector is a high-quality 20 Way 1 Row Right Angle receptacle designed for surface mount applications with a 1.25 mm pitch. This connector family is engineered for board-to-cable connections, delivering the electrical performance required for Low Voltage Differential Signalling (LVDS) transmissions. It supports high-speed differential signals, suitable for applications such as LCDs, PDPs, rear projection displays, and other devices employing LVDS technology.

The connector features copper alloy contacts and a beige-colored housing made from liquid crystal polymer, combining durability with excellent electrical insulation. The right angle orientation aids in effective PCB layout by minimizing space and enabling efficient cable routing. The solder termination type ensures reliable and sturdy PCB attachment, making it suitable for demanding industrial electronic applications.

Part of the FI series, this connector complies with RoHS directives, ensuring reduced environmental impact by limiting hazardous substances. The FI series is recognized by VESA as the standard for LVDS connectors used in LCD interfaces. Variants in this series include shielded versions that enhance electromagnetic interference (EMI) resistance and latch versions that improve mechanical retention against vibration.

These connectors are widely used across industrial, electronics manufacturing, telecommunications, and display technologies, providing dependable connectivity solutions where signal integrity is critical.

Designed for board to cable applications supporting LVDS electrical performance. Features a 1.25 mm pitch and 20 contacts in a single row. Right angle orientation for compact PCB layouts and efficient routing. Constructed with copper alloy contacts and beige liquid crystal polymer housing for reliable durability.

Termination type is solder, ensuring secure and robust connections on PCBs. Complies with RoHS standards for hazardous substances. Series FI connectors are chosen as standard LVDS connectors by VESA for LCD interfaces. Offers shielded versions for improved EMI performance and latch versions for enhanced mechanical retention.
