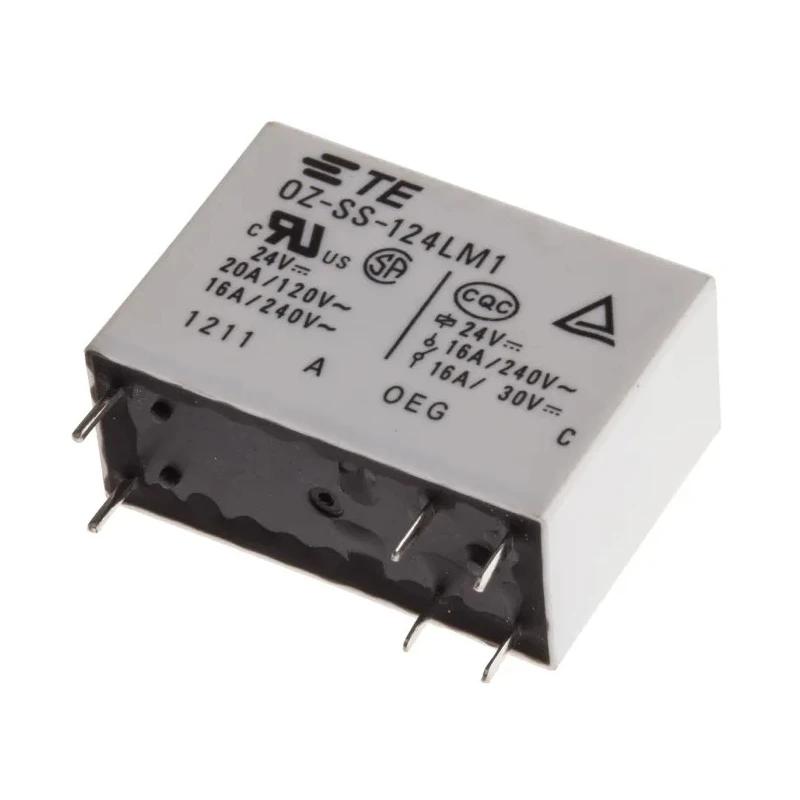

TE Connectivity OZ Series PCB Power Relay 24V DC Coil 16A Switching Current SPST 2-1440002-9

TE Connectivity 2-1440002-9 PCB Power Relay is a high-quality component from the OZ series designed for efficient PCB mounting applications. It features a 24V DC coil with a sensitive coil power rating of 540mW and coil resistance of 1.1kΩ, optimized for low power consumption and high performance.

This power relay supports a switching current of 16A with a single-pole, single-throw (SPST) contact configuration and silver alloy contacts, ensuring robust electrical connectivity with minimal contact resistance of 100mΩ. The relay is capable of switching DC voltages up to 24V and AC voltages up to 240V, making it suitable for a wide range of applications.

Operating reliably within temperatures ranging from -30°C to 70°C, this relay meets essential CSA and UL standards for electrical and safety compliance. Its compact dimensions of 29.2mm length, 12.8mm width, and 20.6mm height make it ideal for space-constrained electronic assemblies.

Typical industrial uses include home appliances, office machines, and automation systems requiring reliable PCB mounted power relays with flux proof sealing and Class 105 (A) insulation for high dielectric strength.

The OZ series relay design provides excellent insulation and mechanical stability. Silver alloy contacts guarantee durability and fade resistance under switching loads. Flux proof sealing enhances reliability in humid or contaminated environments.

Compact form factor enables easy integration into PCB assemblies. Compliance with international standards assures superior safety and performance.

EnvMart offers this TE Connectivity relay for use in electronics and electrical manufacturing, automation equipment, and industrial control systems. Explore our category for similar high-quality Power Relays and components to meet your design needs.
