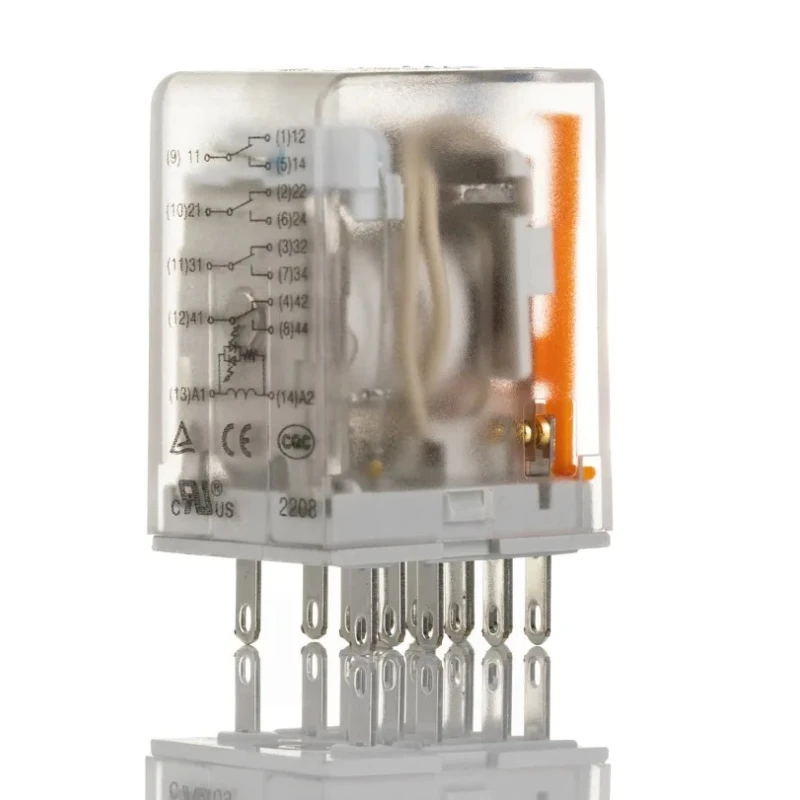

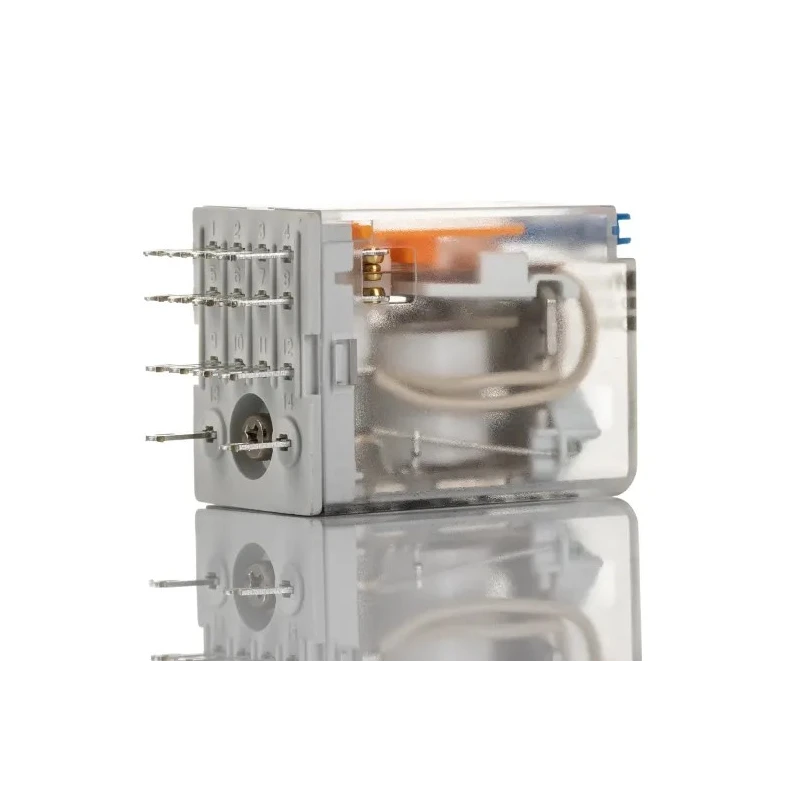

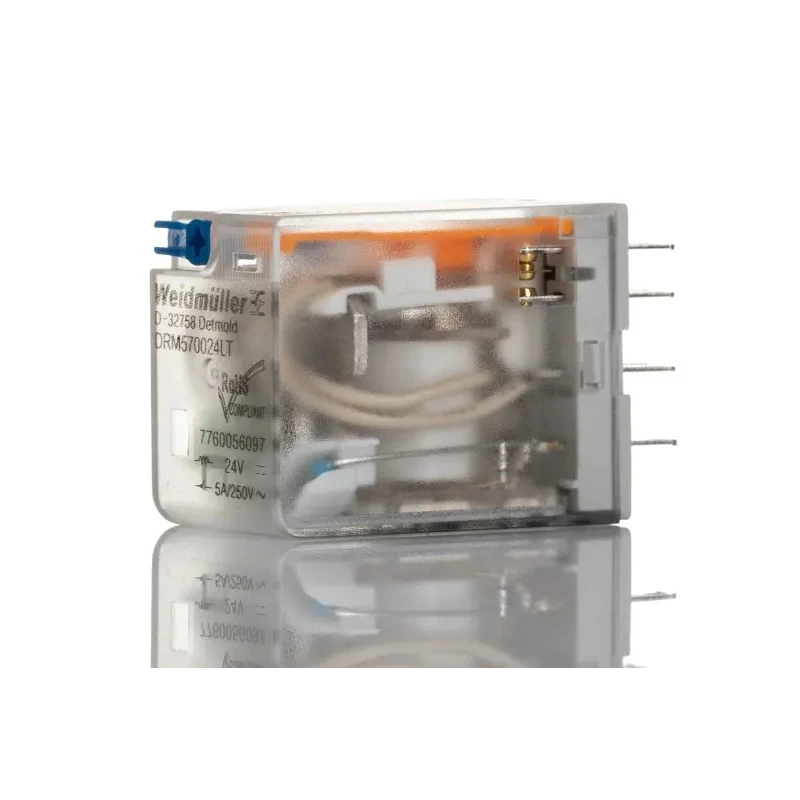

Weidmüller Panel Power Relay 24V DC Coil 5A Switching Current 4PDT DRM Series 7760056097

Weidmüller 7760056097 Panel Power Relay is a highly versatile and compact industrial relay featuring a 24V DC coil with a 5A switching current capacity and 4PDT (Four Pole Double Throw) contact configuration. This relay belongs to the DRM series and is designed specifically for panel mounting with plug-in terminals for easy installation in various industrial setups.

Measuring only 28mm in height, 21.5mm in width, and 36mm in depth, this power relay is space-efficient and fits well into control panels, making it ideal for factory automation, industrial machinery, and transportation applications. The silver alloy contacts provide excellent conductivity and resistance to corrosion, ensuring reliable electrical connections and durability.

Operable within a wide temperature range from -40°C to +60°C, this relay withstands harsh environmental conditions, enhancing its applicability in demanding industrial environments. The coil consumes only 900mW and the relay switches on and off in less than 20 milliseconds, delivering quick response times required in automated control systems.

The relay is equipped with a blue test button optimized for DC voltage testing, facilitating troubleshooting and on-site verification of coil functionality. It complies with cURus certification standards, offering assurance of quality and safety.

Applications of this relay include factory automation lines, heavy industrial machinery control, and transportation system electrical controls. The plug-in design enables rapid replacement and maintenance, reducing downtime.

Features a 24V DC coil voltage for reliable switching operations. Equipped with 4PDT (four poles double throw) contact configuration. Supports switching currents up to 5 amperes with 1.25 kVA switching power. Compact dimensions of 28mm height, 21.5mm width, and 36mm depth enable easy panel mounting.

Silver alloy contacts ensure high conductivity and corrosion resistance. Plug-in terminal type for convenient wiring and installation. Wide operating temperature range from -40°C to 60°C suitable for challenging environments.

Quick switching time of less than 20 milliseconds for fast response. Includes a blue test button specifically for DC voltage testing. Meets cURus standards for safety and quality assurance. Explore EnvMart’s extensive range of industrial Power Relays for reliable and high-performance electrical control components.
