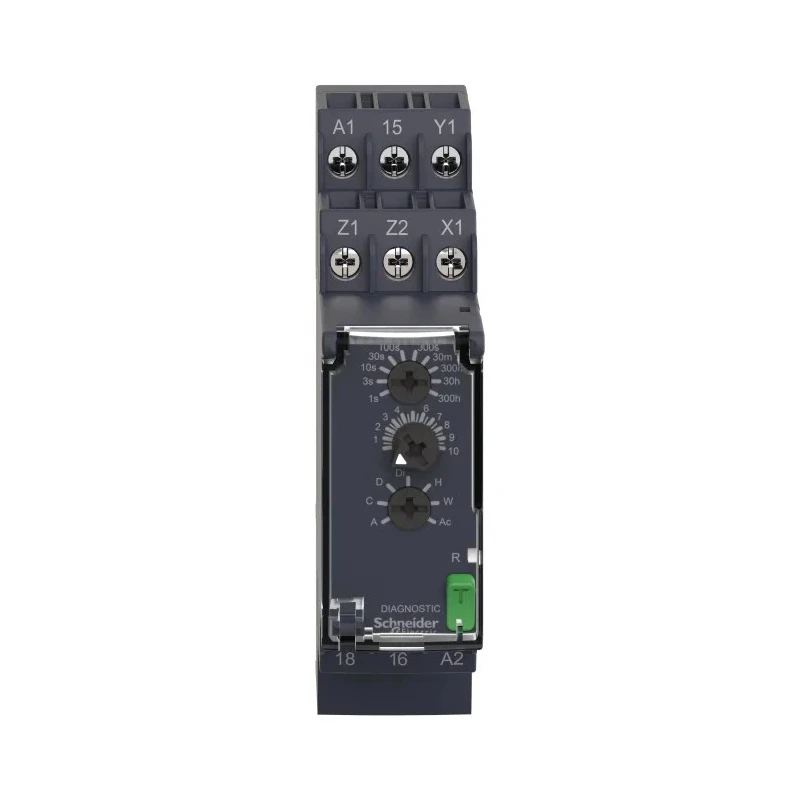

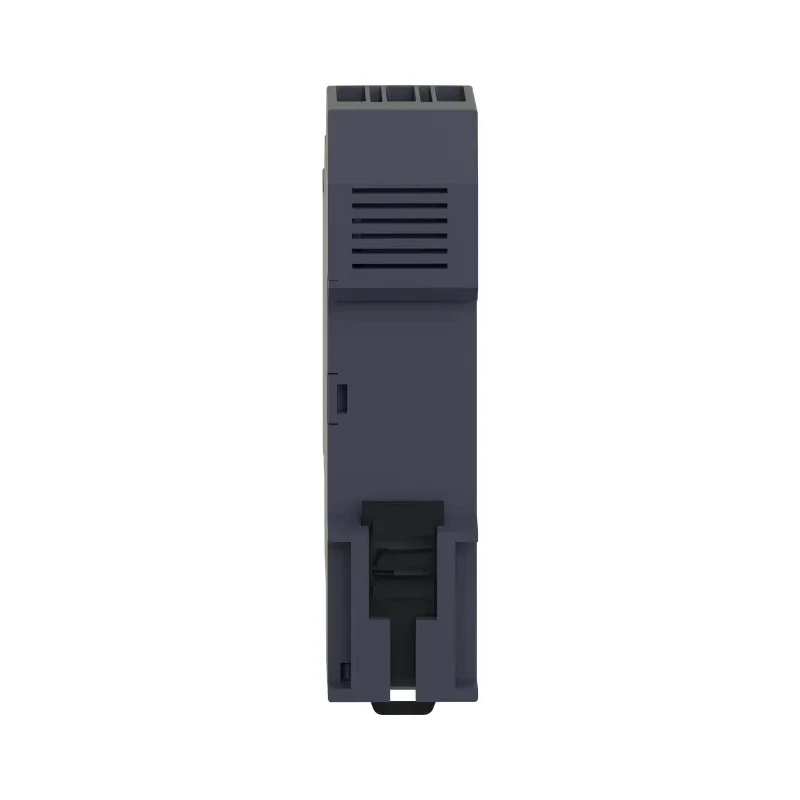

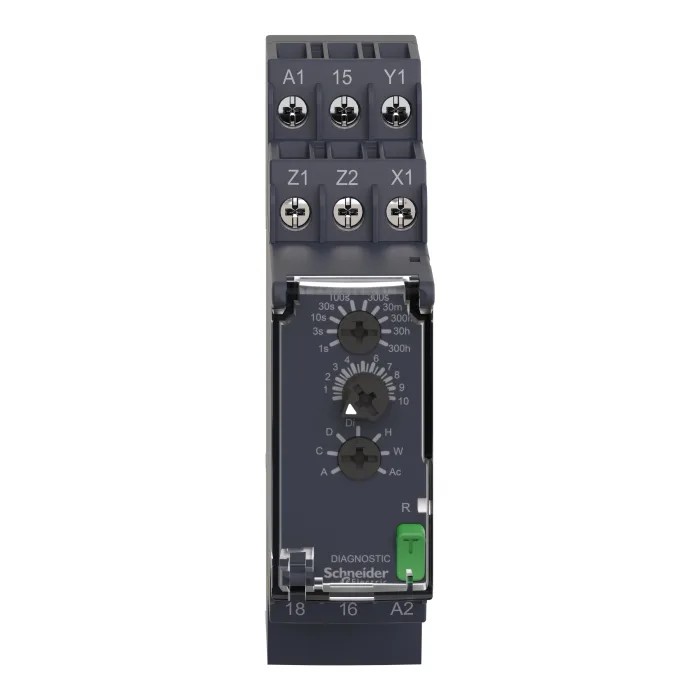

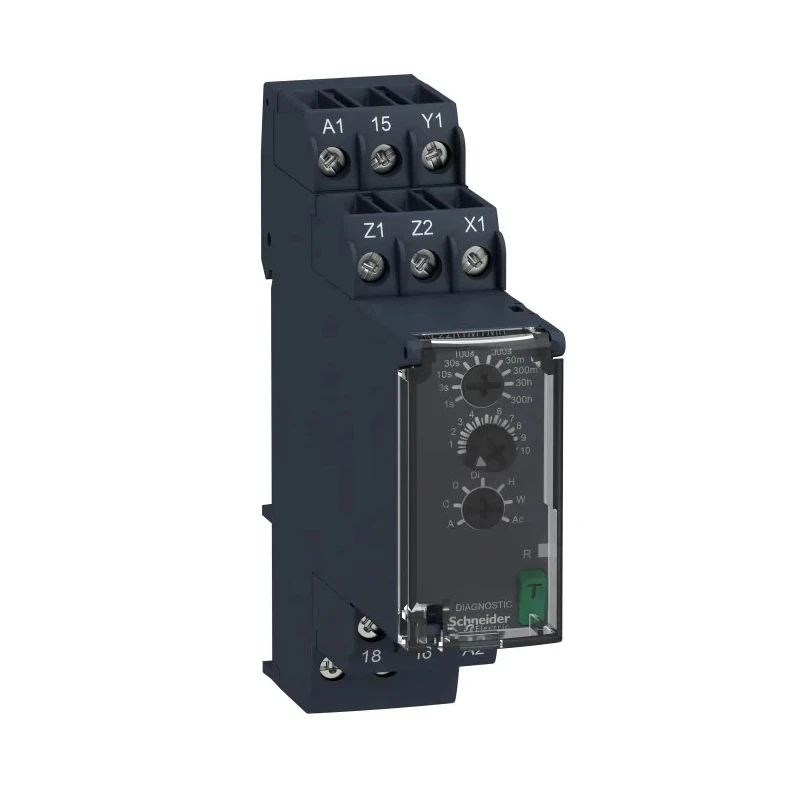

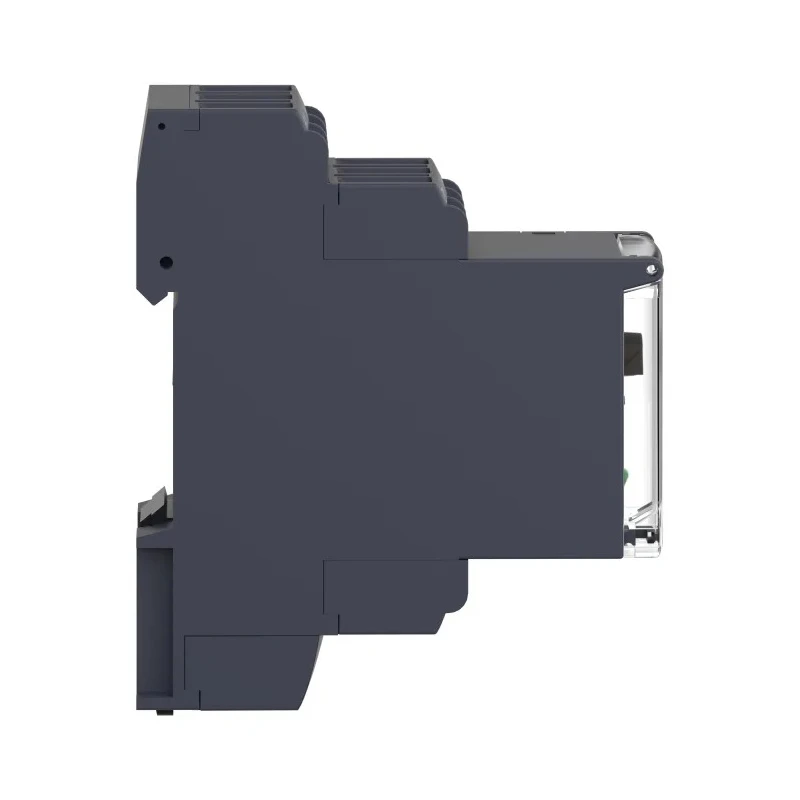

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 1-Contact, 24 to 240 V DC/AC, 8A, Multifuntional RE22R1MYMR

Schneider Electric RE22R1MYMR Harmony Time Series DIN Rail Timer Relay combines multifunctional timing capabilities with broad voltage compatibility, operating between 24 and 240 V DC or AC. It offers a versatile time range from 0.05 seconds up to 300 hours, covering precise to extended delay requirements for various industrial applications.

The relay features a single SPDT contact rated for 8 A at switching voltages of up to 250 V AC. Its IP50, IP40, and IP20 protection ratings ensure finger safety and protection against intrusion of solid objects larger than 1 mm. This device is engineered with a compact body sized at 22.9 mm in length, 90 mm width, and 79.5 mm height for easy integration into control panels and machinery.

The timer relay is designed for DIN rail mounting and employs screw terminals to facilitate straightforward and secure electrical connections without the need for specialized tools. Its construction provides a power-on delay of less than 100 ms to reduce equipment downtime and ensure rapid startup.

With a wide operating temperature range of -20°C to +60°C and an impulse withstand voltage of 5 kV, this relay is robust for demanding industrial environments. Its long mechanical lifespan of 10 million cycles guarantees durable performance over time.

Operational status is indicated via clear yellow and green LEDs with steady or flashing modes, supporting fast diagnostic checks. Typical applications include activation of pneumatic cylinders, security systems, and various automation equipment.

Operates across a wide multifunctional time range from 0.05 seconds to 300 hours. Features a single-pole double-throw (SPDT) contact configuration rated for 8 A current. Suitable for DIN rail mounting with screw terminals for secure installation.

Offers robust IP ratings of IP50, IP20, and IP40 for durable protection. Supports operation within a temperature range of -20°C to +60°C for adaptability in harsh environments. Compact dimensions with 22.9 mm length, 90 mm width, and 79.5 mm height.

Impulse withstand voltage of 5 kV to guard against power surges. Long mechanical lifespan rated for 10 million cycles ensuring reliable performance. LED indicators provide clear operating status with steady and flashing modes.

Designed for industrial automation and control applications including pneumatic cylinders and security equipment.

This Timer Relay is an essential component for industrial automation, manufacturing process controls, and HVAC systems requiring precise timing functions. Its reliability and compact design facilitate efficient integration in electronic panels and controllers.
