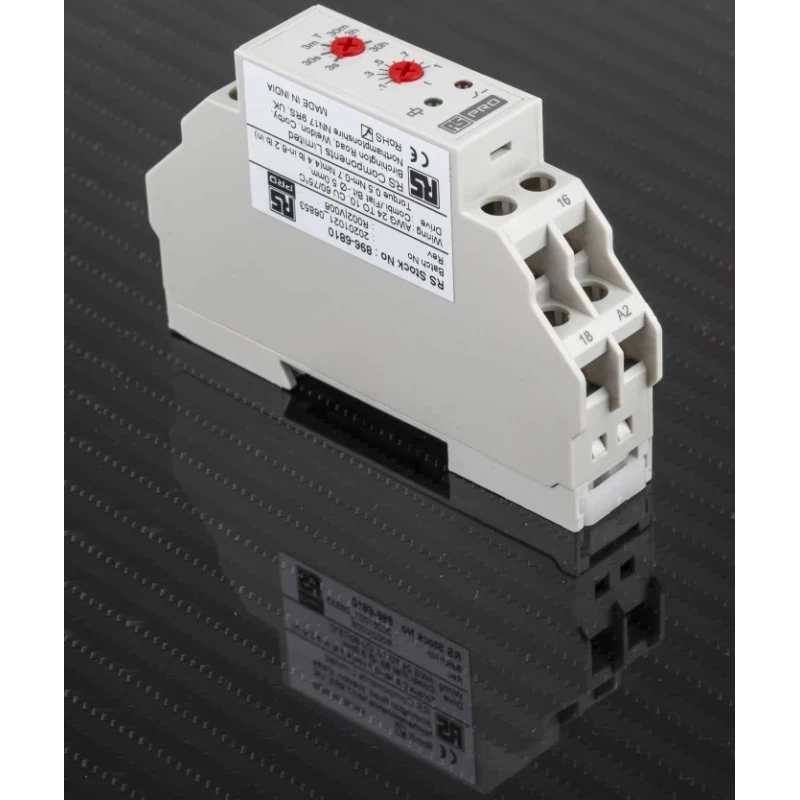

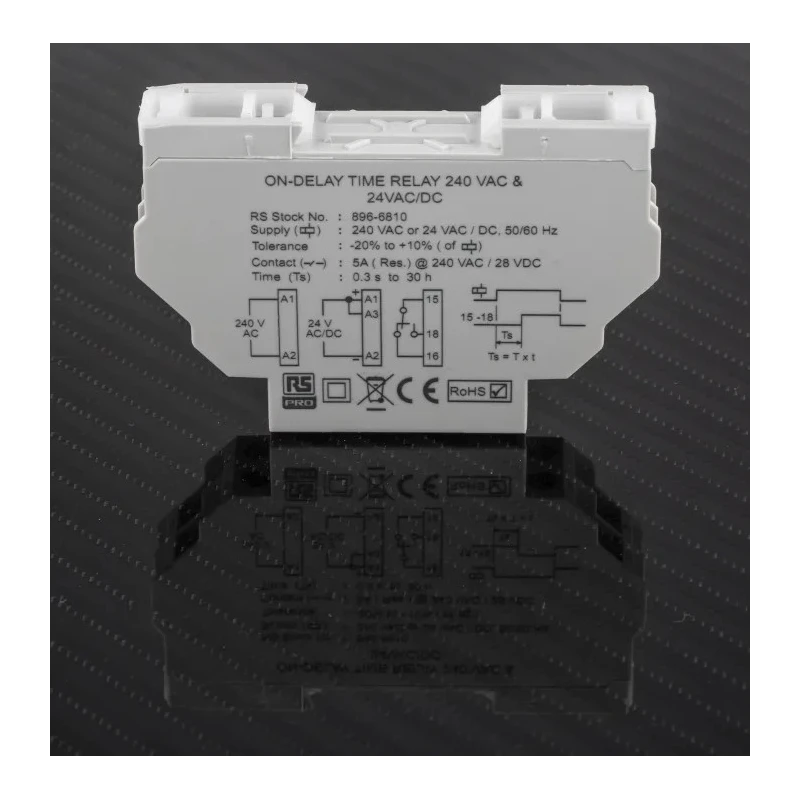

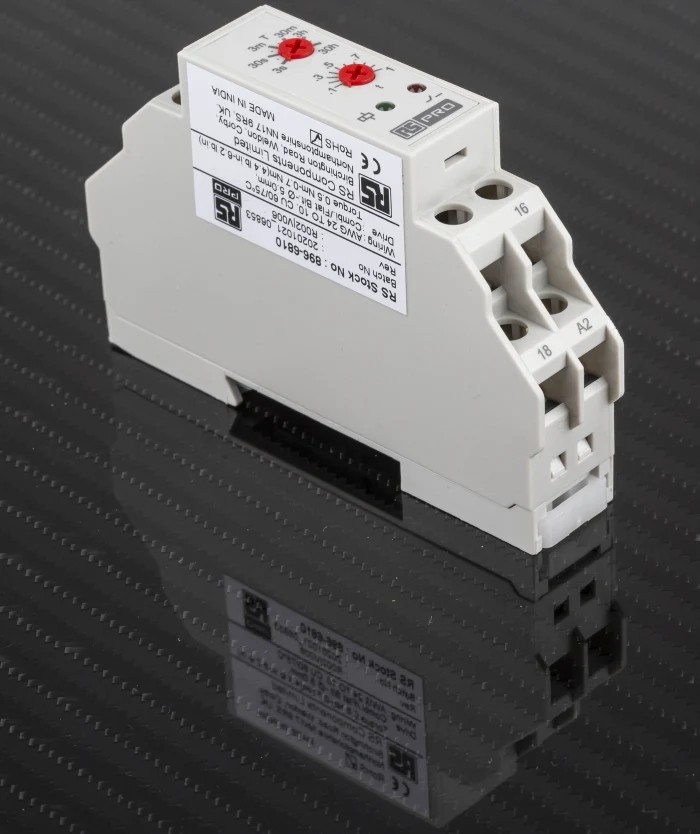

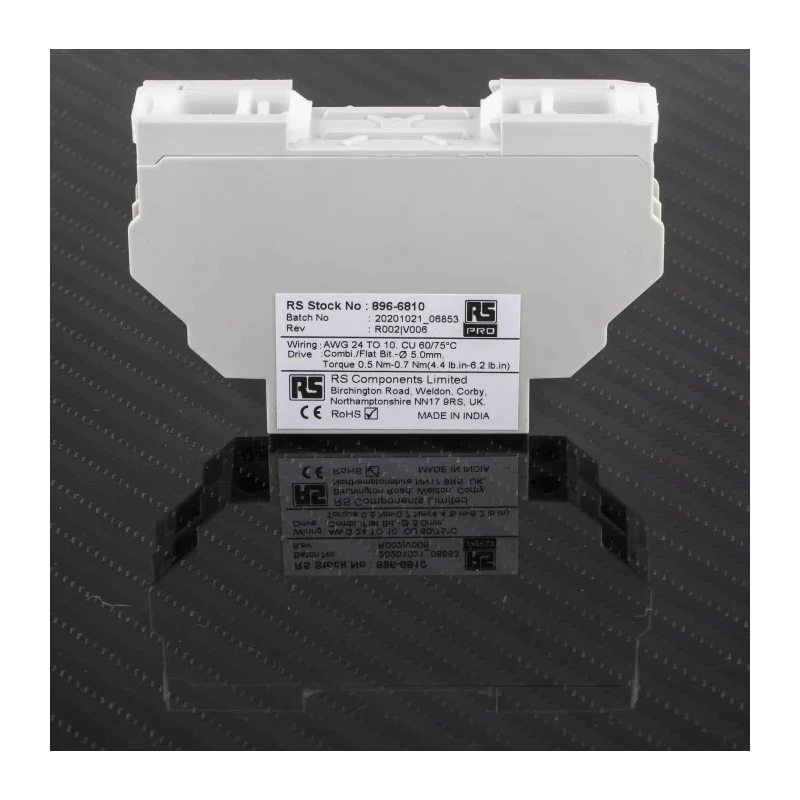

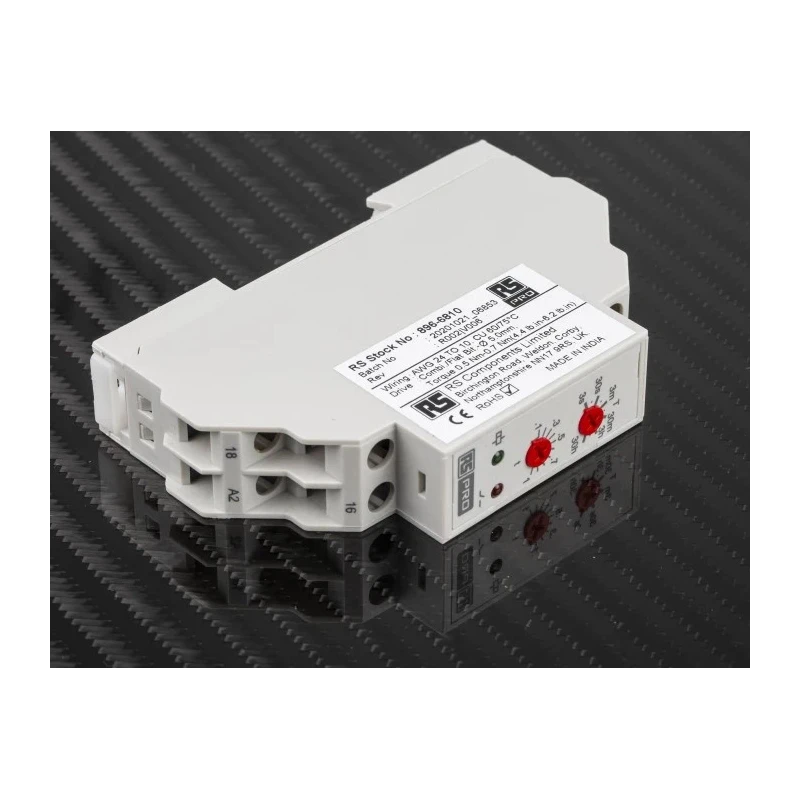

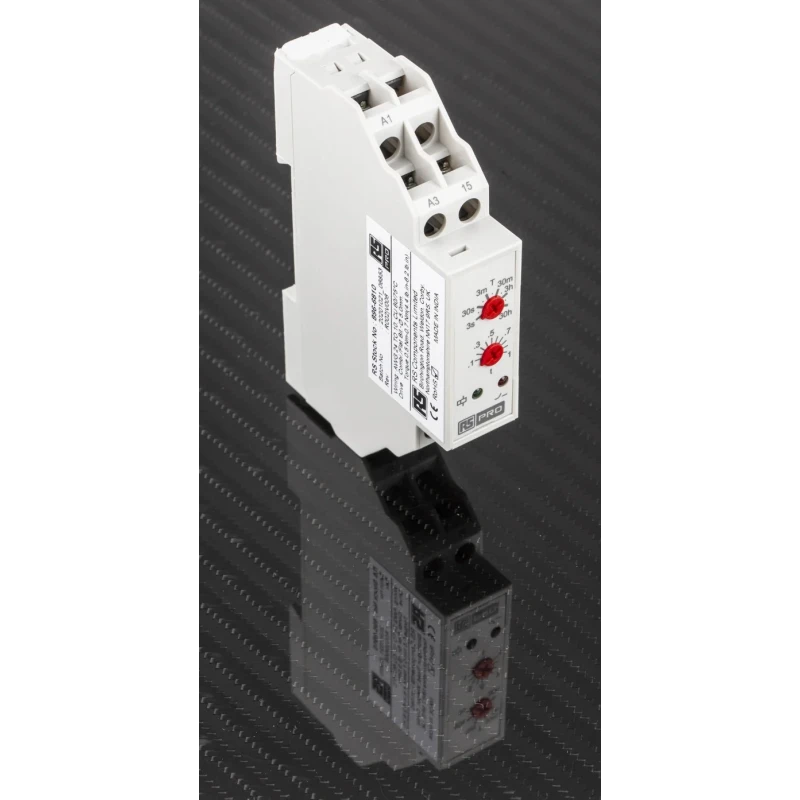

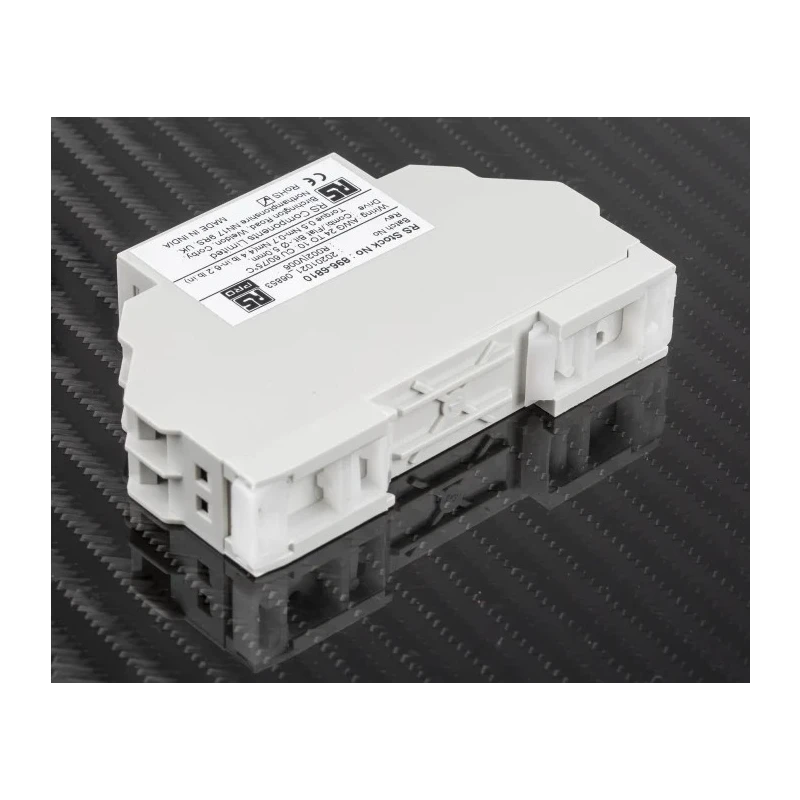

Eaton RS PRO DIN Rail Timer Relay 1-Contact 24 V dc 24V ac 240 V ac 0.3 s to 30 h ON Delay SPDT 896-6810

Eaton 896-6810 RS PRO DIN Rail Timer Relay is a high-quality 1-contact timer relay designed for precise time-delay control in electrical and automation systems. It supports 24 V dc, 24V ac, and 240 V ac supply voltages, providing flexible installation options across various industrial applications.

The relay operates with an ON Delay timing function covering a wide range from 0.3 seconds up to 30 hours, enabling accurate control of operations where delayed switching is critical. Featuring a single-pole double-throw (SPDT) contact configuration, it ensures versatile switching capabilities for different circuit requirements.

This timer relay comes in a compact 17.5 mm width form factor optimized for DIN rail mounting, making it ideal for installations requiring space efficiency. Its robust construction includes screw terminals for reliable electrical connections and an IP20 rating on terminals and IP40 protection on its enclosure, ensuring durability in industrial environments.

Visual status indication is provided by LED indicators - a green LED signals power supply to the input terminals, while a red LED blinks during timing and stays on when the relay output is energized. These features allow easy monitoring of operational status at a glance.

Designed to operate reliably within a temperature range of -10°C to 55°C, the 896-6810 timer relay is suitable for a variety of industrial, manufacturing, HVAC, and automation settings requiring dependable timing control.

The relay features a single-pole double-throw (SPDT) contact configuration for versatile switching. Compact 17.5 mm width design suitable for tight spaces and DIN rail mounting. Integrated dual voltage capability allows operation with both AC and DC supplies.

LED indicators provide clear power and relay status with green power and red output indication. Supports a wide operating temperature range from -10°C to 55°C suitable for industrial environments. Equipped with screw terminal type for secure and easy wiring connections.

Offers IP20 protection on terminals and IP40 on enclosure for electrical safety. Compliant with RoHS standards, ensuring environmental safety.

This Eaton RS PRO timer relay offers a reliable, compact solution for time-delay switching needs in industrial automation, control panels, power management, and electrical distribution systems. Its robust protection rating and clear status indicators simplify maintenance and monitoring, enhancing operational efficiency.
