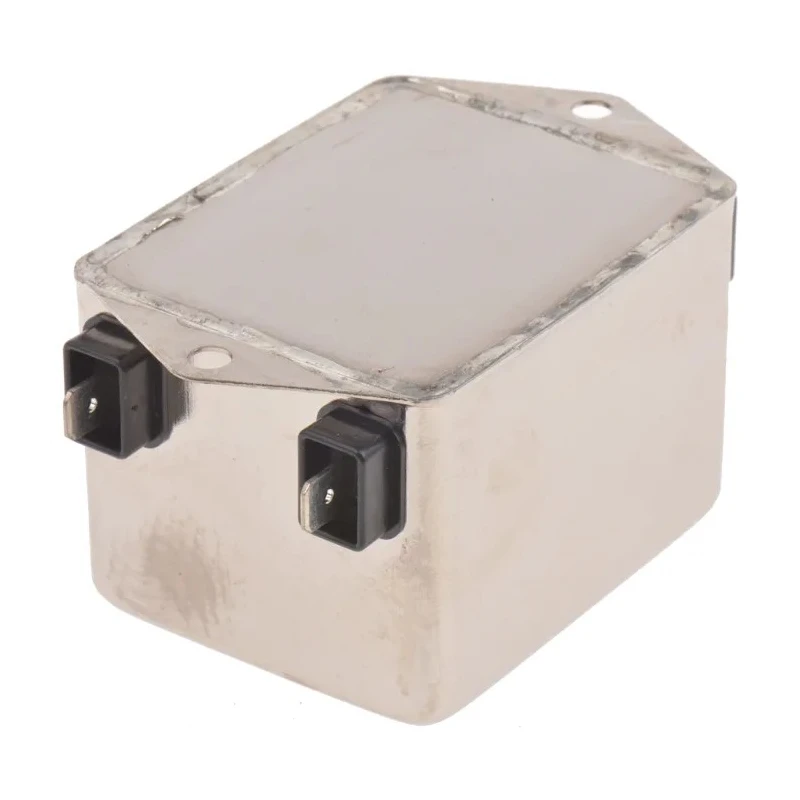

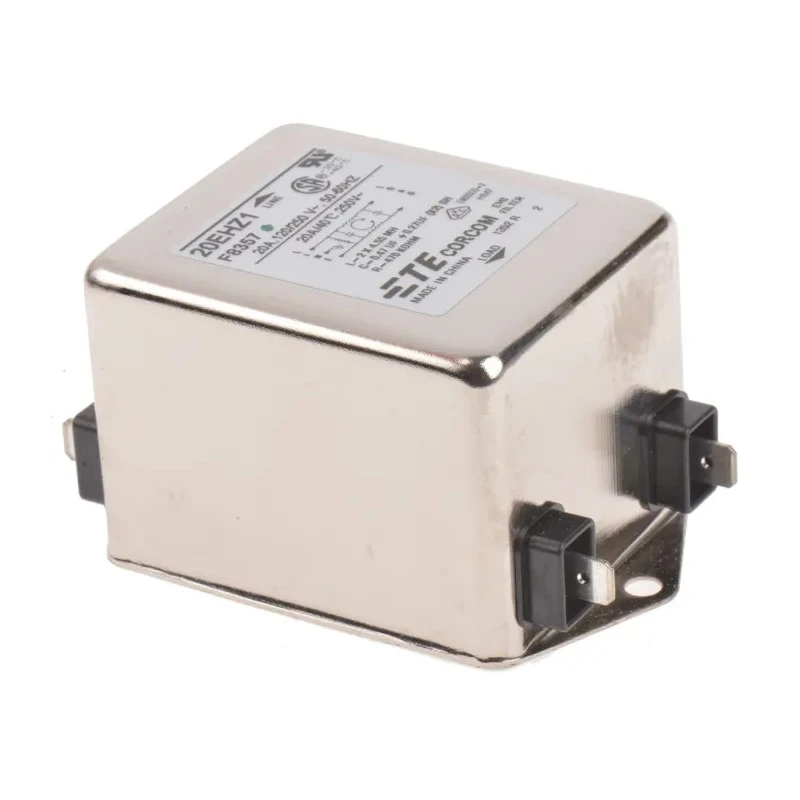

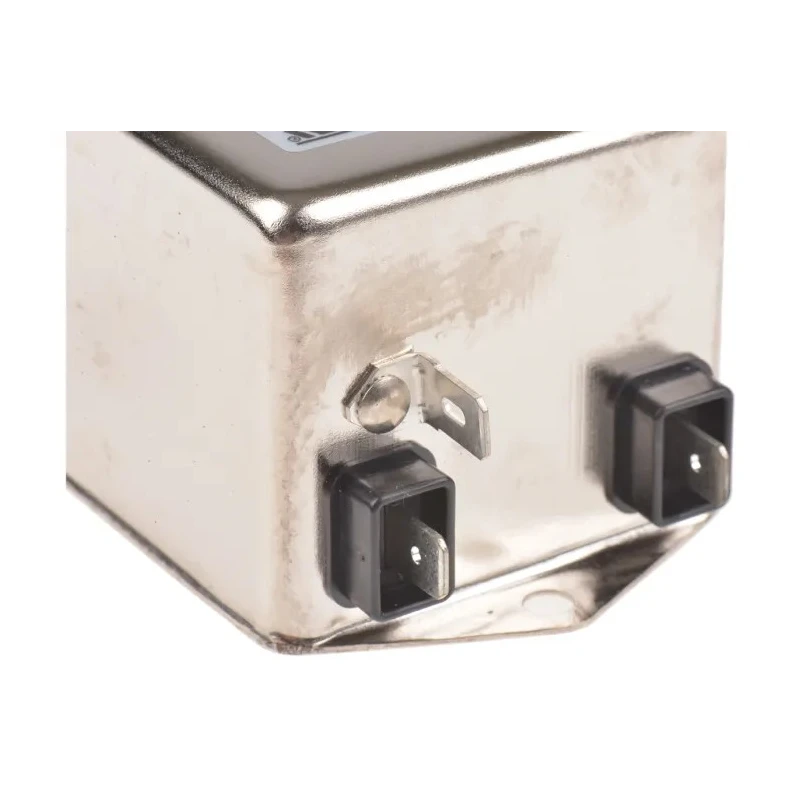

TE Connectivity Corcom HZ Flange EMI Filter 20A 250V AC 50Hz 60Hz Fast-On Termination 3-1609037-2

TE Connectivity 3-1609037-2 Corcom HZ Flange EMI Filter is a high-performance power line filter designed for medical and sensitive electronic applications. It operates at 20A maximum current and 250V AC, suitable for 50Hz and 60Hz power systems. The single-phase filter uses a flange mount for secure and stable installation, with Fast-On termination style for rapid connections.

The Corcom HZ series is widely recognized for providing efficient EMI/RFI filtering solutions across various industries including industrial, medical, and commercial electronics. The filter demonstrates excellent attenuation for RFI noise in the frequency range of 10kHz to 30MHz, effectively protecting sensitive equipment from electromagnetic interference.

Its electrical characteristics include a capacitance of 740nF and inductance of 4.55mH, contributing to its noise reduction capabilities. The device is engineered to maintain low leakage current of 5μA, making it highly suitable for medical device compliance where safety and performance are critical. Operating temperatures range from -40°C to 40°C, ensuring reliable function in diverse environments.

With a compact form factor measuring approximately 89.9mm in length, 55.63mm in height, and 45.9mm in depth, the filter is both size and cost effective. The resistance of 470kΩ enhances its durability and filtering performance. Moreover, the Corcom HZ series is certified under UL1283 standard, confirming adherence to international safety and performance requirements.

This EMI filter is ideal for industrial, medical, laboratory, and commercial applications requiring high-quality power line filtering. Its robust design and electrical performance make it a reliable choice for reducing electromagnetic disruptions in critical devices and machinery.

This EMI filter features a flange mount style for secure installation. Fast-On termination style enables quick and reliable electrical connections. Capacitance of 740nF and inductance of 4.55mH ensure effective noise attenuation.

Designed specifically for medical and sensitive equipment to reduce electromagnetic interference. Operates reliably within a temperature range of -40°C to 40°C. Compact dimensions of approximately 89.9mm length, 55.63mm height, and 45.9mm depth.

Low leakage current of 5μA aids compliance with strict medical safety standards. Resistance value of 470kΩ contributes to durability and filter performance. Certified under UL1283 standard ensuring safety and performance.
