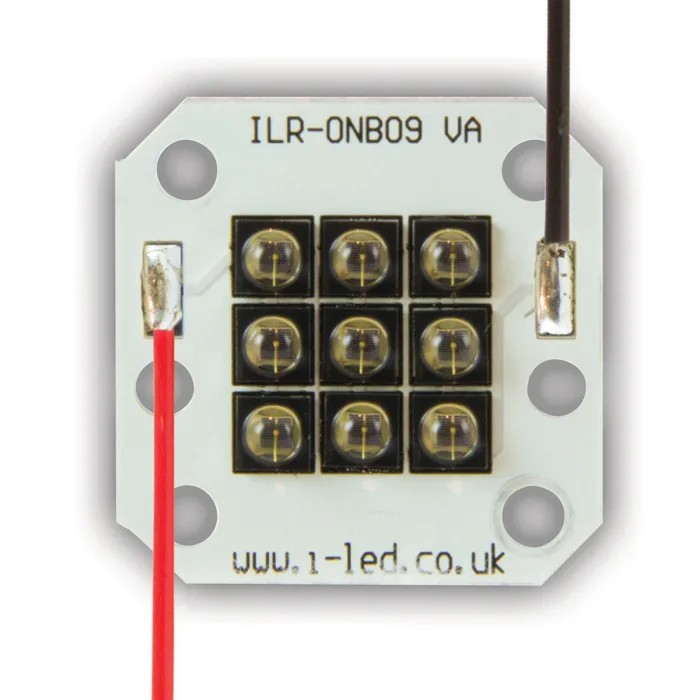

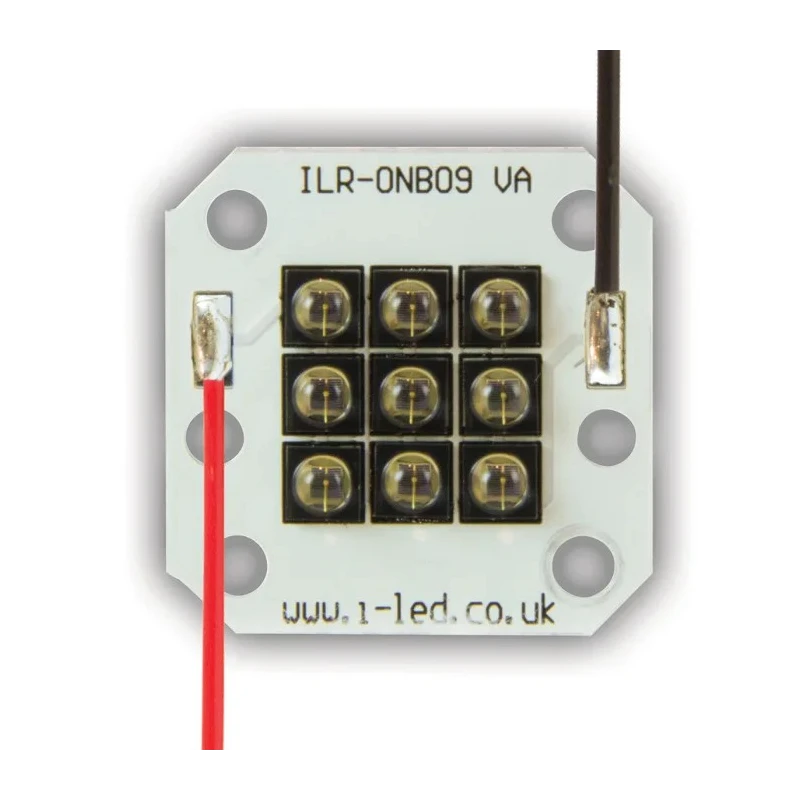

Intelligent LED Solutions OSLON Black PowerCluster 9-LED 850 nm IR LED Array PCB Screw Mount ILR-IO09-85SL-SC211-WIR200.

Intelligent LED Solutions ILR-IO09-85SL-SC211-WIR200. is a high-performance OSLON Black PowerCluster infrared LED array featuring nine Osram Oslon Black LEDs that emit at a peak wavelength of 850 nm. Built on a compact aluminium PCB substrate measuring 25 mm by 25 mm by 3.85 mm, this IR LED array offers excellent thermal management and durability for industrial applications.

The LED array provides a radiant flux and intensity of 12060 mW, delivering powerful infrared illumination ideal for applications including surveillance systems, IR illumination for cameras, machine vision, night vision lighting, and driver assistance technologies. It is pre-wired with 200 mm long wires for quick electrical connections and includes mounting holes compatible with M3 screws for straightforward mechanical integration.

With a recommended current range from 100 mA up to 1,000 mA, the PowerCluster IR LED array provides flexible operation across demanding use cases. The robust design ensures a lifetime of up to 100,000 hours to 70% of its original brightness, making it suitable for continuous industrial and commercial use.

Certified to IEC 62471 safety standards, this device requires appropriate heat sinking to prevent overheating and maintain performance, as it can be damaged by excess current or poor thermal management. The array is made in the United Kingdom and is designed specifically to maximize IR output for precision applications.

The PowerCluster design combines nine high-power LEDs to maximize emission efficiency. Aluminium substrate improves heat dissipation and device longevity. Screw mount holes support secure and stable installation. Pre-wired with 200 mm wires for fast and reliable PCB connections.

Continuous operation supported with lifetime up to 100,000 hours. Ideal for industrial IR illumination and vision sensor systems. Certified to IEC 62471 for safe infrared emission levels. Compact and low-profile package fits tight assemblies.

Operating current range of 100 to 1,000 mA allows adjustment for specific brightness and power needs.

Use Intelligent LED Solutions ILR-IO09-85SL-SC211-WIR200. IR LED Arrays in commercial, industrial, surveillance, and automotive vision applications requiring reliable infrared illumination. This product is part of EnvMart's comprehensive IR LED catalog, optimized for high-quality lighting and sensing solutions.
