STMicroelectronics High Brightness LED Array Driver Evaluation Board STEVAL-ILL062V1

Free Delivery in India | Lowest Global Shipping Charges

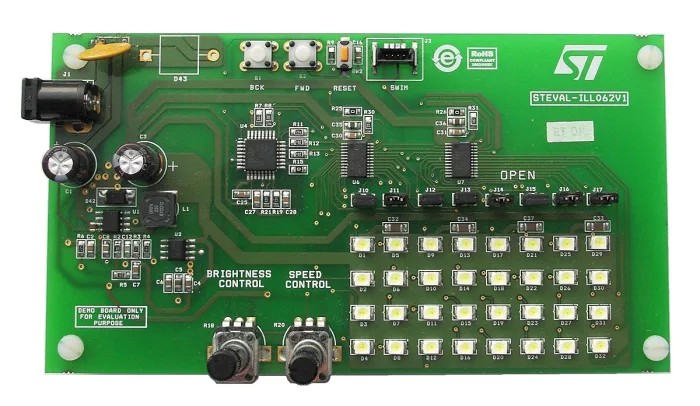

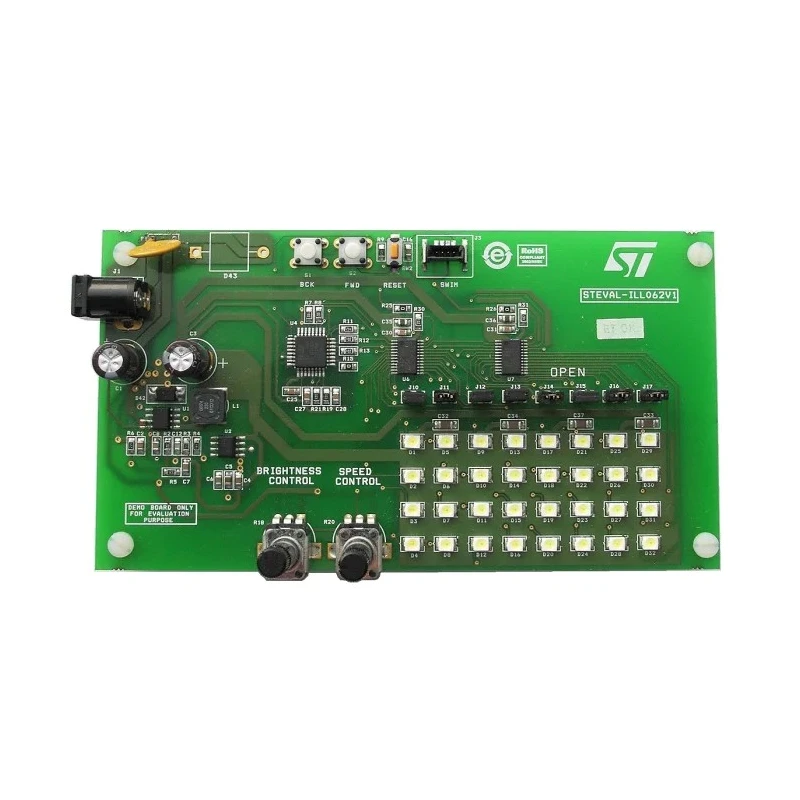

STMicroelectronics High Brightness LED Array Driver Evaluation Board STEVAL-ILL062V1

Name: STMicroelectronics High Brightness LED Array Driver Evaluation Board STEVAL-ILL062V1
Brand: STMicroelectronics
SKU: 383592
Price: 72.98 USD
Availability: InStock



Category LED Array Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Model	STEVAL-ILL062V1
Microcontroller	8-bit STM8S
Standards/Approvals	RoHS
Kit Classification	Evaluation Board
Featured Device	STP16CPC26
Kit Name	High Brightness LED Array Driver

Key Features

The board features a 16-channel constant current LED sink driver.
An 8-bit STM8S microcontroller enables configuration and control via SPI interface.
Integrated industrial-grade L7981D DC-DC converter powers the board efficiently.
Supports pre-configured display patterns such as rolling text, wave effect, and dot sequences.
Includes 32 white LEDs with dedicated test points for diagnostics.
Potentiometer to adjust brightness and the speed of displayed patterns.
SWIM connector allows programming of the microcontroller.
Push buttons enable mode changes for backward and forward navigation.

Product Description

The STMicroelectronics STEVAL-ILL062V1 is a high brightness LED array driver evaluation board optimized for evaluating the 16-channel STP16CPC26 LED sink driver IC. This evaluation board includes an embedded 8-bit STM8S microcontroller that controls and configures the LED driver via an SPI interface, allowing adjustable brightness and speed settings for dynamic LED pattern displays.

Power is supplied through an industrial-grade L7981D DC-DC converter, ensuring stable voltages and power management. The board is furnished with 32 white LEDs arranged to demonstrate pre-programmed effects including rolling text, wave effects, and dot sequences, which helps in rapid prototyping and testing of LED array lighting applications.

Design features include accessible LED test points for debugging, a potentiometer to fine-tune brightness and pattern speed, and push buttons for user interaction to switch display modes. A SWIM programming connector facilitates firmware updates for the microcontroller.

Suitable for industrial, electronic development, and lighting system integration applications, the STEVAL-ILL062V1 supports an input power range from 6V to 24V DC, offering flexibility in various test environments.

The evaluation board enables comprehensive assessment of the STP16CPC26 LED driver IC. Includes 32 white LEDs demonstrating versatile lighting patterns. Embedded STM8S microcontroller interface allows dynamic control. Industrial-grade DC-DC converter provides efficient power supply.

Adjustable brightness and speed through potentiometer and buttons. Facilitates firmware programming via SWIM connector.

This evaluation kit is ideal for engineers and developers working on LED lighting design, embedded system testing, and educational projects involving LED Arrays. Exploring the capabilities of STMicroelectronics' advanced LED drivers has never been more accessible and efficient.
