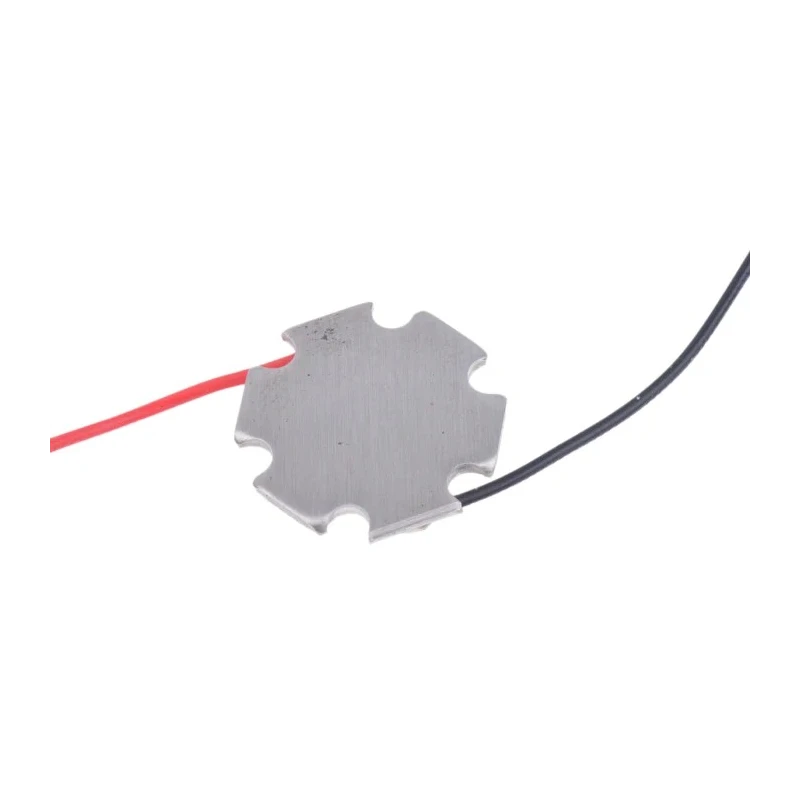

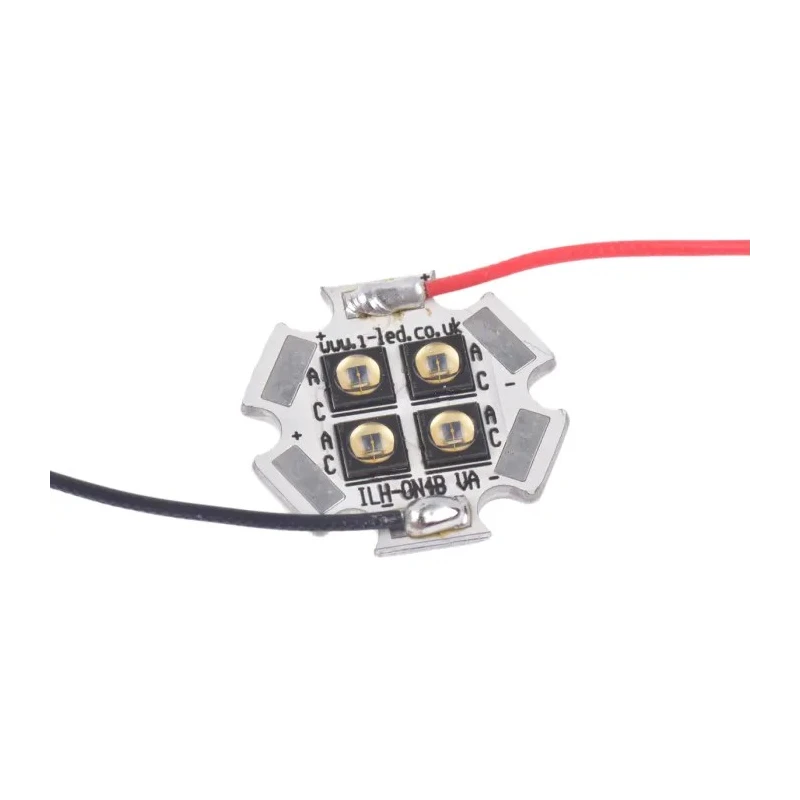

Intelligent LED Solutions OSLON Black PowerStar 940 nm IR LED Array PCB Surface Package ILH-IW04-94SL-SC211-WIR200.

Intelligent LED Solutions ILH-IW04-94SL-SC211-WIR200. IR LED Array PCB Surface package offers high power density with four OSLON Black PowerStar 940 nm IR LEDs in a compact aluminium substrate design. This array uses silicon LED material with dome lenses and delivers 4120mW radiant flux and 860mW/sr radiant intensity at a 45° angle of half intensity.

The product is designed for industrial and commercial applications requiring reliable infrared illumination such as security and surveillance systems, machine vision, night vision lighting, and automotive driver assistance. The aluminium PCB substrate ensures excellent thermal management while the supplied 200 mm connecting wires facilitate straightforward assembly. Mounting holes for M3 screws make installation robust and easy.

With a maximum supply voltage of 14V and a lifetime expectancy up to 100,000 hours at 70% brightness, this IR LED array provides long-lasting performance under demanding operating conditions. It meets stringent standards such as CE, IEC/EN 62384, IEC 61547, IEC 61000-3-2, and IEC 62471:2006, guaranteeing quality and regulatory compliance.

The compact dimensions of 20 x 20 x 3.5 mm allow flexible integration into diverse electronic equipment and lighting systems. Multiple PowerCluster modules can be connected to form longer chains to scale infrared illumination power as needed.

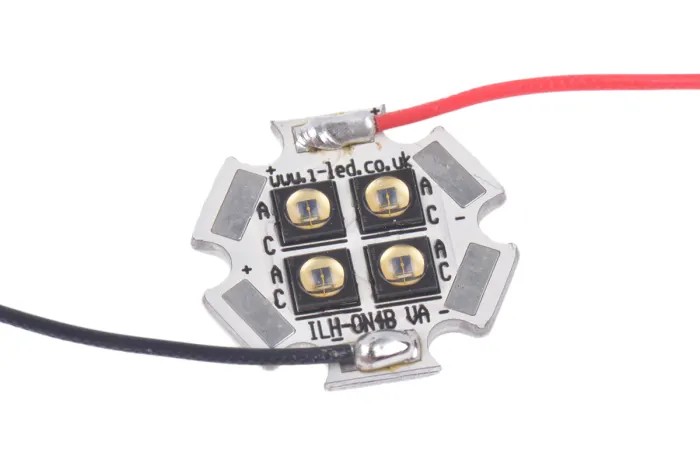

The LED array contains 4 high-efficiency silicon LEDs with dome lenses for optimal IR light output. Operates at 940 nm peak wavelength, suited for IR applications in various industries. Surface mount PCB package with aluminium substrate ensures durability and heat dissipation.

Compliant with CE, ENEC, and IEC standards for electromagnetic compatibility and safety. Designed for use in surveillance, security, machine vision, and driver assistance systems requiring high power IR illumination.

This IR LED Array is a premium solution for industrial, security, automotive, and laboratory applications requiring concentrated infrared light sources. Its compact design and comprehensive certifications support versatile, long-term use. Explore more high-quality electronic components and IR LED solutions with Intelligent LED Solutions and EnvMart.
