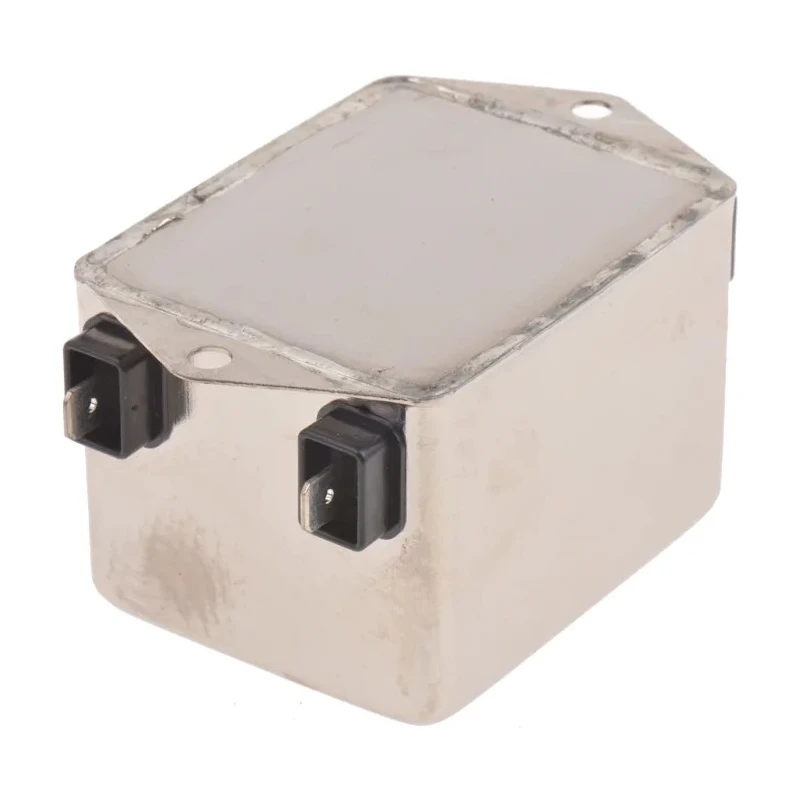

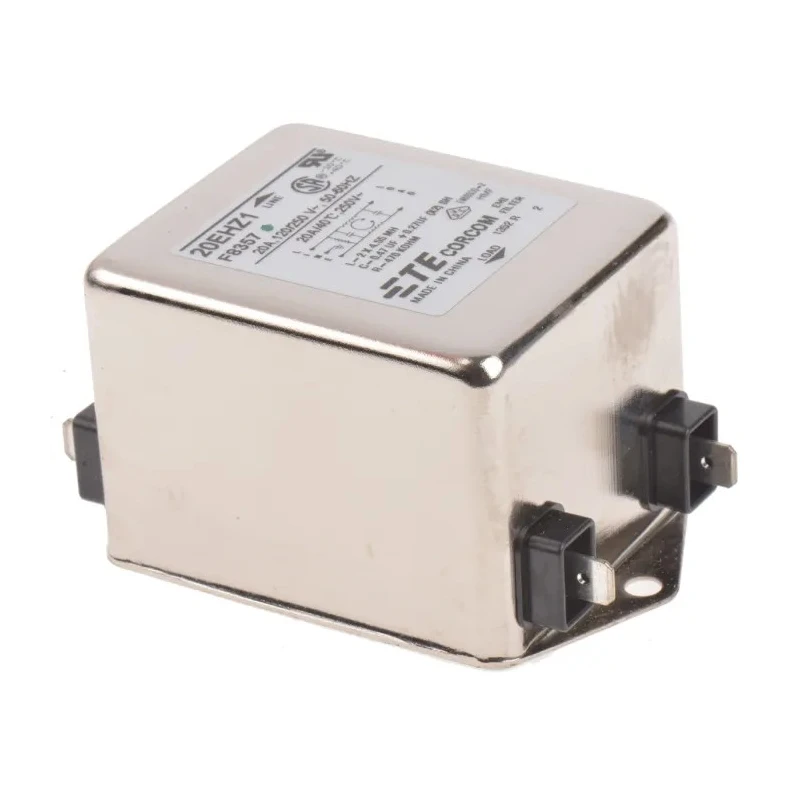

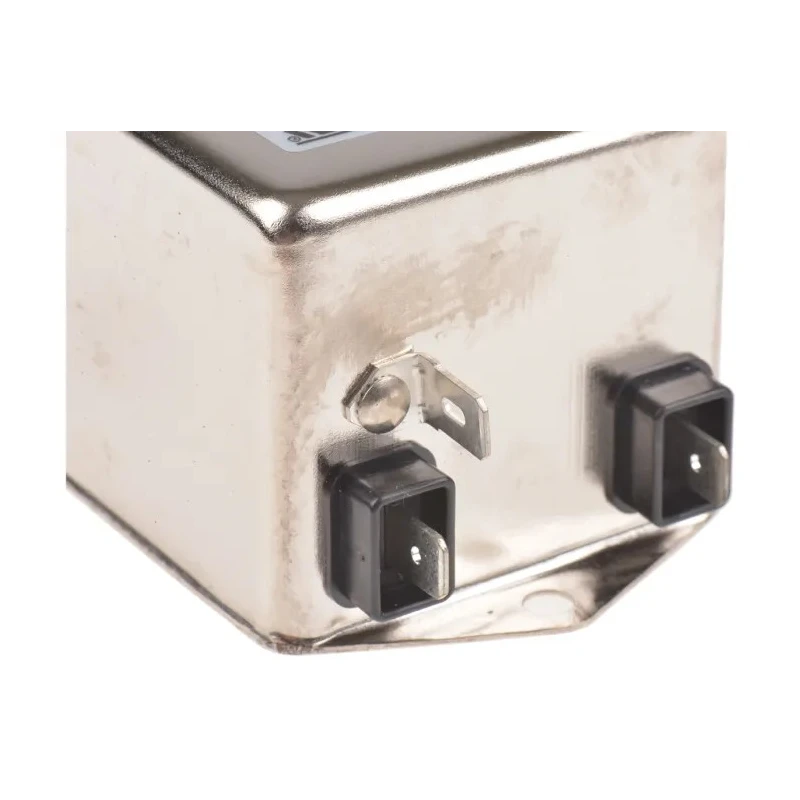

TE Connectivity Corcom HZ Flange EMI Filter 20A 250V AC 50Hz 60Hz Fast-On Termination 3-1609037-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 55.63mm |
| Length | 89.9mm |
| Depth | 45.9mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | Corcom HZ |
| Maximum Operating Temperature | 40°C |
| Number Of Stages | 1 |
| Resistance | 470kΩ |
| Capacitance | 740nF |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 20A |
| Number of Phases | 1 |
| Leakage Current | 5μA |
| Maximum Voltage | 250V ac |
| Inductance | 4.55mH |
| Standards/Approvals | UL1283 |
| Termination Style | Fast-On |
Key Features
- This Corcom HZ series filter is designed for medical and industrial power line EMI suppression.
- It features a flange mount type with fast-on termination style for easy installation.
- Operates effectively at frequencies of 50Hz and 60Hz with a capacitance of 740nF and inductance of 4.55mH.
- Offers low leakage current of 5 μA and operates reliably between -40°C to 40°C.
- Meets UL1283 standards for safety and electromagnetic compatibility.
Product Description
TE Connectivity 3-1609037-2 Corcom HZ series flange EMI filter is engineered to provide high performance EMI/RFI suppression for medical, industrial, and electronic applications requiring reliable noise filtering.
Operating at a maximum current of 20A and voltage of 250V AC, this single-phase power line filter efficiently attenuates electromagnetic interference across the 50Hz and 60Hz frequency ranges.
The filter's fast-on termination style and flange mount design enable secure and straightforward installation in compact spaces. Its low leakage current of only 5 μA ensures suitability in sensitive electrical environments such as medical equipment.
With a capacitance of 740nF and inductance of 4.55mH, it provides effective attenuation of RFI noise from 10kHz to 30MHz, enhancing device performance and compliance. The product meets stringent UL1283 standards, reflecting compliance with major safety and electromagnetic compatibility requirements worldwide.
This EMI filter offers robust noise attenuation for power line interference in electronic and medical applications. Designed for one-phase power lines with flange mounting and fast-on connection for convenience. Stable electrical parameters including 20A current, 250V AC voltage, and low leakage current enhance operational safety.
Compact dimensions facilitate integration in various industrial and medical equipment enclosures. Adherence to UL, CSA, and VDE standards ensures global regulatory acceptance.
This EMI filter is ideal for use in industrial, medical, and commercial devices requiring high-quality power line noise suppression. Its reliable performance and ease of installation make it a valuable component for improving electrical system integrity.
Explore the Electronics Components category at EnvMart for a broad range of EMI filters and other noise protection solutions to meet your design and manufacturing needs.
