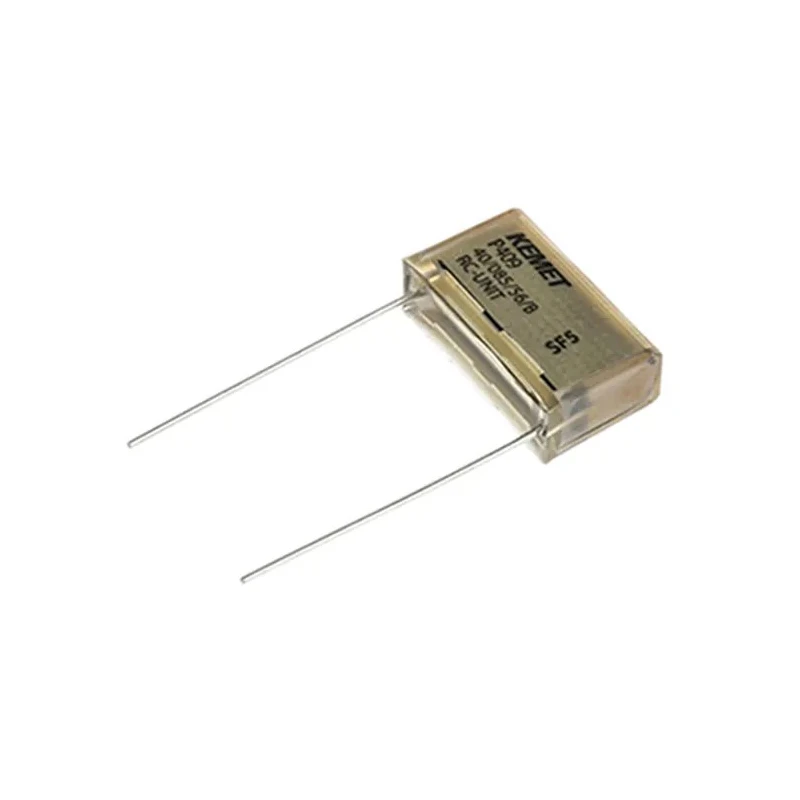

KEMET P409 Paper Capacitor X2 275V AC 275V DC 220nF Through Hole Mount P409CP224M275AH221

KEMET P409CP224M275AH221 Paper Capacitor is a highly reliable X2 class capacitor with 220nF capacitance, rated for AC voltage of 275V at 50/60 Hz, and a matching DC voltage rating of 275V. This capacitor uses multilayer metallized paper encapsulated and impregnated in a self-extinguishing UL 94 V - 0 rated material, ensuring excellent safety and performance in demanding industrial and electronic applications.

Designed for through hole mounting with a lead pitch of 20.3mm and pin count of 2, it features good stability and reliable operation over a temperature range from -40°C up to a maximum operating temperature of 85°C. The capacitor exhibits excellent self-healing properties, providing extended service life even when subjected to frequent overvoltages, making it ideal for contact protection and transient suppression tasks across various industrial electronics and power supply circuits.

This product conforms to RoHS directives and holds UL, EN/IEC, and CAN/CSA approvals covering safety and quality standards. Its physical dimensions are 24mm in length, 16.5mm in height, and 11.3mm in depth, with 0.8mm lead diameters to suit common electronic assembly processes. The suppression class X2 rating further makes it suitable for interference suppression in mains-connected equipment.

Applications include worldwide use in the protection of contacts, interference suppression, and transient suppression in electronic devices and instruments across industrial, electronic component manufacturing, power distribution, and automotive circuits (non-automotive grade).

Multilayer metallized paper capacitor with self-extinguishing UL94 V - 0 encapsulation. Capacitance of 220nF designed for X2 suppression class use. Rated voltages: 275 V AC at 50/60 Hz and 275 V DC. Operating temperature range: -40°C to +85°C for enhanced reliability.

Lead pitch 20.3mm, 2 pins, easy through hole mounting. Compliance with RoHS and safety approvals including UL 60384-14 and EN/IEC 60384-14.

This KEMET P409 Series capacitor is suited for applications in industrial electronics, laboratory instruments, power supply panels, and consumer electronics where reliable contact protection and transient suppression are critical. Explore the extensive catalog of Capacitors and passive components on EnvMart to find compatible components for your design and assembly needs.
