KEMET P409 Paper Capacitor X2 220nF 275V AC 275V DC Through Hole Mount P409CP224M275AH220

Free Delivery in India | Lowest Global Shipping Charges

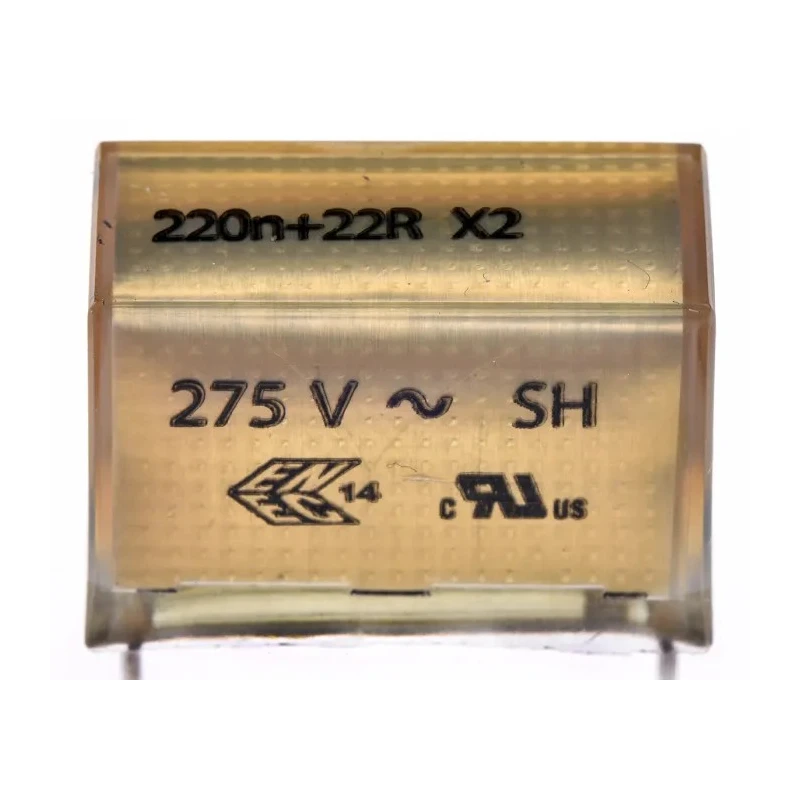

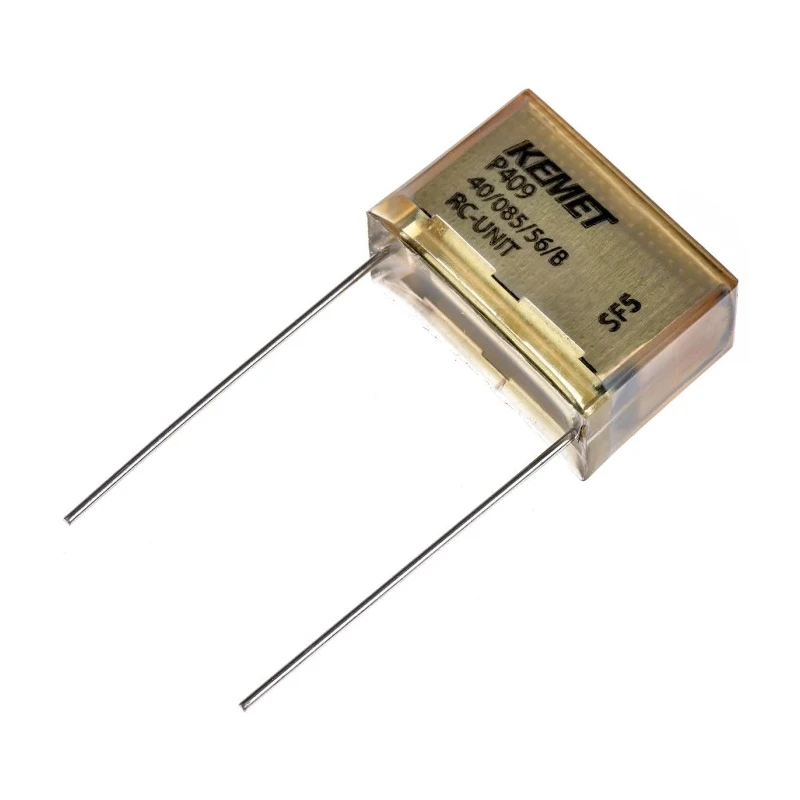

KEMET P409 Paper Capacitor X2 220nF 275V AC 275V DC Through Hole Mount P409CP224M275AH220

Name: KEMET P409 Paper Capacitor X2 220nF 275V AC 275V DC Through Hole Mount P409CP224M275AH220
Brand: KEMET
SKU: 384359
Price: 2.22 USD
Availability: InStock



Category Capacitors Brand KEMET Condition New

Specifications

Country of Origin	India
Capacitance Range	0.047 - 0.47μF
Resistance Range	22 - 470 Ω
Brand	KEMET
Height	16.5mm
Length	24mm
Model	P409CP224M275AH220
Depth	11.3mm
Mount Type	Through Hole
Series	P409
Maximum Operating Temperature	85°C
Capacitance	220nF
Rated Voltage	275 V ac 50/60 Hz
Resistance Tolerance	±30%
Pin Count	2
Rated AC Voltage	275V ac
Rated DC Voltage	275V dc
Lead Pitch	20.3mm
Lead Diameter	0.8mm
Suppression Class	X2

Key Features

Constructed with multilayer metallized paper and encapsulated in self-extinguishing material.
Rated AC voltage of 275V at 50/60 Hz frequency.
Rated DC voltage of 275V ensuring reliable operation.
Pin pitch of 20.3mm suitable for through hole mounting.
Maximum operating temperature is 85°C for stable performance.
Suppression class is X2 for interference suppression applications.
Complies with UL 60384-14, EN/IEC 60384-14, CAN/CSA-E60384-14-09 and RoHS standards.
Lead diameter measures 0.8mm ensuring secure electrical connections.

Product Description

The KEMET P409CP224M275AH220 is a high-quality paper capacitor designed for robust electronic applications requiring interference suppression and contact protection. This through hole mount capacitor features a capacitance of 220nF with rated voltages of 275V AC and 275V DC, making it suitable for both AC and DC circuits.

Constructed from multilayer metallized paper encapsulated in a self-extinguishing material meeting UL 94 V - 0 standards, it ensures excellent electrical stability and reliability over extended operating periods. The impregnated paper dielectric provides high resistance to ionization and enhances self-healing properties, contributing to long capacitor life, especially under frequent overvoltage conditions.

Its compact size with length of 24mm, height of 16.5mm, and depth of 11.3mm supports ease of installation in densely packed electronic assemblies. The 20.3mm lead pitch and 0.8mm lead diameter facilitate secure soldering in through hole mount PCB designs.

Engineered for industrial, laboratory, and commercial electronics, this capacitor meets multiple international safety and environmental standards, including UL 60384-14, EN/IEC 60384-14, CAN/CSA-E60384-14-09, and RoHS compliance, ensuring safe operation and environmental responsibility.

Constructed with multilayer metallized paper and encapsulated in self-extinguishing material. Rated AC voltage: 275V at 50/60 Hz, Rated DC voltage: 275V. Capacitance: 220nF with ±30% resistance tolerance. Operating temperature range from -40°C to +85°C.

Suppression class X2 for transient interference suppression. Dimensions: 24mm length, 16.5mm height, 11.3mm depth. Lead pitch: 20.3mm and lead diameter: 0.8mm. Meets UL, EN/IEC, CAN/CSA standards and RoHS directive.

This capacitor series is ideal for power and electronic component assemblies requiring reliable suppression of transient voltages in various industrial and commercial applications. Browse more film Capacitors in EnvMart to find compatible and complementary components for your project needs.
