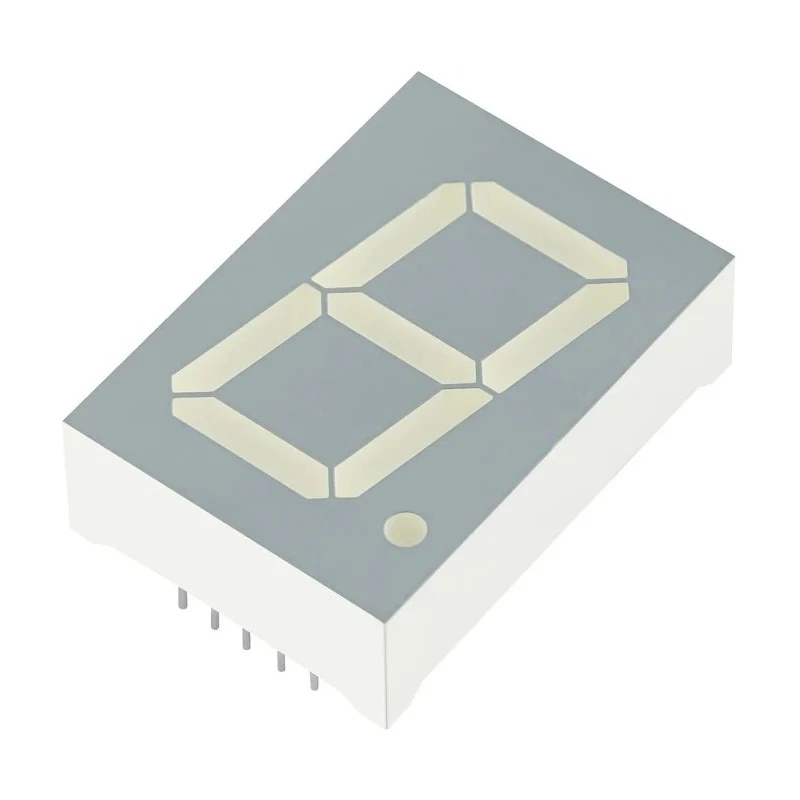

Kingbright 1 Digit 7 Segment Yellow LED Display Anode 25.4mm Height SA10-21SYKWA

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 1 Digit 7 Segment Yellow LED Display Anode 25.4mm Height SA10-21SYKWA

Name: Kingbright 1 Digit 7 Segment Yellow LED Display Anode 25.4mm Height SA10-21SYKWA
Brand: Kingbright
SKU: 384086
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Kingbright Condition New

Specifications

Country of Origin	China
Display Type	7 Segment
Brand	Kingbright
Model	SA10-21SYKWA
Mount Type	Through Hole
Series	SA10
Character height	25.4mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number Of Segments	7
External Width	24mm
External Depth	34mm
External Height	10.5mm
Power Dissipation	150mW
Luminous Intensity	400mcd
Standards/Approvals	CIE127-2007, RoHS
LED Colour	Yellow
Dominant Wavelength	590nm
Colour of Face	Grey
Forward Voltage	2V
Forward Current	30mA
Number of Characters	1
Character Width	14mm
Common Connection	Anode
Decimal Orientation	Right Side

Key Features

This display features a luminous intensity of 400mcd providing excellent visibility.
The character width is 14mm, designed for high clarity in electronic display applications.
It features an anode common connection and right side decimal orientation for easy circuit integration.
The LED operates with a forward voltage of 2 volts and a forward current of 30mA.
Operating temperature ranges from -40°C to 85°C, making it suitable for diverse environments.
The grey face with white segments enhances character appearance and readout contrast.
The package is mechanically rugged and complies with RoHS standards for safety and environmental protection.
This product is ideal for industrial, electronic, and measurement display applications.

Product Description

Kingbright SA10-21SYKWA is a high-quality 7 segment LED display module featuring a 25.4 mm character height and yellow LED color designed for clear numeric display output. This single digit LED display utilizes a common anode configuration and is designed for through-hole mounting, enabling reliable PCB integration.

The luminous intensity is rated at 400mcd, ensuring bright and readable output even in moderate ambient lighting conditions. The display's grey face and white segments provide an excellent character appearance for electronic instrumentation and measurement devices.

The display operates with a forward voltage of 2 volts at 30mA forward current, optimized for low current consumption. It supports a wide operating temperature range from -40°C to 85°C, suitable for use in industrial, laboratory, and commercial electronic applications.

Mechanically rugged and RoHS compliant, this display meets industry standards including CIE127-2007, ensuring compliance and reliability in manufacture and production. The right side decimal orientation improves usability in numeric readouts.

This LED display features 7 segments for clear digit representation. Its 14mm character width supports excellent legibility. Designed for through-hole mounting for ease of use in PCB assemblies. Provides consistent luminous intensity for display clarity.

Operates efficiently with low power dissipation of 150mW. Robust build quality suitable for rugged environments. Compliant with RoHS for environmental safety. Ideal for industrial, commercial, instrumentation, and display module applications.

It fits applications requiring reliable and clear numeric display solutions. Explore more in our Electronics Components LED Displays category for similar products suitable for your projects.
