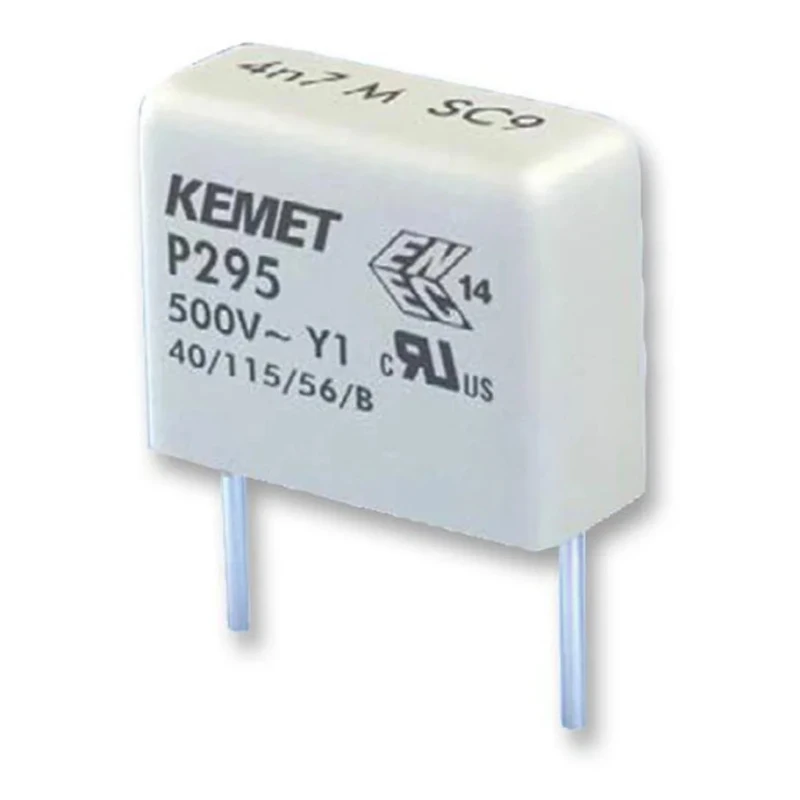

KEMET P295 Paper Capacitor Y1 500V AC 500V DC Through Hole 4.7nF AEC-Q100 Rated P295BQ472M500A

KEMET P295BQ472M500A is a Paper Capacitor designed as a Through Hole component with a capacitance of 4.7nF, rated for 500V AC and 500V DC operation, suitable for safety and filtering applications in industrial and electronic equipment.

The P295 Series capacitors are constructed using multilayer metallized paper providing excellent stability and operational reliability especially under continuous use. They exhibit excellent self-healing properties and strong resistance to ionization due to impregnated dielectric materials, which ensures durability and longevity even when subjected to frequent overvoltages.

This capacitor is rated to endure voltage tests up to 4000 VAC for 60 seconds without removal from the circuit, fulfilling stringent safety requirements for applications needing bridging of double and reinforced insulation. It complies with automotive standard AEC-Q100 and holds multiple approvals including ENEC, UL, cUL, and CQC certifications.

The device features a 15mm lead pitch and includes 2 pins with a lead diameter of 0.8mm, suitable for through-hole mounting on printed circuit boards. Its maximum operating temperature is 115°C, accommodating demanding operating environments in industrial and automotive sectors.

Physical dimensions of the capacitor are 18mm length, 8.5mm height, and 16mm depth, supporting compact PCB layout designs. The suppression class Y1 makes it ideal for bridging line to ground or neutral to ground connections in power electronics.

This capacitor finds typical industrial, laboratory, manufacturing, and automotive applications where secure, stable, and safe voltage suppression is critical. It is suitable for use in power supplies, control circuits, and safety-critical systems requiring compliance with international safety standards.

Constructed with multilayer metallized paper for excellent stability and reliability. Designed for continuous operation with superior self-healing properties. Rated for 500V AC and 500V DC voltage applications. Complies with automotive standard AEC-Q100 and holds ENEC, UL, cUL, and CQC approvals.

Lead pitch of 15mm and 2-pin through-hole mounting design. Maximum operating temperature of 115°C. Suppression Class Y1 for safety applications. Dimensions: 18mm length × 8.5mm height × 16mm depth. Suitable for industrial, automotive, and laboratory use cases.
