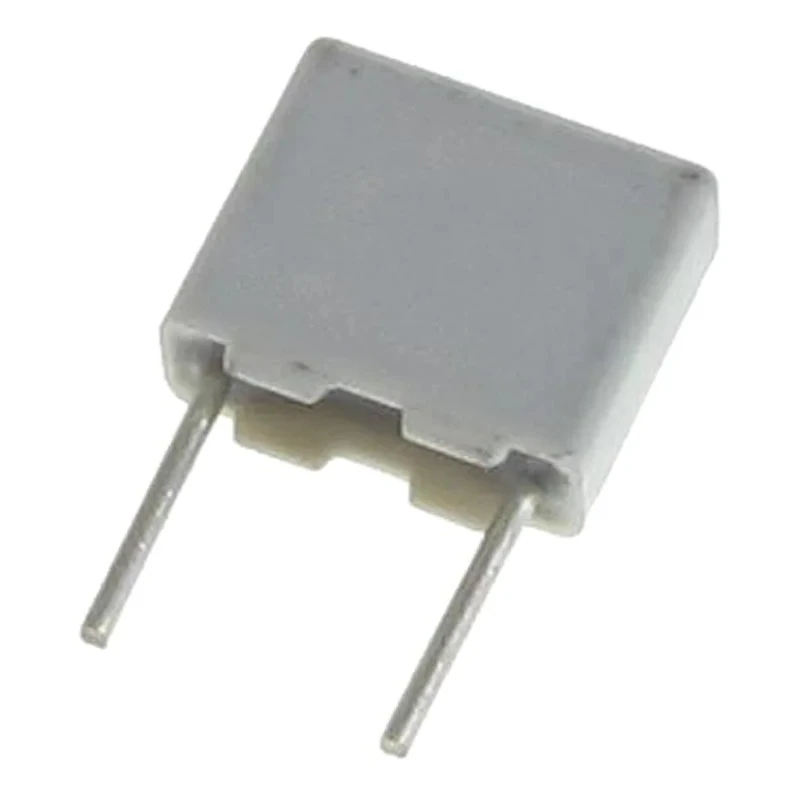

KEMET R82 Film Capacitor, 6.8 nF, ±10 % Tolerance, 250 V DC, 160 V AC, Through Hole Mount R82IC1680DQ50K

KEMET R82IC1680DQ50K film capacitor is part of the R82 series, featuring metallised polyester film dielectric with radial leads designed for through hole mounting. It provides a capacitance of 6.8 nF with a tolerance of ±10 %, supporting voltages up to 250 V DC and 160 V AC. This miniature capacitor is encapsulated in a self-extinguishing and solvent resistant plastic case with thermosetting resin, enhancing reliability and safety in various electronic circuits.

The capacitor supports an operating temperature range from -55°C to +105°C, making it suitable for demanding industrial, automotive, and electronic applications requiring stable performance across temperature variations. With a lead pitch of 5 mm and lead length of 18.5 mm, it is designed for secure through-hole mounting on PCBs. The compact dimensions of 6.5 mm height, 7.2 mm length, and 2.5 mm width allow its use in space-constrained designs.

This component meets IEC 60384-2 and RoHS standards ensuring environmental compliance and quality. Automotive grades meeting AEC-Q200 standards further enhance its applicability in automotive electronics. Typical applications include blocking, coupling, decoupling, timing, and oscillator circuits in industrial, automotive, consumer electronics, and communications equipment.

Packaging in ammo pack format optimizes handling and compatibility with automated assembly lines, making it efficient for volume production environments. The film capacitor's reliable self-healing property enhances its durability under electrical stress, prolonging service life.

Miniature metallised polyester film construction with radial leads. Lead pitch of 5 mm and lead length of 18.5 mm. Operating temperature range from -55°C to 105°C. Self-extinguishing, solvent resistant encapsulation. blocking, coupling, decoupling, timing, oscillator circuits.

IEC 60384-2, RoHS compliant, Automotive AEC-Q200 certified. Pin count: 2; Lead diameter: 0.5 mm. Compact size: 6.5 mm x 7.2 mm x 2.5 mm. Ammo pack packaging for automated assembly. Explore more Film Capacitors and passive components on EnvMart for your electronics design needs.
