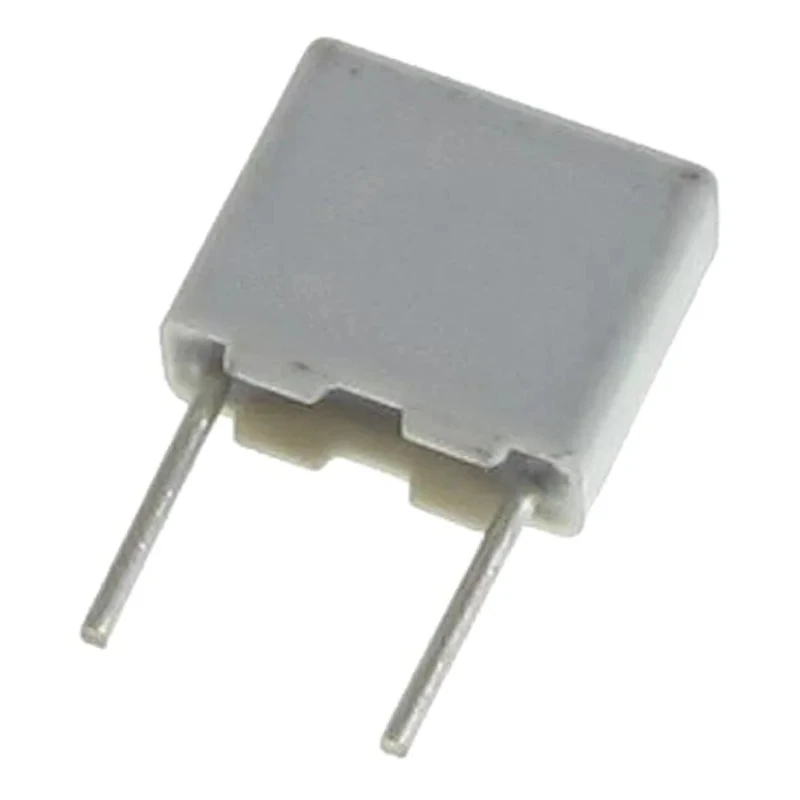

KEMET R82 Film Capacitor 680 nF ±10 % 100 V DC 63 V AC Through Hole Mount R82EC3680DQ70K

KEMET R82EC3680DQ70K film capacitor is a precision metallized polyester film capacitor with a capacitance of 680 nF and a tolerance of ±10 %. Rated at 100 V DC and 63 V AC, this through hole mounted component is ideal for use in electronic circuits requiring stable capacitance and reliable performance.

Constructed with radial tinned wire leads electrically welded to the contact layer, the capacitor is encapsulated in a robust self-extinguishing plastic case made from thermosetting resin material, ensuring long-term durability and resistance to solvents.

The R82 series capacitors are widely applied in blocking, coupling, decoupling, oscillator, and timing circuits within industrial electronics, laboratory instruments, manufacturing controls, and automotive systems compliant with the AEC-Q100 standard.

This component operates effectively across a broad temperature range from -55°C to 105°C, maintaining performance and stability in diverse environments. Its lead pitch of 5 mm and lead length of 18.5 mm allow for secure insertion and soldering onto printed circuit boards, while the 0.5 mm lead diameter ensures reliable electrical contact.

Compliant with RoHS directives and IEC 60384-2 standards, the KEMET R82 capacitor ensures environmentally responsible use and safety compliance, making it suitable for commercial, industrial, and automotive applications.

Provides wide voltage operation with 100 V DC and 63 V AC ratings. Features metallized polyester film construction with radial leads. Encapsulated in self-extinguishing plastic case with thermosetting resin. Operates from -55°C to +105°C temperature range.

Lead pitch of 5 mm and lead length of 18.5 mm for PCB mounting. Complies with RoHS and IEC 60384-2 standards. Typical uses include blocking, coupling, decoupling, oscillator, and timing circuits.

Ideal for electronics manufacturing, laboratory testing, industrial controls, and automotive system applications, this capacitor offers reliability and compliance for demanding environments. Browse the EnvMart catalog for more Film Capacitors and other electronic components from top brands like KEMET.
