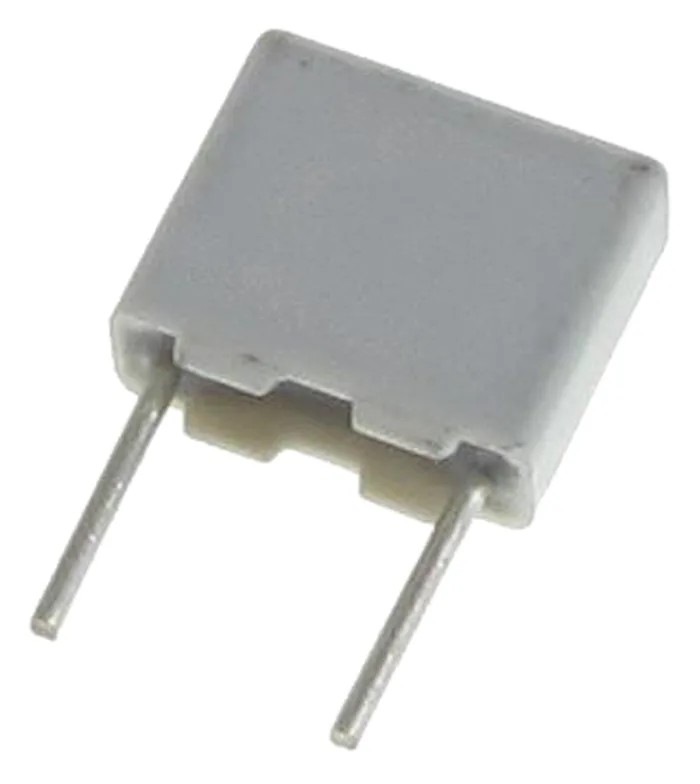

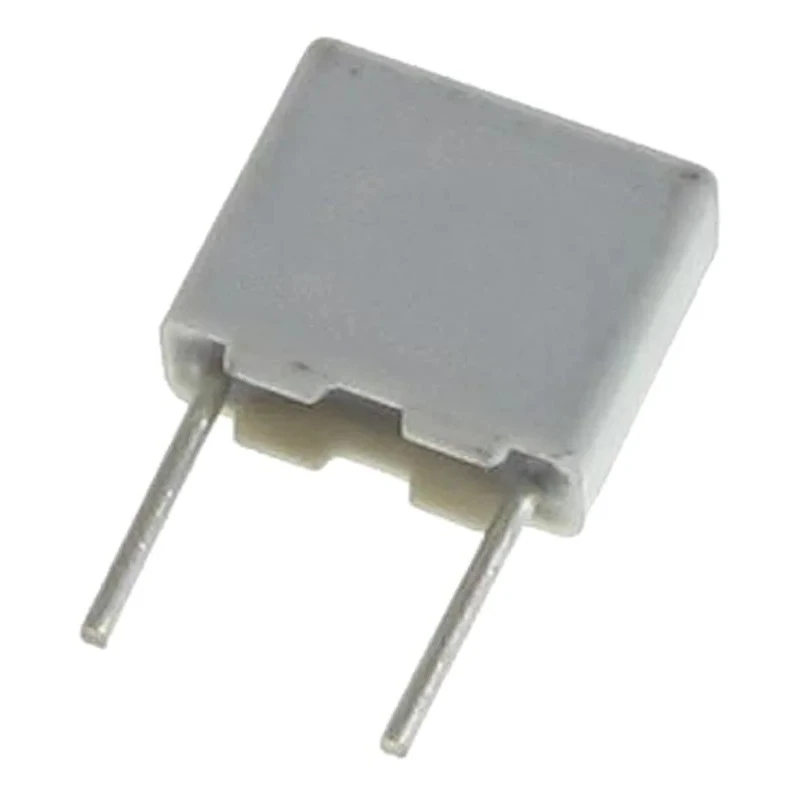

KEMET R82 Film Capacitor, 680 nF ±10% Capacitance, 100 V DC, 63 V AC, Through Hole Mount, Model R82EC3680DQ70K

Free Delivery in India | Lowest Global Shipping Charges

KEMET R82 Film Capacitor, 680 nF ±10% Capacitance, 100 V DC, 63 V AC, Through Hole Mount, Model R82EC3680DQ70K

Name: KEMET R82 Film Capacitor, 680 nF ±10% Capacitance, 100 V DC, 63 V AC, Through Hole Mount, Model R82EC3680DQ70K
Brand: KEMET
SKU: 383625
Price: 0.22 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	10mm
Length	7.2mm
Model	R82EC3680DQ70K
Packaging	Ammo Pack
Width	5mm
Mount Type	Through Hole
Series	R82
Maximum Operating Temperature	105°C
Tolerance	±10 %
Capacitance	680nF
Minimum Operating Temperature	-55°C
Lead Length	18.5mm
Standards/Approvals	RoHS, IEC 60384-2
Package/Case	DQ
Pin Count	2
Rated AC Voltage	63V ac
Rated DC Voltage	100V dc
Lead Pitch	5mm
Lead Diameter	0.5mm
Automotive Standard	AEC-Q100

Key Features

This film capacitor offers a capacitance of 680 nF with a tolerance of ±10%.
It supports an AC voltage rating of 63 V and a DC voltage rating of 100 V.
Constructed with metallised polyester film and radial leads for secure through-hole mounting.
Operating temperature range from -55°C up to 105°C ensures robust performance in varied environments.
Compliant with RoHS standards and IEC 60384-2 for quality and safety.
Lead pitch is 5 mm with lead length of 18.5 mm and pin count of 2 for easy PCB integration.
Capsule made from self-extinguishing, solvent-resistant plastic with thermosetting resin for durability.
Automotive-grade AEC-Q100 certified, suitable for demanding automotive applications.

Product Description

KEMET R82EC3680DQ70K Film Capacitor is a reliable miniature metallised polyester film capacitor designed for through-hole mounting. It provides a capacitance of 680 nF with a ±10% tolerance, suitable for various electronic applications such as coupling, decoupling, timing, oscillator circuits, and blocking. This component operates at a maximum DC voltage of 100 V and AC voltage of 63 V, ensuring stable operation across demanding conditions.

The capacitor is constructed with radial leads of tinned wire electrically welded to the contact metal layer on the ends of the capacitor winding. The casing is a self-extinguishing, solvent-resistant plastic with thermosetting resin material, guaranteeing robustness and electrical safety.

Designed with a 5 mm lead pitch and lead length of 18.5 mm, it fits securely on printed circuit boards. The tight operating temperature range from -55°C to 105°C and compliance with RoHS and IEC 60384-2 standards underline its quality and environmental suitability.

The R82 series also holds automotive standard AEC-Q100 certification, making it suitable for automotive electronic systems requiring high reliability. Its small form factor with 7.2 mm length, 5 mm width, and 10 mm height allows easy integration in compact assemblies.

Capacitance: 680 nF with ±10% tolerance. Voltage ratings: 100 V DC and 63 V AC. Through-hole mounting with 5 mm lead pitch. Operating temperature range from -55°C to 105°C. RoHS compliant and IEC 60384-2 certified. Automotive grade AEC-Q100 certified.

Package case type DQ ensuring durable encapsulation. Pin diameter of 0.5 mm and 2-pin configuration.

This film capacitor is ideal for industrial applications including electronics manufacturing, automotive components, and electronic device repair. It supports precise timing, filtering, coupling, and decoupling functions in circuits.
