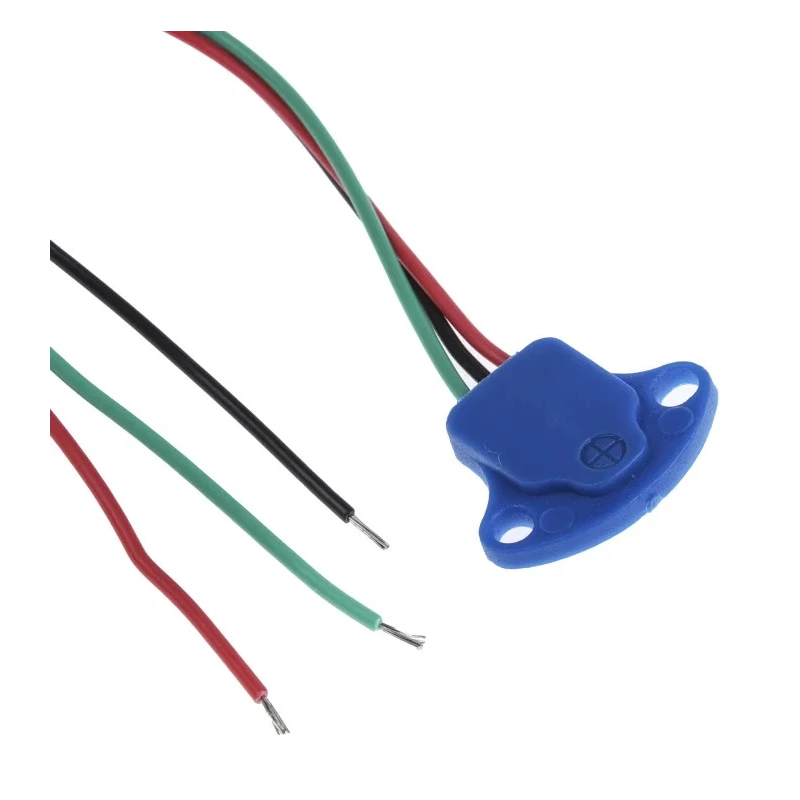

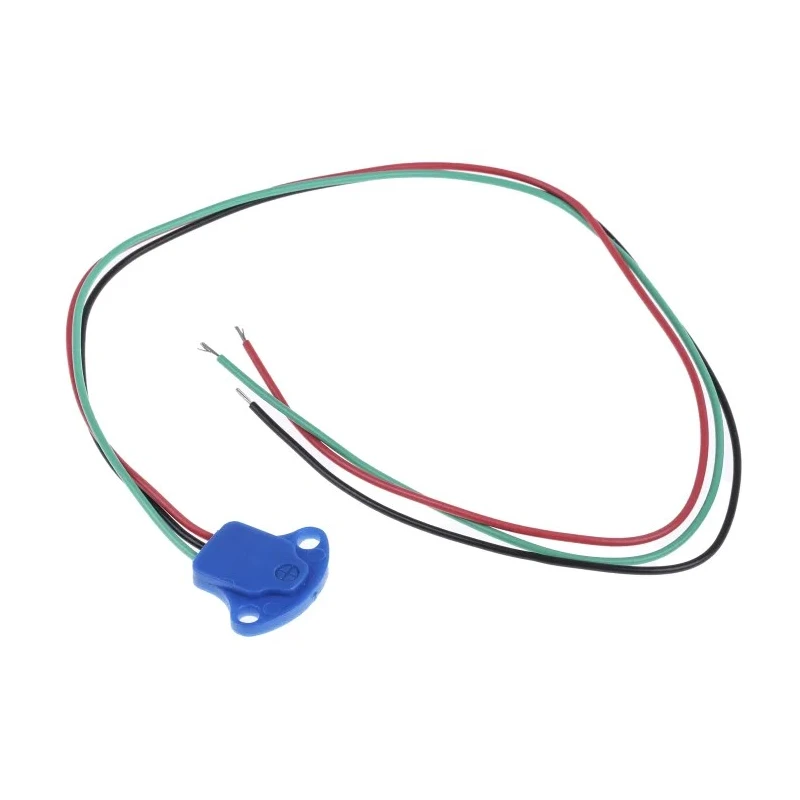

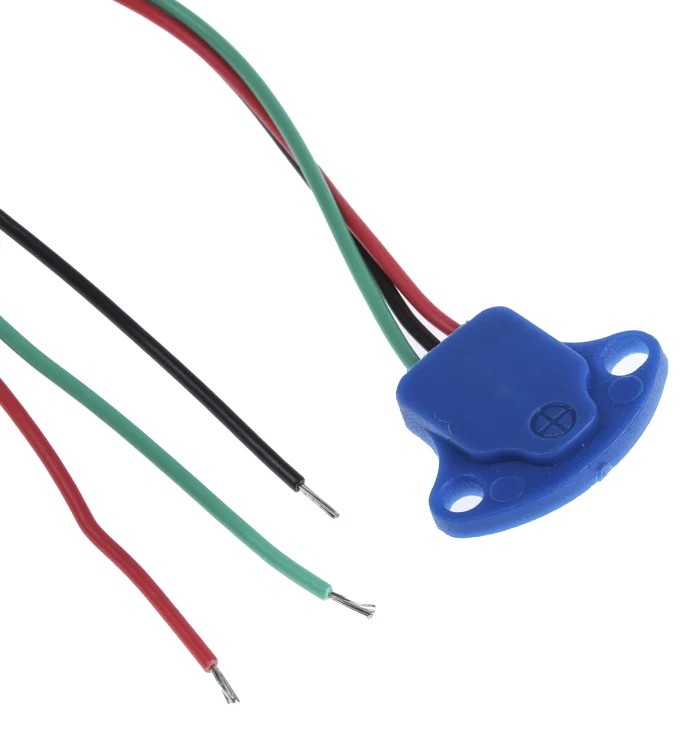

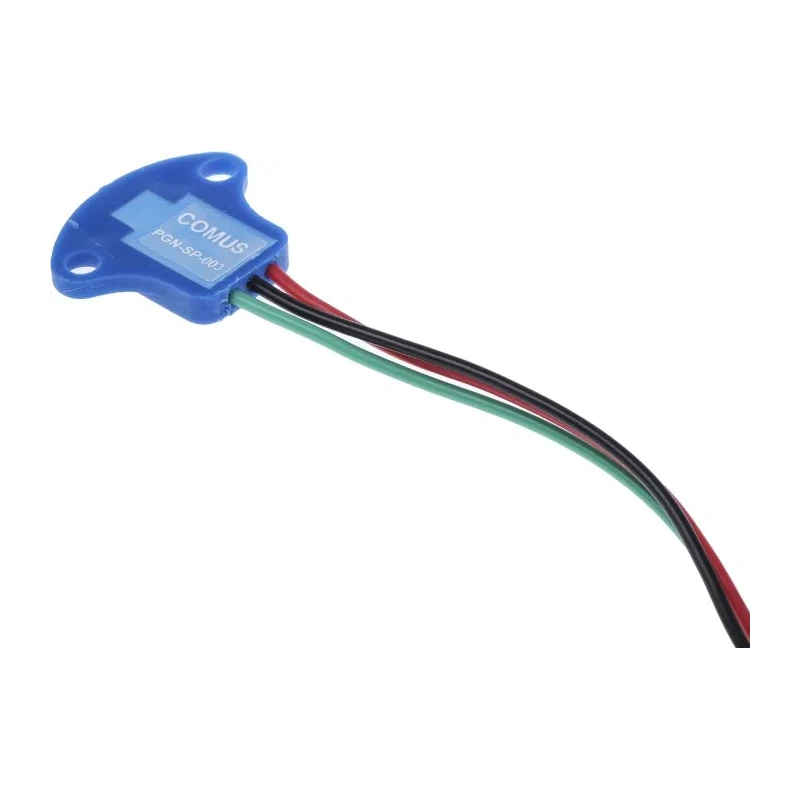

Assemtech Hall Effect Sensor Non-Flush 3-Wire Sink Output Low-Profile Flange-Mount Body 24 V dc PGN-SP-003

Assemtech PGN-SP-003 Hall Effect Sensor is a digital proximity sensor designed with a low-profile flange-mount body for efficient and compact installation. It features a non-flush mount type and 3-wire sink output that is suitable for various control and automation systems requiring precise magnetic field detection.

This sensor operates at a maximum DC voltage of 24 V with a switching current capability of 20 mA, making it ideal for industrial automation, flow sensing, door position detection, and pedal switch applications. Its wide temperature operation range from -40°C to 85°C ensures reliable performance in demanding environments.

Designed with reverse polarity protection, the sensor is safeguarded against incorrect wiring. The sensor latches in the presence of a south pole magnet and unlatches with a north pole magnet, providing dependable operation.

It conforms to IEC529 IPX5 water protection standards, making it resistant to water jets and suitable for outdoor or wet environments. The compact dimensions (17.27 mm length, 3.3 mm depth, and 0.324 inch width) facilitate easy integration into tight spaces.

The PGN-SP-003 is equivalent in standard to the Cherry MP101403, ensuring high quality and performance consistency. Manufactured in the United Kingdom, it reflects excellent engineering appropriate for industrial, laboratory, and machinery automation uses.

Features a low-profile flange-mount body designed for compact installations. Non-flush mounting allows versatility in placement and detection range. 3-wire sink output supports standard DC control systems. Operates at a maximum DC voltage of 24 V with switching current up to 20 mA.

Wide operating temperature range from -40°C to 85°C ensures durability in harsh environments. Protected against reverse polarity to prevent installation errors. Meets IEC529 IPX5 rating for water resistance and outdoor use.

Equivalent performance to Cherry MP101403 sensor standard. Compact dimensions with length 17.27 mm, depth 3.3 mm, and width 0.324 inches. Manufactured in the United Kingdom to high quality standards.

This sensor is suitable for a wide range of industrial automation, control gear, flow sensing, and proximity detection tasks in manufacturing, HVAC, laboratory instrumentation, and commercial equipment applications.
