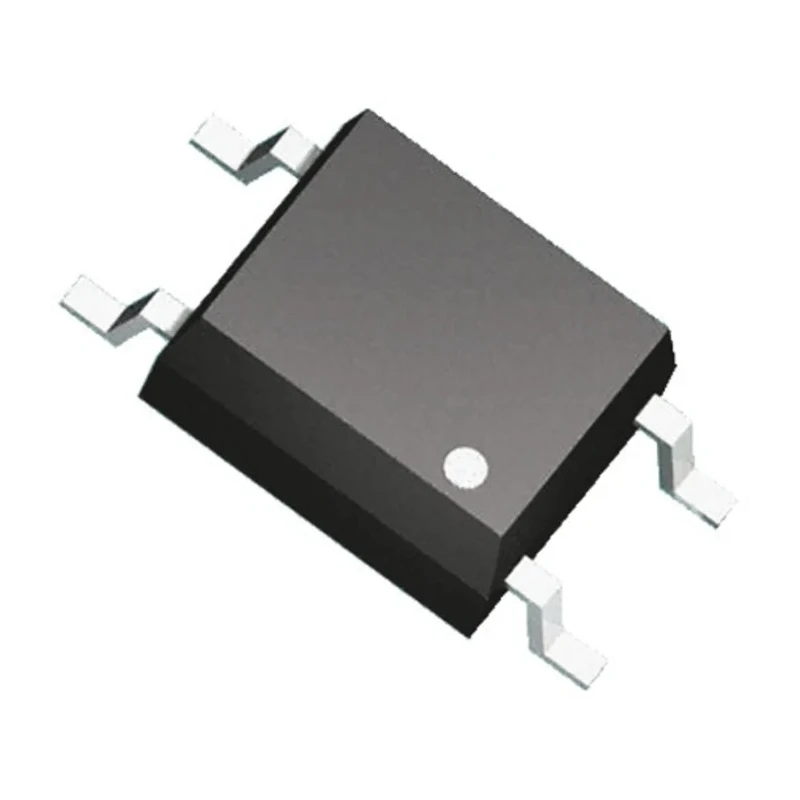

onsemi Optocoupler Surface Mount 4-Pin Mini-Flat Transistor Output FODM8801BV

onsemi FODM8801BV is a surface mount optocoupler designed for electronic applications requiring transistor output in a compact 4-pin mini-flat package. This device efficiently isolates electrical signals while providing excellent switching performance, making it ideal for signal transmission in power and control equipment.

The optocoupler supports a maximum forward voltage of 1.8V, with typical rise and fall times of 5μs and 5.5μs respectively, allowing rapid digital signal response. It operates reliably across a broad temperature range from -40°C to 125°C, ensuring stability in harsh industrial and commercial environments.

With a maximum input current of 20mA and current transfer ratio varying between 65% minimum and 360% maximum, it ensures precise signal coupling. The device complies with UL and VDE standards, confirming safe use in certified applications. Packaged in tubes, it is suited for automated production lines, improving assembly efficiency and production throughput.

This optocoupler finds applications in industrial control systems, power supplies, telecommunications equipment, and other electronic circuits requiring galvanic isolation and signal fidelity. The FODM series exemplifies robust performance tailored for modern electronics industry needs.

Designed for surface mount applications to ensure compact PCB integration. Features transistor output type for efficient signal transfer. Maximum forward voltage of 1.8V supports low power consumption. Typical rise and fall times of 5μs and 5.5μs respectively provide fast response.

Operates within a temperature range of -40°C to 125°C ensuring wide environmental tolerance. Maximum input current rated at 20mA suitable for various electronic circuits. Current transfer ratio ranges between 65% minimum and 360% maximum for signal accuracy.

Packaged in tubes for ease of automated assembly and handling. Complies with UL, VDE, and C-UL standards providing assured safety compliance. Part of the FODM series optimized for robust electronic component applications.

Explore the extensive range of Optocouplers and electronic components available at EnvMart to enhance your industrial and electronic projects with quality and reliability.
