Kingbright 2.5 V Red LED 0603 Surface Mount Chip KPH-1608EC

Free Delivery in India | Lowest Global Shipping Charges

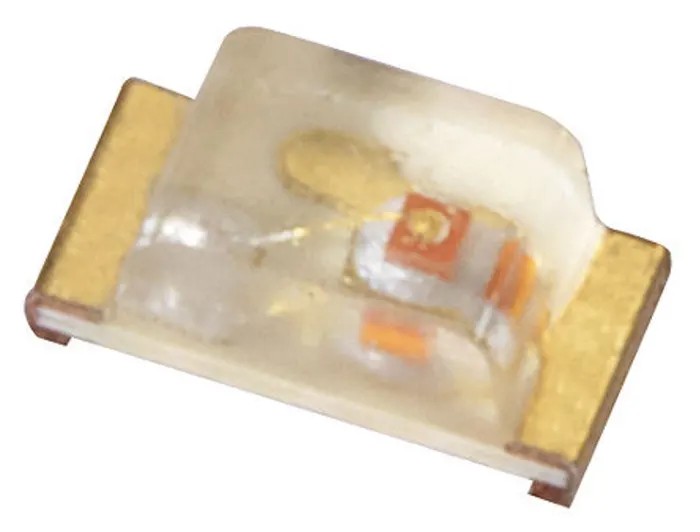

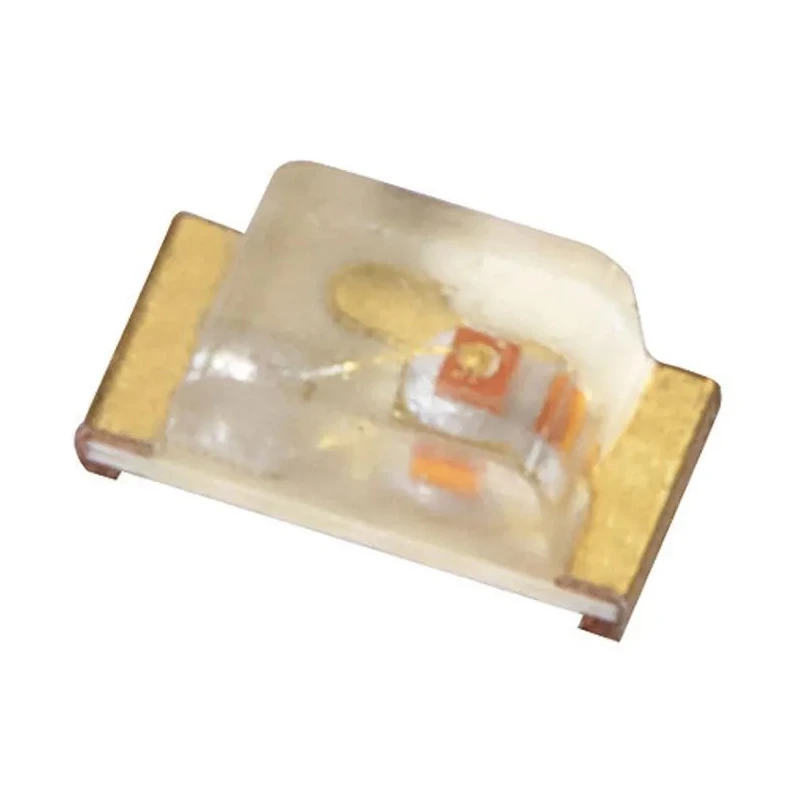

Kingbright 2.5 V Red LED 0603 Surface Mount Chip KPH-1608EC

Name: Kingbright 2.5 V Red LED 0603 Surface Mount Chip KPH-1608EC
Brand: Kingbright
SKU: 382355
Price: 0.12 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Model	KPH-1608EC
Packaging	Tape & Reel
Mount Type	Surface
Series	KPH-1608
Maximum forward current	160mA
Viewing angle	120 °
Package Type	0603
Standards/Approvals	RoHS
LED Colour	Red
Dominant Wavelength	625nm
Forward Voltage	2.5V
Number of Pins	2
LED Luminosity	15 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	1.6 x 0.8 x 0.65 mm
Lens Shape	Rectangular

Key Features

The LED features a red color with a dominant wavelength of 625 nm.
It operates at a forward voltage of 2.5 V with a maximum forward current of 160 mA.
The package type is industry-standard 0603 with a compact footprint of 1.6 x 0.8 x 0.65 mm.
This surface mount LED offers a viewing angle of 120 degrees with a luminous intensity of 15 mcd.
Its lens is rectangular, clear, and made for optimal light dispersion.
It supports tape and reel packaging, suitable for high-volume automated assembly.
The product is RoHS compliant and manufactured in China.

Product Description

Kingbright KPH-1608EC is a surface mount red LED in the 0603 (1608) package, offering compact dimensions of 1.6 x 0.8 x 0.65 mm. This LED provides efficient light emission with a dominant wavelength of 625 nm, making it ideal for use as optical indicators or display backlighting in electronic devices.

The LED operates at a forward voltage of 2.5 V and supports a maximum forward current of 160 mA, ensuring reliable performance with a maximum power dissipation of 75 mW. Its rectangular, clear lens and wide 120-degree viewing angle provide excellent illumination and visibility in various industrial and commercial electronic applications.

This component is supplied in tape and reel packaging, optimized for surface mount technology (SMT) assembly processes to improve production efficiency and ensure consistent quality. It has two pins and is designed for mounting on printed circuit boards as a surface mount device (SMD).

The KPH-1608EC series complies with RoHS environmental standards, indicating that it is free from hazardous substances, suitable for use in modern electronics manufacturing. This LED is commonly used in electronics, instrumentation, communication devices, and other applications requiring low power, reliable red indicator LEDs.

Red LED with 625 nm dominant wavelength. Forward voltage: 2.5 V; Maximum forward current: 160 mA. Package type: 0603 (1.6 x 0.8 x 0.65 mm). Viewing angle: 120 degrees; Luminous intensity: 15 mcd. Rectangular clear lens for optimal light dispersion.

Supplied in tape and reel packaging for automated assembly. RoHS compliant; Manufactured in China. Widely used in electronics manufacturing, instrumentation, displays, and optical indicators. Browse similar Kingbright LEDs and other high-quality components at EnvMart.
