Kingbright 2.5 V Green, Red Multi-Colour LED 1616 Surface Mount KPTB-1615ESGC

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 2.5 V Green, Red Multi-Colour LED 1616 Surface Mount KPTB-1615ESGC

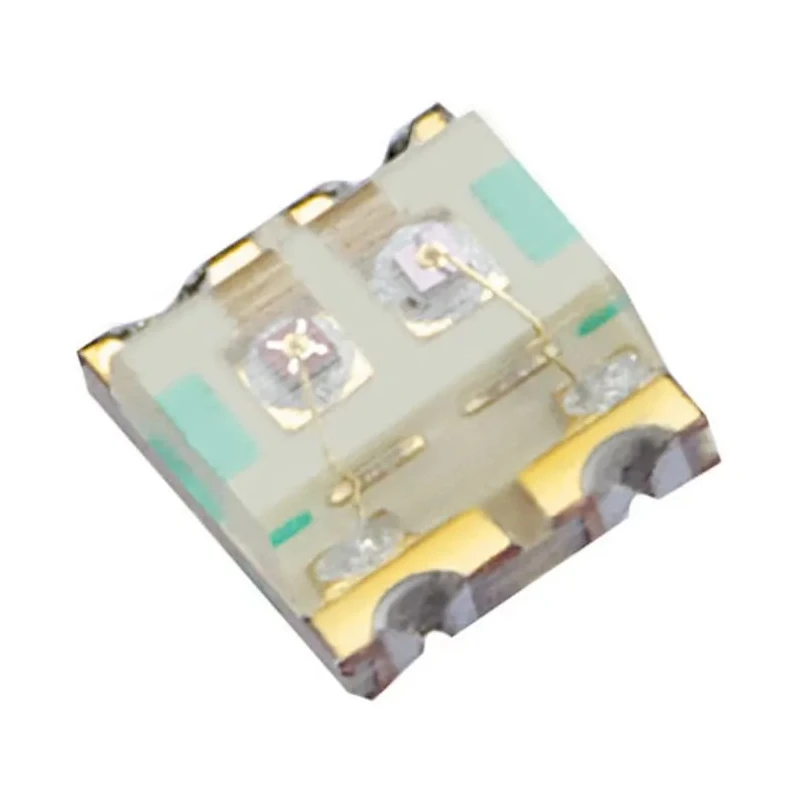

Name: Kingbright 2.5 V Green, Red Multi-Colour LED 1616 Surface Mount KPTB-1615ESGC
Brand: Kingbright
SKU: 382304
Price: 0.29 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	3.2 x 2.4 mm
Model	KPTB-1615ESGC
Packaging	Tape & Reel
Mount Type	Surface
Series	Multi-Colour LED
Number Of Leds	2
Maximum forward current	30mA
Viewing angle	120 °
Package Type	1616
Standards/Approvals	RoHS
LED Colour	Green, Red
Dominant Wavelength	568, 617nm
Forward Voltage	2.5V
Number of Pins	4
LED Luminosity	12 mcd, 15 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	1.6 x 1.5 x 0.7 mm
Lens Shape	Rectangular

Key Features

This LED features bi-colour capability with green and red colours.
It conforms to the standard 0605 (1616) surface mount package footprint.
The maximum forward current is 30 mA with a power dissipation of 75 mW.
The forward voltage rating is 2.5 V, suitable for low power applications.
It includes 2 LEDs with 4 pins and a viewing angle of 120 degrees.
The LED luminosity is rated at 12 mcd and 15 mcd for green and red respectively.
The lens shape is rectangular with clear finish and dimensions of 1.6 x 1.5 x 0.7 mm.
This LED complies with RoHS environmental standards and is manufactured in China.

Product Description

Kingbright KPTB-1615ESGC is a high-quality multi-colour LED featuring green and red light emissions in a compact 1616 surface mount package. Operating at 2.5 V forward voltage and supporting up to 30 mA forward current, this LED offers efficient low power consumption suitable for various electronic devices.

The device is designed with a standard 0605 footprint ensuring compatibility with common surface mount technology assembly processes. It features two LEDs integrated with 4 pins, allowing bi-colour display functionality without additional circuit complexity.

The LED has a rectangular clear lens measuring 1.6 x 1.5 x 0.7 mm, providing a viewing angle of 120 degrees which gives optimal light dispersion for indicator and backlighting purposes.

With LED luminosity values of 12 mcd for green and 15 mcd for red, it delivers visible and reliable light output suitable for visual indicators and multi-colour signal displays in industrial, commercial, and consumer electronic applications.

This product complies with RoHS standards, aligning with environmental and safety regulations. Manufactured in China, it provides consistent performance quality for system integrators and electronic equipment manufacturers.

This LED features bi-colour capability with green and red colours. It conforms to the standard 0605 (1616) surface mount package footprint. The maximum forward current is 30 mA with a power dissipation of 75 mW. The forward voltage rating is 2.5 V, suitable for low power applications.

It includes 2 LEDs with 4 pins and a viewing angle of 120 degrees. The LED luminosity is rated at 12 mcd and 15 mcd for green and red respectively. The lens shape is rectangular with clear finish and dimensions of 1.6 x 1.5 x 0.7 mm.

This LED complies with RoHS environmental standards and is manufactured in China. It is ideal for use in backlighting, indicators, and multi-colour display applications.

Suitable use cases include electronic component manufacture, LED backlighting, status indicators, and multi-colour display features within industrial control panels, consumer electronics, telecommunications, and instrumentation systems. Explore additional Kingbright LED components and similar products on EnvMart for comprehensive sourcing solutions.
