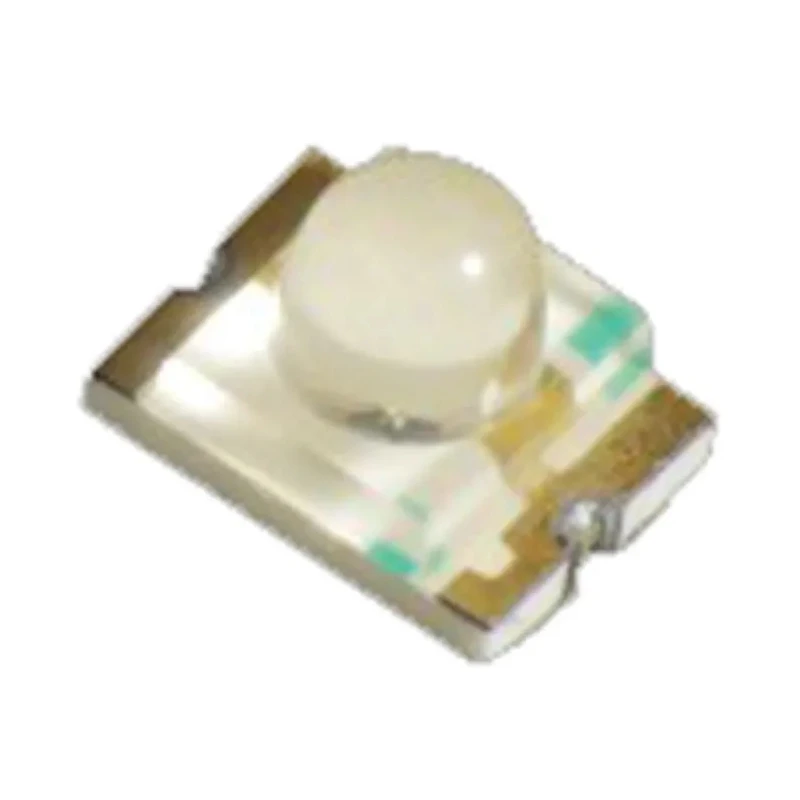

Kingbright 4 V Blue LED 3224 Surface Mount Light Emitting Diode KPD-3224QBC-D

Kingbright KPD-3224QBC-D is a 4 V blue surface mount LED from the 3224 series, featuring a compact 3224 package with dimensions of 3.2 x 2.4 x 2.4 mm and a dome-shaped clear lens. It offers a luminous intensity of 800 mcd with a dominant wavelength of 465 nm, making it suitable for precise indication and backlighting in electronic devices.

The LED supports a maximum forward current of 150 mA and dissipates up to 120 mW, ensuring energy efficient performance with minimal heat generation. The device’s 20° viewing angle provides focused illumination ideal for display and indicator applications.

Packaged in tape & reel format, this LED is designed for high volume automated manufacturing processes. The surface mount construction facilitates compact board layouts with easy integration into various electronic assemblies.

Manufactured in China, the product adheres to RoHS compliance ensuring the elimination of hazardous substances. The standard 3224 package size and reliable electrical characteristics make this LED a popular choice for industrial and commercial electronics use.

Applications include panel indicators, backlighting, status indicators, and general illumination in industrial, laboratory, commercial, and automotive electronics systems. This LED has a forward voltage of 4 volts and maximum power dissipation of 120 mW.

It supports a maximum forward current of 150 mA, ideal for low power consumption. The device features a dome-shaped lens with dimensions of 3.2 x 2.4 x 2.4 mm. The viewing angle is 20 degrees with a brightness of 800 millicandela at 465 nm wavelength.

Designed for surface mounting in tape and reel packaging for automated assembly. This LED complies with RoHS standards, ensuring environmentally friendly manufacturing. It has two pins and a clear lens finish and colour for optimal light output.
