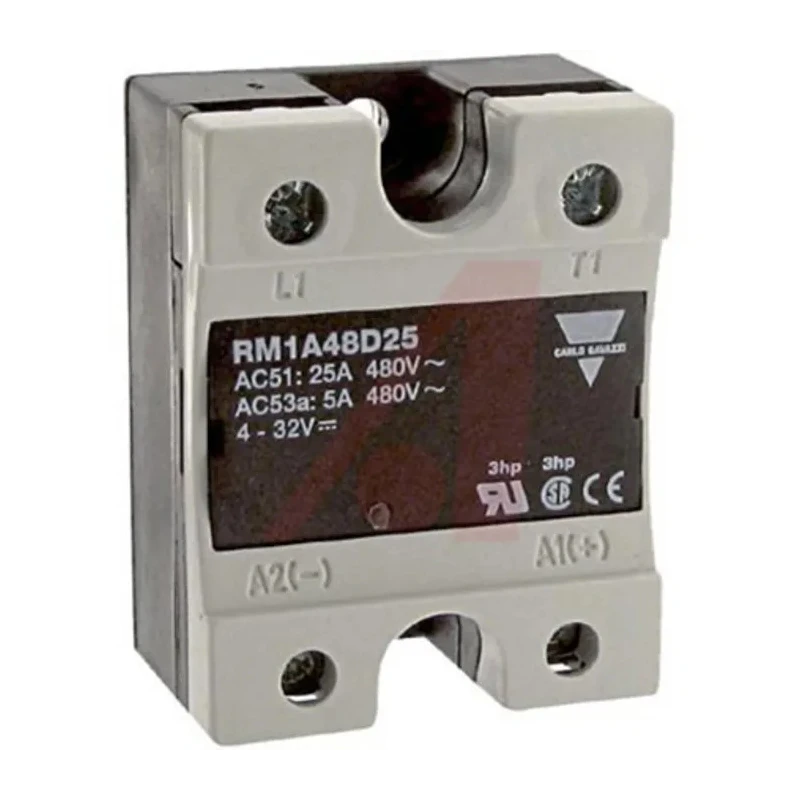

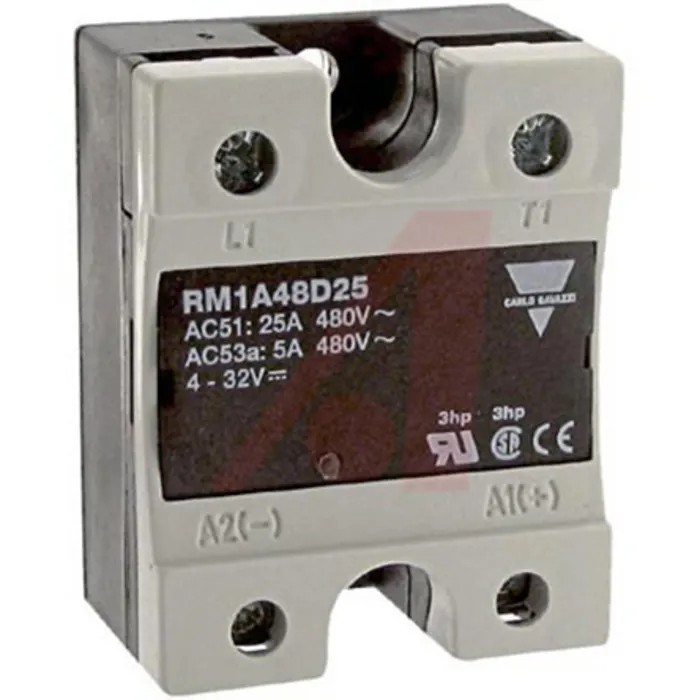

Carlo Gavazzi Solid State Relay Panel Mount 25 A Load 530 V AC Load 32V DC Control RM1A

Carlo Gavazzi RM1A48D25 is a solid state relay from the RM1A series, designed for panel mount applications requiring robust switching of AC loads up to 25 A and 530 V AC. It operates with a control voltage range of 4V to 32V DC, and features zero-cross switching technology, enhancing performance in resistive load and motor applications. The relay includes an integral heatsink and an IP20 touch-safe cover that can be removed to facilitate ring terminal connections, making installation and maintenance straightforward.

This relay is built to operate reliably in industrial environments, with an operating temperature range spanning from -20°C to 70°C. It has a single-pole single-throw contact configuration and utilizes thyristor output, ensuring efficient and silent switching. The design includes an integrated snubber network, LED status indication, and screw terminal connections for secure wiring.

With compact dimensions (44.8 mm length, 44.8 mm width, 28.8 mm height), this Carlo Gavazzi RM1A48D25 relay is suitable for use in electrical panels, HVAC control systems, automation machinery, and industrial manufacturing setups. Its zero-cross switching and high current rating make it an excellent alternative to conventional mechanical relays, providing increased reliability and enhanced lifespan.

The relay has approvals including UKCA, CCC, EAC, and CE, ensuring conformance with multiple international safety and quality standards. The official country of origin for this model is China.

Maximum load current of 25 amperes for reliable switching. Panel mount type suitable for easy installation in electrical panels. Supports a maximum load voltage of 530 V AC and a minimum load voltage of 42 V AC. Control voltage range from 4 V DC minimum to 32 V DC maximum.

Equipped with screw terminal type for secure connections. IP20 rated for protection against touch and ingress. Zero-cross switching function to reduce electrical noise and wear. Operating temperature range from -20°C to 70°C for versatile industrial use.

Single-pole single-throw (SPST) contact configuration using a Thyristor output type. Compact size makes it ideal for panel mount applications. Explore more Solid State Relays and automation components in the Electronics & Electricals category on EnvMart.
