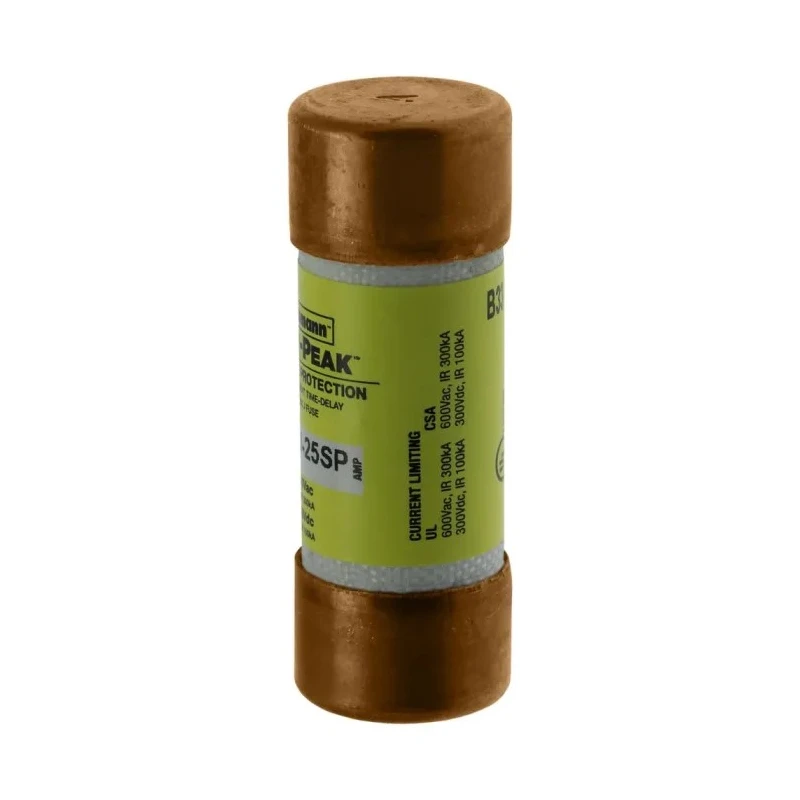

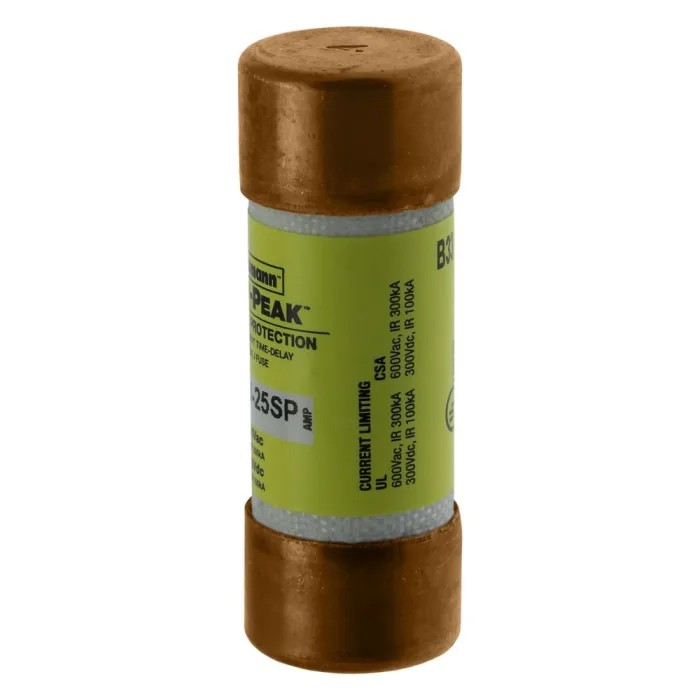

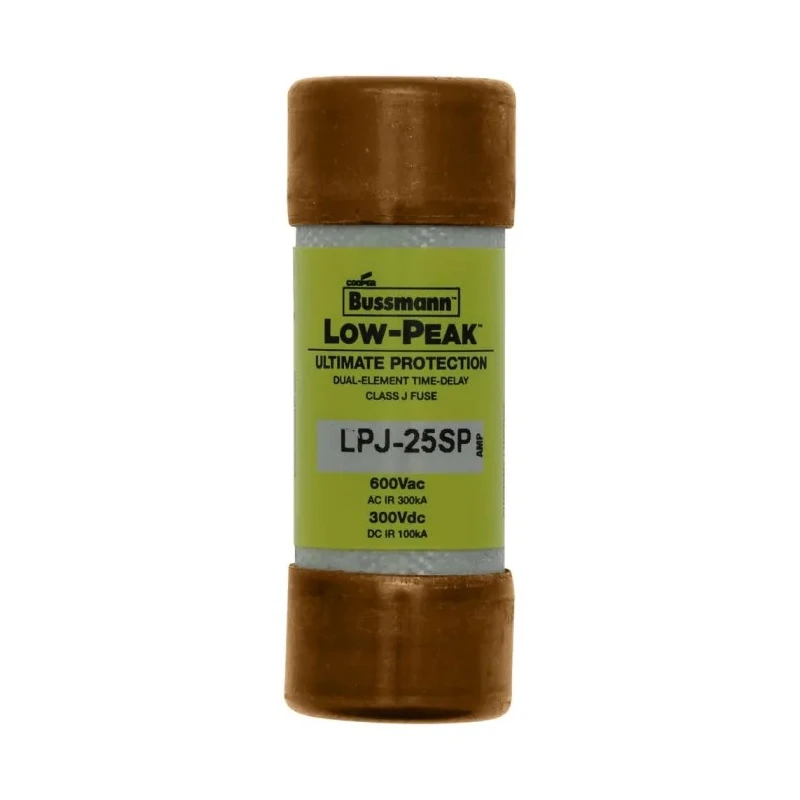

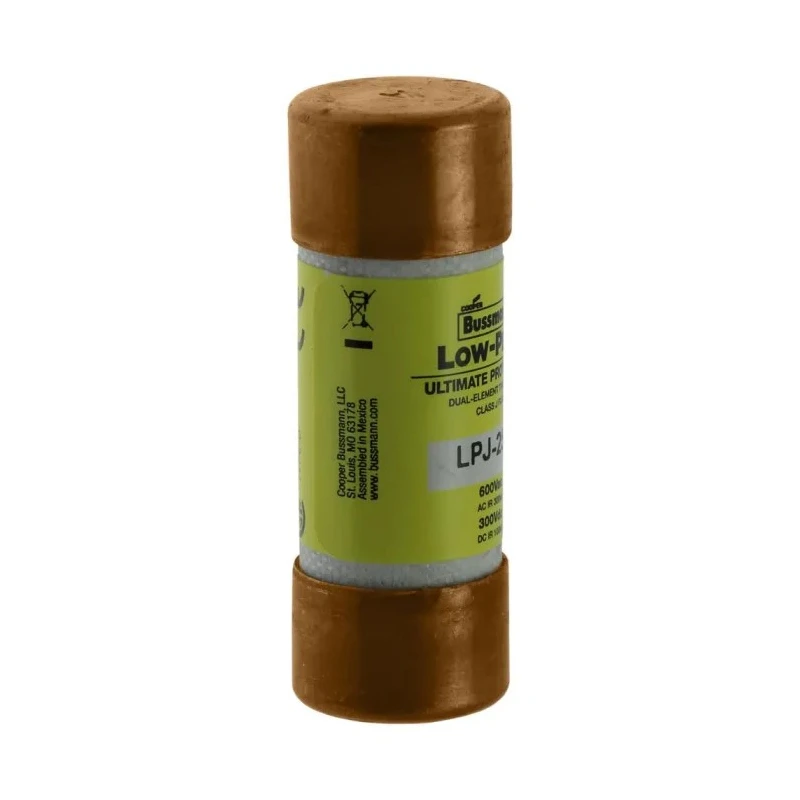

Eaton Time Delay Current Limiting Dual Element Fuse 25A 600V 57.15 mm x 20.57 mm x 20.57 mm LPJ-25SP

Free Delivery in India | Lowest Global Shipping Charges

Eaton Time Delay Current Limiting Dual Element Fuse 25A 600V 57.15 mm x 20.57 mm x 20.57 mm LPJ-25SP

Name: Eaton Time Delay Current Limiting Dual Element Fuse 25A 600V 57.15 mm x 20.57 mm x 20.57 mm LPJ-25SP
Brand: Eaton
SKU: 382009
Price: 36.86 USD
Availability: InStock



Category Fuse Brand Eaton Condition New

Specifications

Country of Origin	Mexico
Voltage	600V
Diameter	20.57mm
Brand	Eaton
Height	0.81in
Length	2.25in
Model	LPJ-25SP
Width	0.81in
Current Rating	25A
Series	LPJ
Fuse Type	Time Delay
Fuse Characteristics	Time Delay, Current Limiting, Dual Element
Fuse Size	57.15 mm x 20.57 mm x 20.57 mm

Key Features

This fuse is designed with a time-delay characteristic to allow short inrush currents without nuisance trips.
Dual-element current limiting construction reduces peak fault energy and incident energy during faults.
High rupture capacity supports operation under severe fault conditions up to 600 volts.
Physical dimensions of 57.15 mm by 20.57 mm by 20.57 mm ensure compatibility with standard cartridge fuse holders.
Ideal for motor starter protection, industrial switchgear branch circuits, and protection of control transformers and loads.
Manufactured to provide thermal coordination in electrical distribution systems with T-speed rating.
Cartridge-style unit with 2.25 inches overall length and 0.81 inches width and height.

Product Description

Eaton LPJ-25SP is a time delay, current limiting, dual-element fuse rated at 25 amperes and 600 volts. It is designed to provide overcurrent protection for industrial electrical circuits while allowing temporary current surges typically experienced during motor starts. The fuse's time-delay characteristic prevents nuisance trips in cases of short-duration inrush current.

The fuse features a high rupture capacity that allows it to safely interrupt severe fault currents, making it suitable for demanding industrial applications. Its dual-element design further limits peak fault energy, reducing potential damage to downstream components and enhancing system safety.

The physical form factor measures 57.15 mm length by 20.57 mm width and depth, with an overall length of 2.25 inches and height and width of 0.81 inches, ensuring easy installation into compatible holders and fuse blocks.

Applications include protection of motor starters in automation panels, branch circuit protection within industrial switchgear, and safeguarding control transformers and various loads. It supports thermal coordination with a T-speed rating suitable for many electrical distribution systems.

This fuse permits short inrush without nuisance trips due to time-delay functionality. Dual-element design curbs peak fault energy levels effectively. Current limiting action reduces incident energy during electrical faults.

High rupture capacity allows continued operation under severe fault conditions. Compact cartridge style supports easy installation and replacement. Designed for industrial and manufacturing plant electrical system protection.

Manufactured in Mexico ensuring quality and reliability.

Eaton's LPJ-25SP fuse is an essential component for industrial electrical safety and equipment protection. Explore more Fuses and electrical protection devices in the EnvMart electronics and electrical category for your industrial needs.
