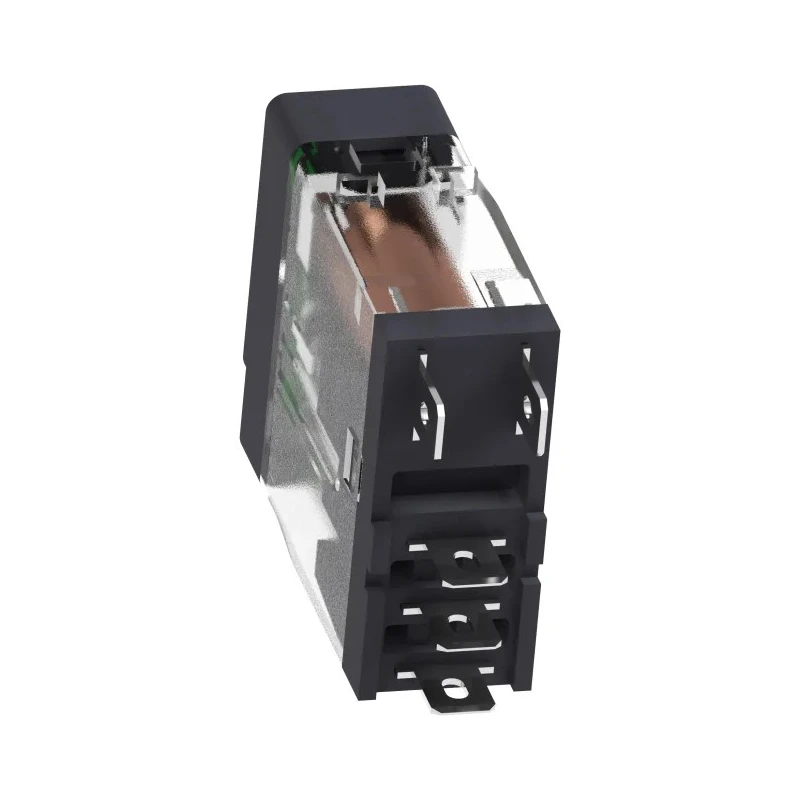

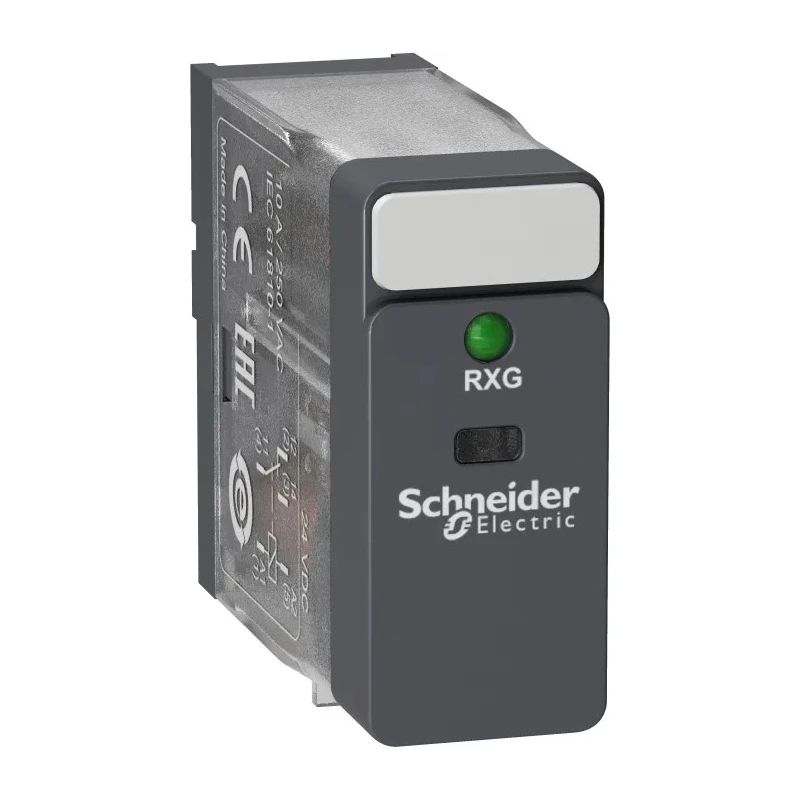

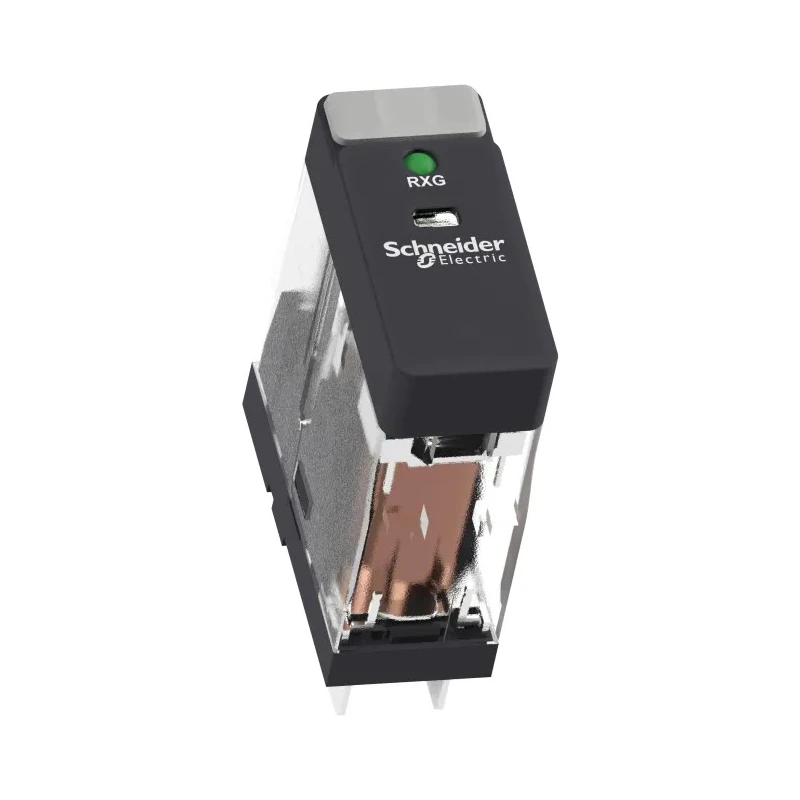

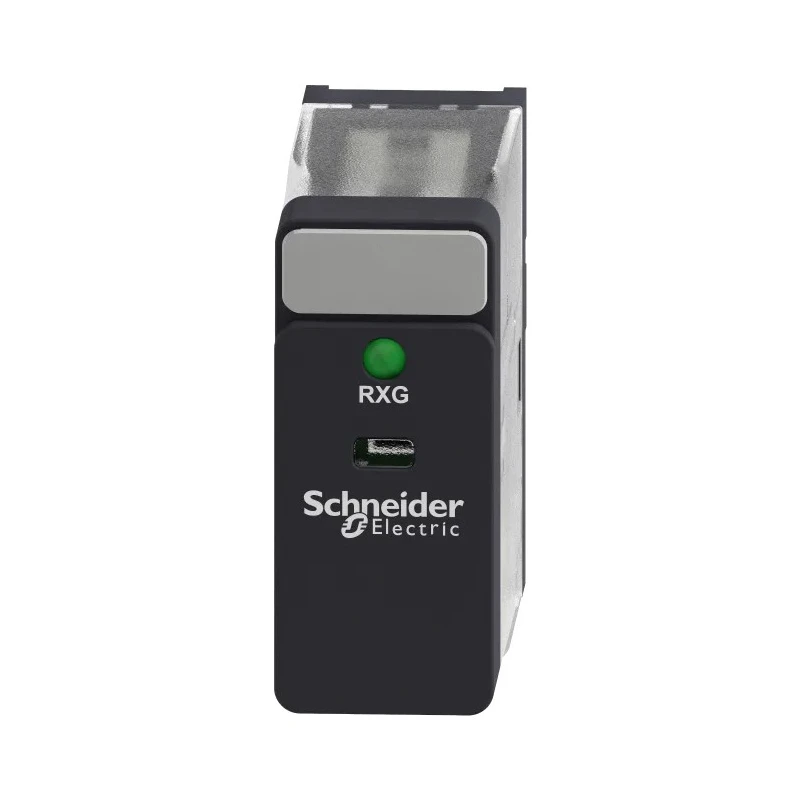

Schneider Electric Power Relay, 12V DC Coil, 10A Switching Current, SPDT, Harmony Relay RXG RXG13JD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 37.1mm |
| Length | 13mm |
| Model | RXG13JD |
| Width | 30.6mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 270Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
| Better World Claim | Designed for Disassembly |
Key Features
- Operates with a coil voltage of 12V DC, suitable for low voltage control systems.
- Single Pole Double Throw (SPDT) contact configuration offers reliable switching performance.
- Supports switching current up to 10A, enabling handling of moderate power loads.
- Compact design with dimensions approximately 37.1mm (H) x 30.6mm (W) x 13mm (L) for space-efficient panel mounting.
- Constructed with silver alloy contact material ensuring low contact resistance of 100mΩ.
- Plug-In terminal type allows easy and secure installation and replacement.
- Wide operating temperature range from -40°C up to 70°C for durable use in varied environments.
- Certified to CSA and CE standards ensuring safety and compliance.
Product Description
Schneider Electric RXG13JD Power Relay is a robust and reliable industrial relay equipped with a 12V DC coil and a 10A switching current rating. It features a Single Pole Double Throw (SPDT) contact configuration, making it ideal for diverse electrical control applications in automation and industrial systems.
This Harmony RXG series plug-in relay offers compact dimensions of 37.1mm height, 30.6mm width, and 13mm length, allowing integration into tight spaces and panel mountings. Crafted with silver alloy contacts, it maintains low contact resistance of 100mΩ, providing effective current flow with minimal loss.
The relay is designed with convenient Plug-In terminals for quick and secure installation, enhancing serviceability. It operates efficiently within a broad temperature range from -40°C to 70°C, suitable for demanding environment conditions typically found in industrial settings.
Its coil resistance of 270Ω and low coil power of 530mW support energy-efficient control circuits. Certified by CSA and CE, the RXG13JD complies with international safety and performance standards.
As part of Schneider Electric's Better World program, this relay is designed for responsible disassembly and sustainability, promoting eco-friendly industrial practices. Operates at 12V DC coil voltage with 10A switching current rating.
SPDT contact configuration supports multiple control functions. Compact, durable construction with silver alloy contacts. Wide operating temperature range from -40°C to 70°C. Plug-In terminal type enables easy installation and replacement.
Low coil power consumption ensures energy efficiency. Certified to international CSA and CE standards. Designed for disassembly in line with environmental responsibility goals. Provides reliable and efficient switching for industrial automation applications.
Manufactured in China under Schneider Electric quality standards. Explore the full range of Schneider Electric industrial electrical products and relays on EnvMart to enhance your automation and control systems with high-quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXG13JD power relay operates with a coil voltage of 12V DC.
This model supports a maximum switching current of 10A.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The dimensions of this relay are approximately 37.1mm in height, 30.6mm in width, and 13mm in length.
The contact material of this relay is silver alloy, which ensures low contact resistance.
The RXG13JD operates efficiently within a temperature range from -40°C to 70°C.
It uses a Plug-In terminal type, allowing for easy and secure installation.
The contact resistance of this relay is 100mΩ.
The RXG13JD relay is certified to CSA and CE standards, ensuring safety and compliance with international standards.
The coil resistance of the RXG13JD is 270Ω.
The coil power consumption for this model is 530mW.
This relay can switch DC voltage up to 30V and AC voltage up to 250V.
