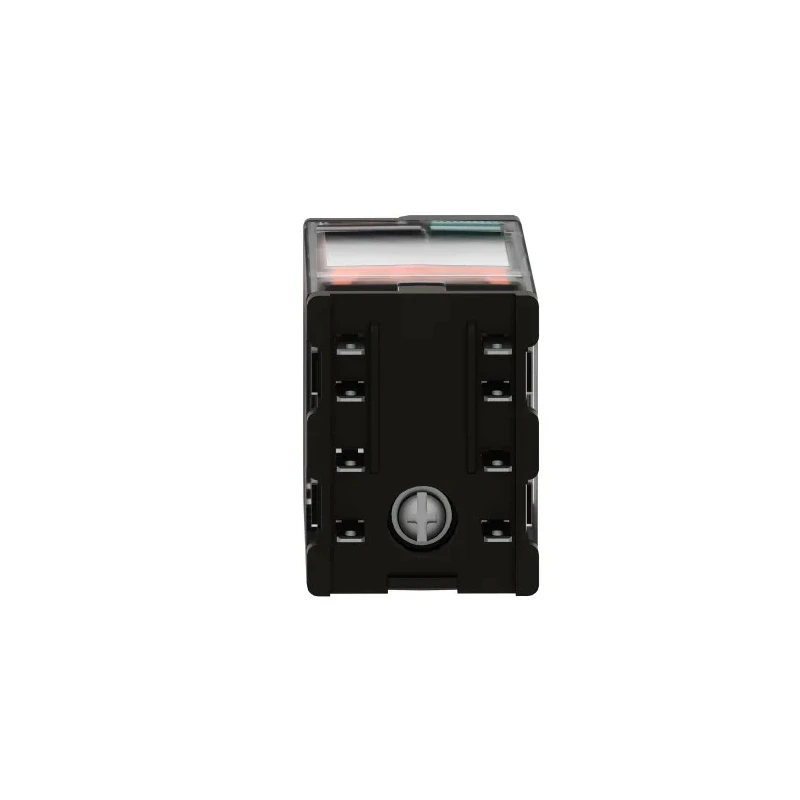

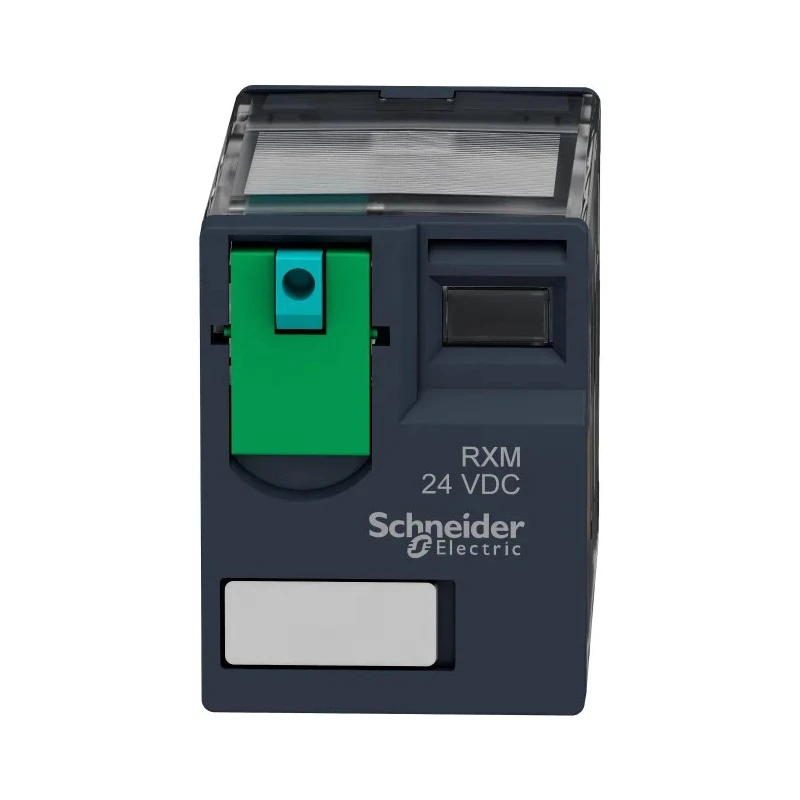

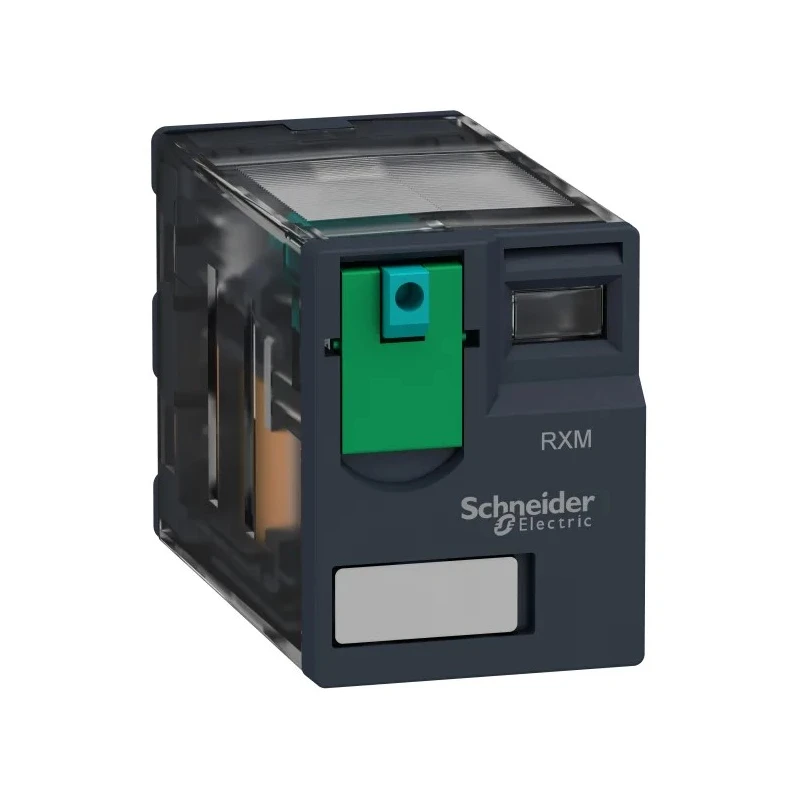

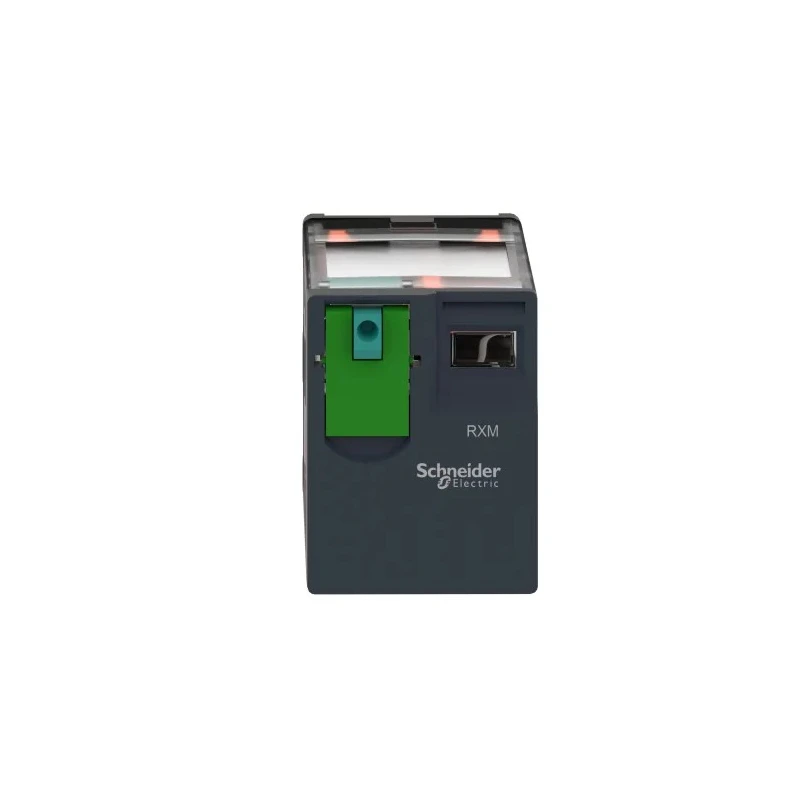

Schneider Electric Power Relay, 24V dc Coil, 12A Switching Current, DPDT Configuration, Harmony Relay RXM Series RXM2AB1BD

Schneider Electric RXM2AB1BD Power Relay is a versatile and compact device designed for use in industrial automation and electrical control panels. This power relay features a 24V DC coil and supports a switching current of 12A with a reliable DPDT (Double-Pole Double-Throw) contact configuration. It belongs to the reputed Harmony Relay RXM series known for robust performance and quality.

The relay is engineered for challenging environments with a minimum operating temperature of -40°C and a maximum of 55°C. Its silver alloy contacts provide excellent conductivity and long service life. The plug-in terminal design facilitates quick replacement and integration on DIN rails or screw-mounted bases (sold separately), enabling easy setup in various electrical enclosures.

Dimensionally compact (21mm length, 27mm height, and 47.7mm width), the relay fits efficiently within limited space control equipment. The coil resistance is 650 ohms, consuming 900mW power, ensuring energy-efficient operation.

Certified for CSA and CE standards, this relay complies with international quality requirements, making it suitable for global industrial and HVAC applications. Its switching power capacity of up to 3kVA and switching AC voltage rating of 250V AC enable it to handle a wide range of electrical loads.

The coil voltage of 24V DC ensures precise and stable actuation. DPDT configuration supports diverse switching needs for machine automation. Compact size promotes versatile mounting in electrical panels. Silver alloy contacts enhance conductivity and longevity.

Robust performance across temperature extremes and mechanical endurance. Plug-in terminals offer user-friendly installation and maintenance. Conforms to CSA and CE standards for safety and reliability.

This Schneider Electric Power Relay RXM2AB1BD is ideal for integration in industrial automation systems, electrical control cabinets, HVAC control units, manufacturing equipment, and other commercial and industrial electrical applications. Its quality construction and compliance with international approvals ensure dependable operation and long service life.
