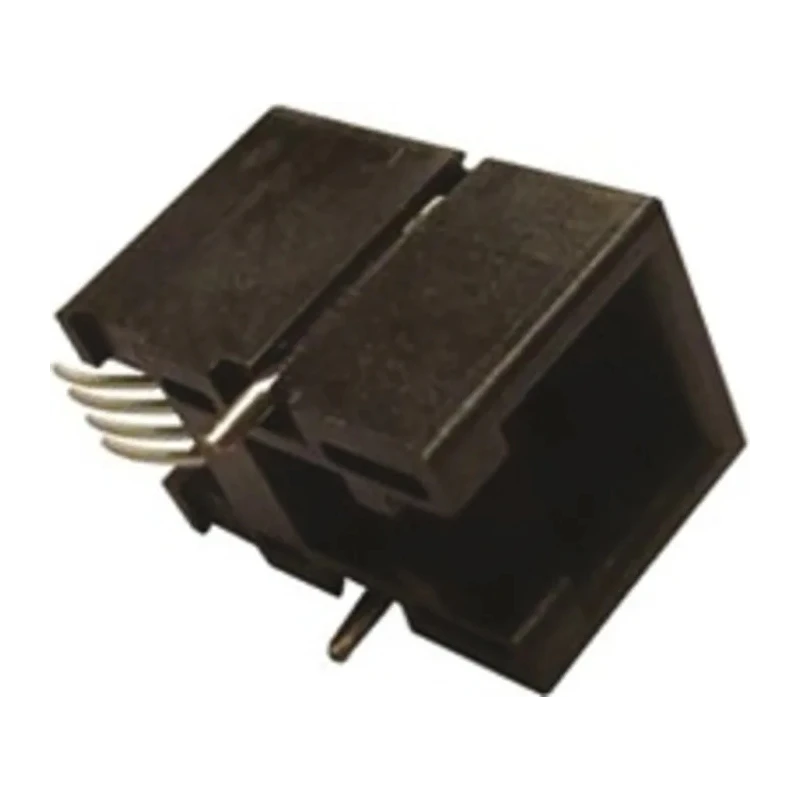

Molex RJ11 Female Modular Jack Cat3 Unshielded Right Angle 2 Port 4 Way Surface Mount Connector
Specifications
| Country of Origin | Ireland |
|---|---|
| Brand | Molex |
| Orientation | Right Angle |
| Length | 18.1mm |
| Model | RJ11 |
| Depth | 11.08mm |
| Connector Type | Modular Jack |
| Number Of Ways | 4 |
| Width | 11.5mm |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 85502 |
| Number Of Ports | 2 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Unshielded |
| Contact Plating | Gold over Nickel |
| Connector Gender | Female |
| LAN Category | Cat3 |
| Ethernet Connector Type | RJ11 |
Key Features
- Supports Category 3 (Cat3) LAN for telecommunications use.
- Unshielded modular jack with right angle orientation for surface mounting.
- Features two ports and four ways suitable for compact PCB integration.
- Constructed with copper alloy contacts plated with gold over nickel for reliable conductivity.
- Operating temperature range from -40°C to 85°C ensures durability in varied environments.
- Termination type is solder for secure and stable connection.
- Non-magnetic design and no LED or light pipes included.
- Compliant with 85502 series standards with a robust thermoplastic housing rated UL 94V-0.
Product Description
Molex RJ11 RJ11 Connector Female Modular Jack model 85502-5009 is a surface mount connector designed for Category 3 (Cat3) networking and telecommunications applications. It provides two ports and four ways with a compact right angle unshielded modular jack design optimized for PCB installations.
Made with high-quality copper alloy contacts plated with gold over nickel, these connectors offer excellent electrical reliability and corrosion resistance. The connector housing is black, constructed from UL 94V-0 rated thermoplastic material, ensuring flame retardancy and a low profile of 11.5 mm for space-efficient design.
The connector supports operation over a temperature range of -40°C to 85°C, making it suitable for industrial and commercial electronics environments. Termination is achieved via solder type for durability and consistent performance. The right angle orientation allows for neat cable routing and mounting on flat PCB surfaces.
This Molex 85502 series connector is unshielded and does not feature magnetic components, LEDs, or light pipes, focusing on essential connectivity with high reliability. Its compact size with 18.1 mm length, 11.5 mm width, and 11.08 mm depth allows integration into tight design architectures for electronic and telecom systems.
Supports Category 3 networking and telecom applications. Unshielded RJ11 female modular jack with right angle orientation. Two ports and four ways facilitate multiple connection points. Gold over nickel plated copper alloy contacts for enhanced conductivity.
UL 94V-0 thermoplastic housing ensures fire safety and durability. Wide temperature range operation from -40°C to 85°C. Solder termination type for secure PCB mounting. Compact form factor for optimized PCB space utilization.
Manufactured in Ireland ensuring high-quality standards.
This connector is ideal for industrial telecommunications, electronics manufacturing, and networking hardware applications requiring reliable low profile RJ11 connectivity solutions. Explore more quality Ethernet Connectors by Molex at EnvMart for your electronics assembly and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is from -40°C to 85°C, making it suitable for various environments.
This connector features two ports, allowing for multiple connection points in compact designs.
It uses a solder termination type for secure and stable connections on printed circuit boards (PCBs).
The dimensions of this model are 18.1 mm in length, 11.5 mm in width, and 11.08 mm in depth.
The contacts are made from copper alloy and are plated with gold over nickel for enhanced conductivity and corrosion resistance.
This model is unshielded, focusing on essential connectivity without magnetic components.
The connector has a right angle orientation, which facilitates neat cable routing and mounting on flat surfaces.
It supports Category 3 (Cat3) LAN for telecommunications applications.
This model is manufactured in Ireland, ensuring adherence to high-quality standards.
This connector belongs to the 85502 series, which is designed for specific networking applications.
This model provides four ways, suitable for compact PCB integration.
It is ideal for industrial telecommunications, electronics manufacturing, and networking hardware applications requiring reliable RJ11 connectivity.
