TRACOPOWER 40W Switching Power Supply 12V Chassis Mount, Medical Safety Certified TPP 40-112

Free Delivery in India | Lowest Global Shipping Charges

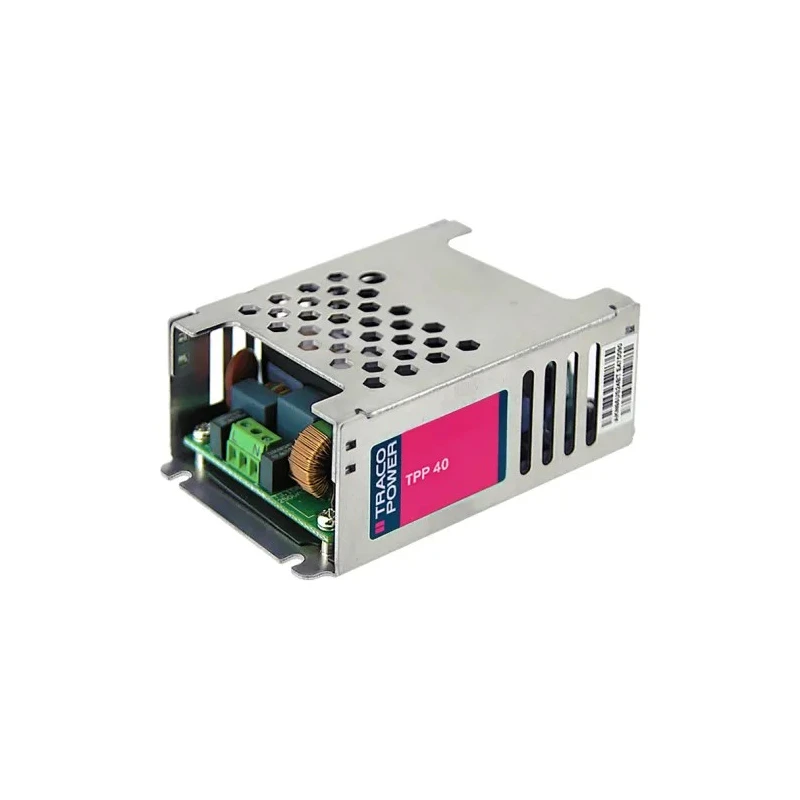

TRACOPOWER 40W Switching Power Supply 12V Chassis Mount, Medical Safety Certified TPP 40-112

Name: TRACOPOWER 40W Switching Power Supply 12V Chassis Mount, Medical Safety Certified TPP 40-112
Brand: TRACOPOWER
SKU: 381190
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	40W
Efficiency	92%
Model	TPP 40-112
Depth	34.5mm
Gross Weight	169g
Width	60.5mm
Mount Type	Chassis
Series	TPP 40
Maximum Operating Temperature	73°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V
Maximum Output Voltage	12V
SMPS Output Current	3.34A
Minimum Input Voltage	85V ac
2 x MOPP Medical safety according to AAMI/ANSI ES 60601-1	2005(R) and IEC/EN 60601-1 3rd edition

Key Features

This power supply features an input voltage range of 85 to 264Vac.
It provides a maximum output current of 3.34A with a single output.
The device has an excellent efficiency of up to 92% enabling high power density.
Operation temperature range is broad from -40°C to 73°C with 80% load derating.
It includes built-in class B EMI filter and provides low leakage current.
Complies with the latest medical safety standards with 2 x MOPP isolation.
Ideal for demanding safety and space-critical medical and industrial applications.

Product Description

TRACOPOWER TPP 40-112 is a 40 watt switching power supply that offers a chassis mount format with a regulated 12V output. This model conforming to medical safety standards provides 2 x MOPP isolation complying with ANSI/AAMI ES 60601-1 and IEC 60601-1 third edition. It operates efficiently up to 92% across its load range which supports compact and reliable power delivery.

The power supply accepts a wide input voltage from 85V to 264V AC, ensuring versatility in global applications. It is rated for an output current of 3.34A on a single output line. The operating temperature range is extensive from -40°C to +73°C with 80% load derating at maximum temperature, suitable for harsh and critical environments.

Additionally, the device includes a built-in class B EMI filter lowering electromagnetic interference and reducing leakage current for safety. Its compact dimensions of 60.5mm width and 34.5mm depth, along with a lightweight of 169 grams, make this unit ideal for applications where space and weight are considerations.

The TPP 40 series is designed primarily for medical and industrial uses requiring demanding safety standards, power density, and reliability. Compliance with multiple international safety standards underscores its suitability for these specialized environments.

This power supply is certified for medical applications ensuring high safety levels. Offers wide voltage input compatibility to accommodate international mains voltages. High efficiency reduces energy losses and thermal buildup.

Compact size facilitates easy integration into electronic assemblies. Lightweight design aids in portable and space-constrained device applications. Reliable performance over a wide temperature range enables use in challenging conditions.

Supports medical equipment, industrial machines, and automation requiring safe power supplies. Explore more high-quality Switching Power Supplies and trusted TRACOPOWER products at EnvMart for your industrial, medical, and electronic design needs.
