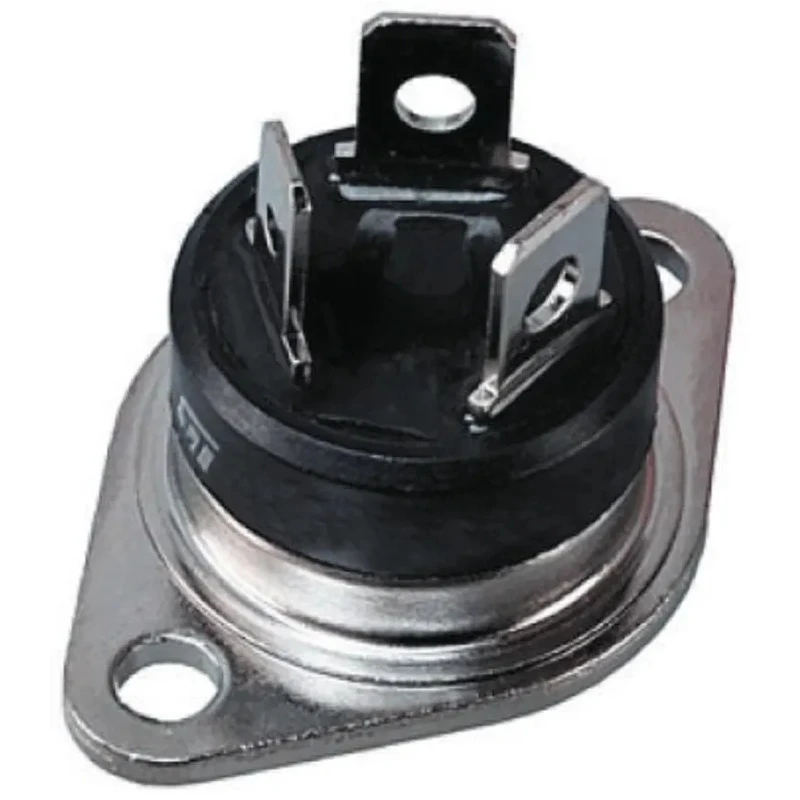

STMicroelectronics Panel Mount 3-Pin TRIAC 25A 800V Gate Trigger 1.3V BTA25-600B
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 14mm |
| Length | 40mm |
| Model | BTA25-600B |
| Mount Type | Panel |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | RD-91 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 25A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 260A |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 80mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 3mA |
| Peak Gate Power Dissipation | 1W |
Key Features
- The TRIAC offers a maximum gate trigger voltage of 1.3V and a gate trigger current of 100mA.
- It is configured as a single device with 3 pins, suitable for panel mounting installation.
- The surge current rating is 260A, handling brief high current conditions effectively.
- The component operates reliably between -40°C and 125°C operating temperatures.
- The package type is RD-91, with dimensions of 40mm length and 14mm height providing compact integration.
- The maximum holding current is 80mA with a peak gate power dissipation rating of 1W.
- This device exhibits a peak on-state voltage of 1.55V and low repetitive peak off-state current of 3mA.
- It is not certified under automotive standards and does not have special approvals.
Product Description
STMicroelectronics BTA25-600B is a panel mount 3-pin TRIAC designed for controlling AC power in various industrial and electronic applications. It supports an average on-state current of 25 amperes and can withstand a repetitive peak reverse voltage of 800 volts, making it suitable for switching and phase control in motors, heaters, and lighting controls.
The device features a gate trigger voltage of 1.3 volts and a gate trigger current of 100 milliamperes, enabling responsive and stable triggering. Its surge current rating of 260 amperes ensures durability during transient high current events typical in industrial power loads.
With robust operational temperature capability from -40°C to 125°C, it withstands harsh environments commonly encountered in manufacturing and HVAC systems. The package type RD-91, with physical dimensions of 40mm in length and 14mm in height, allows easy panel mounting and integration into control panels and assemblies.
This TRIAC’s low peak on-state voltage (1.55V) and minimal repetitive peak off-state current (3mA) promote energy efficiency and minimize power losses. It is configured as a single 3-pin device allowing straightforward connection to external control circuitry.
The product is engineered for industrial, commercial electrical control circuits and power management in applications such as motor speed control, light dimming, and heating systems. Despite lacking specific automotive certifications, it meets demanding standard requirements for quality and reliability.
The TRIAC offers a maximum gate trigger voltage of 1.3V and a gate trigger current of 100mA. It supports a surge current rating of 260A for transient conditions. Operates effectively within a temperature range of -40°C to 125°C.
Compact RD-91 package with panel mounting type and 3 pins. Designed for AC power control in industrial and commercial equipment. Explore more STMicroelectronics TRIACs and discrete semiconductor products at EnvMart for reliable electronic component solutions tailored to your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum rated average on-state current for this model is 25 amperes.
This TRIAC has a surge current rating of 260 amperes, allowing it to handle brief high current conditions effectively.
The maximum gate trigger voltage for this TRIAC is 1.3 volts.
The RD-91 package has a length of 40mm and a height of 14mm.
This TRIAC operates reliably within a temperature range of -40°C to 125°C.
The peak on-state voltage of this model is 1.55 volts.
The maximum holding current for this TRIAC is 80 milliamperes.
The maximum gate trigger current for this TRIAC is 100 milliamperes.
This model is designed for controlling AC power in applications such as motor speed control, light dimming, and heating systems.
Yes, the BTA25-600B is configured for panel mounting installation with its 3-pin design.
The repetitive peak reverse voltage rating for this model is 800 volts.
No, this device is not certified under automotive standards and does not have special approvals.
